Datasheet LT3032 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Dual 150mA Positive/Negative Low Noise Low Dropout Linear Regulator |
| Pages / Page | 24 / 4 — ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply … |
| File Format / Size | PDF / 410 Kb |
| Document Language | English |
ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LT3032EDE#PBF LT3032EDE#TRPBF LT3032EDE-12#PBF LT3032EDE-12#TRPBF LT3032EDE-15#PBF LT3032EDE-15#TRPBF LT3032EDE-3.3#PBF LT3032EDE-3.3#TRPBF LT3032EDE-5#PBF LT3032EDE-5#TRPBF LT3032IDE#PBF LT3032IDE#TRPBF LT3032IDE-12#PBF LT3032IDE-12#TRPBF LT3032IDE-15#PBF LT3032IDE-15#TRPBF LT3032IDE-3.3#PBF LT3032IDE-3.3#TRPBF LT3032IDE-5#PBF LT3032IDE-5#TRPBF LT3032MPDE#PBF LT3032MPDE#TRPBF LT3032MPDE-12#PBF LT3032MPDE-12#TRPBF LT3032MPDE-15#PBF LT3032MPDE-15#TRPBF LT3032MPDE-3.3#PBF LT3032MPDE-3.3#TRPBF LT3032MPDE-5#PBF LT3032MPDE-5#TRPBF
Text Version of Document
LT3032 Series

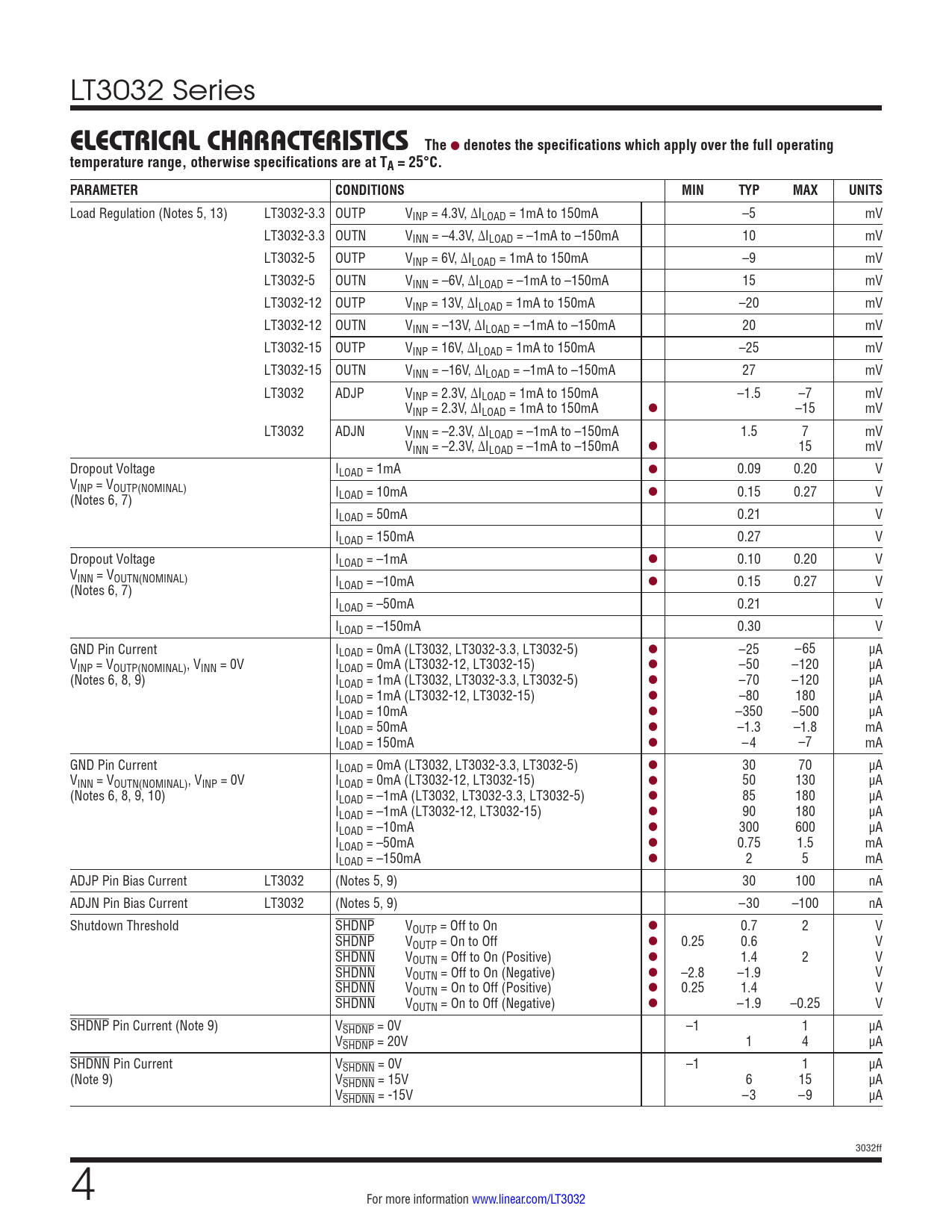

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Load Regulation (Notes 5, 13) LT3032-3.3 OUTP VINP = 4.3V, ΔILOAD = 1mA to 150mA –5 mV LT3032-3.3 OUTN VINN = –4.3V, ΔILOAD = –1mA to –150mA 10 mV LT3032-5 OUTP VINP = 6V, ΔILOAD = 1mA to 150mA –9 mV LT3032-5 OUTN VINN = –6V, ΔILOAD = –1mA to –150mA 15 mV LT3032-12 OUTP VINP = 13V, ΔILOAD = 1mA to 150mA –20 mV LT3032-12 OUTN VINN = –13V, ΔILOAD = –1mA to –150mA 20 mV LT3032-15 OUTP VINP = 16V, ΔILOAD = 1mA to 150mA –25 mV LT3032-15 OUTN VINN = –16V, ΔILOAD = –1mA to –150mA 27 mV LT3032 ADJP VINP = 2.3V, ΔILOAD = 1mA to 150mA –1.5 –7 mV VINP = 2.3V, ΔILOAD = 1mA to 150mA l –15 mV LT3032 ADJN VINN = –2.3V, ΔILOAD = –1mA to –150mA 1.5 7 mV VINN = –2.3V, ΔILOAD = –1mA to –150mA l 15 mV Dropout Voltage ILOAD = 1mA l 0.09 0.20 V VINP = VOUTP(NOMINAL) (Notes 6, 7) ILOAD = 10mA l 0.15 0.27 V ILOAD = 50mA 0.21 V ILOAD = 150mA 0.27 V Dropout Voltage ILOAD = –1mA l 0.10 0.20 V VINN = VOUTN(NOMINAL) (Notes 6, 7) ILOAD = –10mA l 0.15 0.27 V ILOAD = –50mA 0.21 V ILOAD = –150mA 0.30 V GND Pin Current ILOAD = 0mA (LT3032, LT3032-3.3, LT3032-5) l –25 –65 µA VINP = VOUTP(NOMINAL), VINN = 0V ILOAD = 0mA (LT3032-12, LT3032-15) l –50 –120 µA (Notes 6, 8, 9) ILOAD = 1mA (LT3032, LT3032-3.3, LT3032-5) l –70 –120 µA ILOAD = 1mA (LT3032-12, LT3032-15) l –80 180 µA ILOAD = 10mA l –350 –500 µA ILOAD = 50mA l –1.3 –1.8 mA ILOAD = 150mA l –4 –7 mA GND Pin Current ILOAD = 0mA (LT3032, LT3032-3.3, LT3032-5) l 30 70 µA VINN = VOUTN(NOMINAL), VINP = 0V ILOAD = 0mA (LT3032-12, LT3032-15) l 50 130 µA (Notes 6, 8, 9, 10) ILOAD = –1mA (LT3032, LT3032-3.3, LT3032-5) l 85 180 µA ILOAD = –1mA (LT3032-12, LT3032-15) l 90 180 µA ILOAD = –10mA l 300 600 µA ILOAD = –50mA l 0.75 1.5 mA ILOAD = –150mA l 2 5 mA ADJP Pin Bias Current LT3032 (Notes 5, 9) 30 100 nA ADJN Pin Bias Current LT3032 (Notes 5, 9) –30 –100 nA Shutdown Threshold SHDNP VOUTP = Off to On l 0.7 2 V SHDNP VOUTP = On to Off l 0.25 0.6 V SHDNN VOUTN = Off to On (Positive) l 1.4 2 V SHDNN VOUTN = Off to On (Negative) l –2.8 –1.9 V SHDNN VOUTN = On to Off (Positive) l 0.25 1.4 V SHDNN VOUTN = On to Off (Negative) l –1.9 –0.25 V SHDNP Pin Current (Note 9) VSHDNP = 0V –1 1 µA VSHDNP = 20V 1 4 µA SHDNN Pin Current VSHDNN = 0V –1 1 µA (Note 9) VSHDNN = 15V 6 15 µA VSHDNN = -15V –3 –9 µA 3032ff 4 For more information www.linear.com/LT3032 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Revision History Typical Application Related Parts
