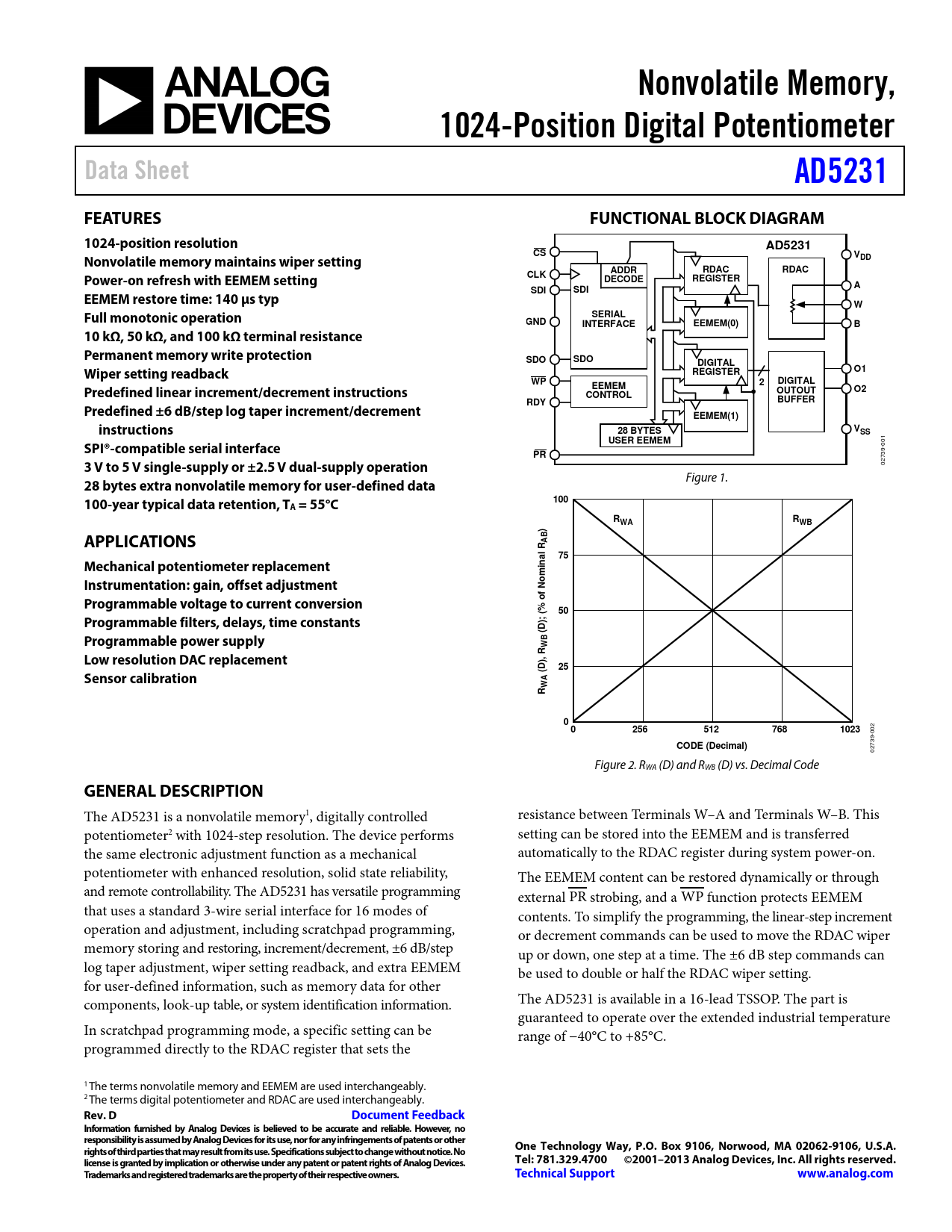

Nonvolatile Memory, 1024-Position Digital Potentiometer Data Sheet AD5231 FEATURES FUNCTIONAL BLOCK DIAGRAM 1024-position resolution AD5231 CS Nonvolatile memory maintains wiper setting VDD ADDR RDAC RDAC Power-on refresh with EEMEM setting CLK DECODE REGISTER A SDI SDI EEMEM restore time: 140 µs typ W Full monotonic operation SERIAL GND INTERFACE EEMEM(0) B 10 kΩ, 50 kΩ, and 100 kΩ terminal resistance Permanent memory write protection SDO SDO DIGITAL Wiper setting readback O1 REGISTER WP 2 DIGITAL Predefined linear increment/decrement instructions EEMEM OUTOUT O2 CONTROL RDY BUFFER Predefined ±6 dB/step log taper increment/decrement EEMEM(1) instructions V 28 BYTES SS SPI®-compatible serial interface USER EEMEM
001
PR 3 V to 5 V single-supply or ±2.5 V dual-supply operation
02739- Figure 1.
28 bytes extra nonvolatile memory for user-defined data 100-year typical data retention, T 100 A = 55°C R R WA WB ) APPLICATIONS AB R al 75 Mechanical potentiometer replacement n mi Instrumentation: gain, offset adjustment f No Programmable voltage to current conversion % o 50 Programmable filters, delays, time constants ; ( (D) Programmable power supply WB Low resolution DAC replacement R ), (D 25 Sensor calibration WAR 0 0 256 512 768 1023
002
CODE (Decimal)
02739- Figure 2. RWA (D) and RWB (D) vs. Decimal Code
GENERAL DESCRIPTION
The AD5231 is a nonvolatile memory1, digitally controlled resistance between Terminals W–A and Terminals W–B. This potentiometer2 with 1024-step resolution. The device performs setting can be stored into the EEMEM and is transferred the same electronic adjustment function as a mechanical automatically to the RDAC register during system power-on. potentiometer with enhanced resolution, solid state reliability, The EEMEM content can be restored dynamically or through and remote controllability. The AD5231 has versatile programming external PR strobing, and a WP function protects EEMEM that uses a standard 3-wire serial interface for 16 modes of contents. To simplify the programming, the linear-step increment operation and adjustment, including scratchpad programming, or decrement commands can be used to move the RDAC wiper memory storing and restoring, increment/decrement, ±6 dB/step up or down, one step at a time. The ±6 dB step commands can log taper adjustment, wiper setting readback, and extra EEMEM be used to double or half the RDAC wiper setting. for user-defined information, such as memory data for other components, look-up table, or system identification information. The AD5231 is available in a 16-lead TSSOP. The part is guaranteed to operate over the extended industrial temperature In scratchpad programming mode, a specific setting can be range of −40°C to +85°C. programmed directly to the RDAC register that sets the 1 The terms nonvolatile memory and EEMEM are used interchangeably. 2 The terms digital potentiometer and RDAC are used interchangeably.
