| Description | Low Dropout (LDO) Linear Voltage Regulator |
| Pages / Page | 11 / 3 — TCR5BM series. Pin Assignment (top view). List of Products Number, Output … |
| File Format / Size | PDF / 719 Kb |
| Document Language | English |
TCR5BM series. Pin Assignment (top view). List of Products Number, Output voltage and Marking. Top Marking. (top view). 1L0
Model Line for this Datasheet
- TCR5BM105A TCR5BM10A TCR5BM11A TCR5BM12A TCR5BM085A TCR5BM08A TCR5BM095A TCR5BM09A TCR5BM10 TCR5BM105 TCR5BM11 TCR5BM115A TCR5BM12 TCR5BM125A TCR5BM13A TCR5BM14A TCR5BM15A TCR5BM16A TCR5BM17A TCR5BM18A TCR5BM19A TCR5BM20A TCR5BM21A TCR5BM22A TCR5BM23A TCR5BM24A TCR5BM25A TCR5BM26A TCR5BM27A TCR5BM285A TCR5BM28A TCR5BM295A TCR5BM29A TCR5BM30A TCR5BM31A TCR5BM32A TCR5BM33A TCR5BM34A TCR5BM35A TCR5BM36A
Text Version of Document

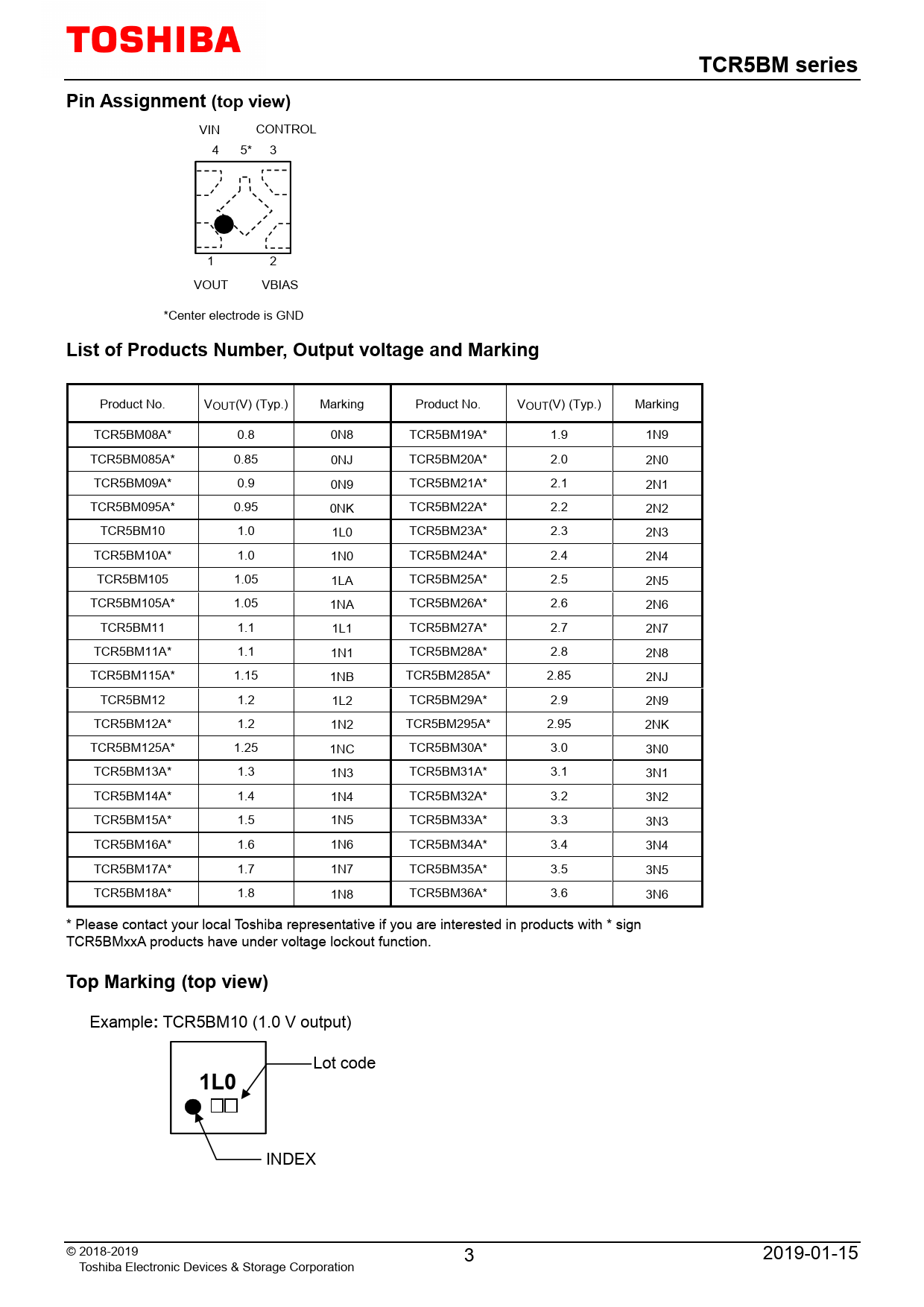

TCR5BM series Pin Assignment (top view)
VIN CONTROL 4 5 * 3 1 2 VOUT VBIAS *Center electrode is GND
List of Products Number, Output voltage and Marking
Product No. VOUT(V) (Typ.) Marking Product No. VOUT(V) (Typ.) Marking TCR5BM08A* 0.8 0N8 TCR5BM19A* 1.9 1N9 TCR5BM085A* 0.85 0NJ TCR5BM20A* 2.0 2N0 TCR5BM09A* 0.9 0N9 TCR5BM21A* 2.1 2N1 TCR5BM095A* 0.95 0NK TCR5BM22A* 2.2 2N2 TCR5BM10 1.0 1L0 TCR5BM23A* 2.3 2N3 TCR5BM10A* 1.0 1N0 TCR5BM24A* 2.4 2N4 TCR5BM105 1.05 1LA TCR5BM25A* 2.5 2N5 TCR5BM105A* 1.05 1NA TCR5BM26A* 2.6 2N6 TCR5BM11 1.1 1L1 TCR5BM27A* 2.7 2N7 TCR5BM11A* 1.1 1N1 TCR5BM28A* 2.8 2N8 TCR5BM115A* 1.15 1NB TCR5BM285A* 2.85 2NJ TCR5BM12 1.2 1L2 TCR5BM29A* 2.9 2N9 TCR5BM12A* 1.2 1N2 TCR5BM295A* 2.95 2NK TCR5BM125A* 1.25 1NC TCR5BM30A* 3.0 3N0 TCR5BM13A* 1.3 1N3 TCR5BM31A* 3.1 3N1 TCR5BM14A* 1.4 1N4 TCR5BM32A* 3.2 3N2 TCR5BM15A* 1.5 1N5 TCR5BM33A* 3.3 3N3 TCR5BM16A* 1.6 1N6 TCR5BM34A* 3.4 3N4 TCR5BM17A* 1.7 1N7 TCR5BM35A* 3.5 3N5 TCR5BM18A* 1.8 1N8 TCR5BM36A* 3.6 3N6 * Please contact your local Toshiba representative if you are interested in products with * sign TCR5BMxxA products have under voltage lockout function.
Top Marking (top view)
Example
:
TCR5BM10 (1.0 V output) Lot code
1L0
INDEX © 2018-2019 3 2019-01-15 Toshiba Electronic Devices & Storage Corporation
