Datasheet TCR8BM (Toshiba) - 7
| Manufacturer | Toshiba |
| Description | Low Dropout (LDO) Linear Voltage Regulator |
| Pages / Page | 11 / 7 — TCR8BM series. Application Note. 1. Example of Application Circuit. … |
| File Format / Size | PDF / 722 Kb |
| Document Language | English |

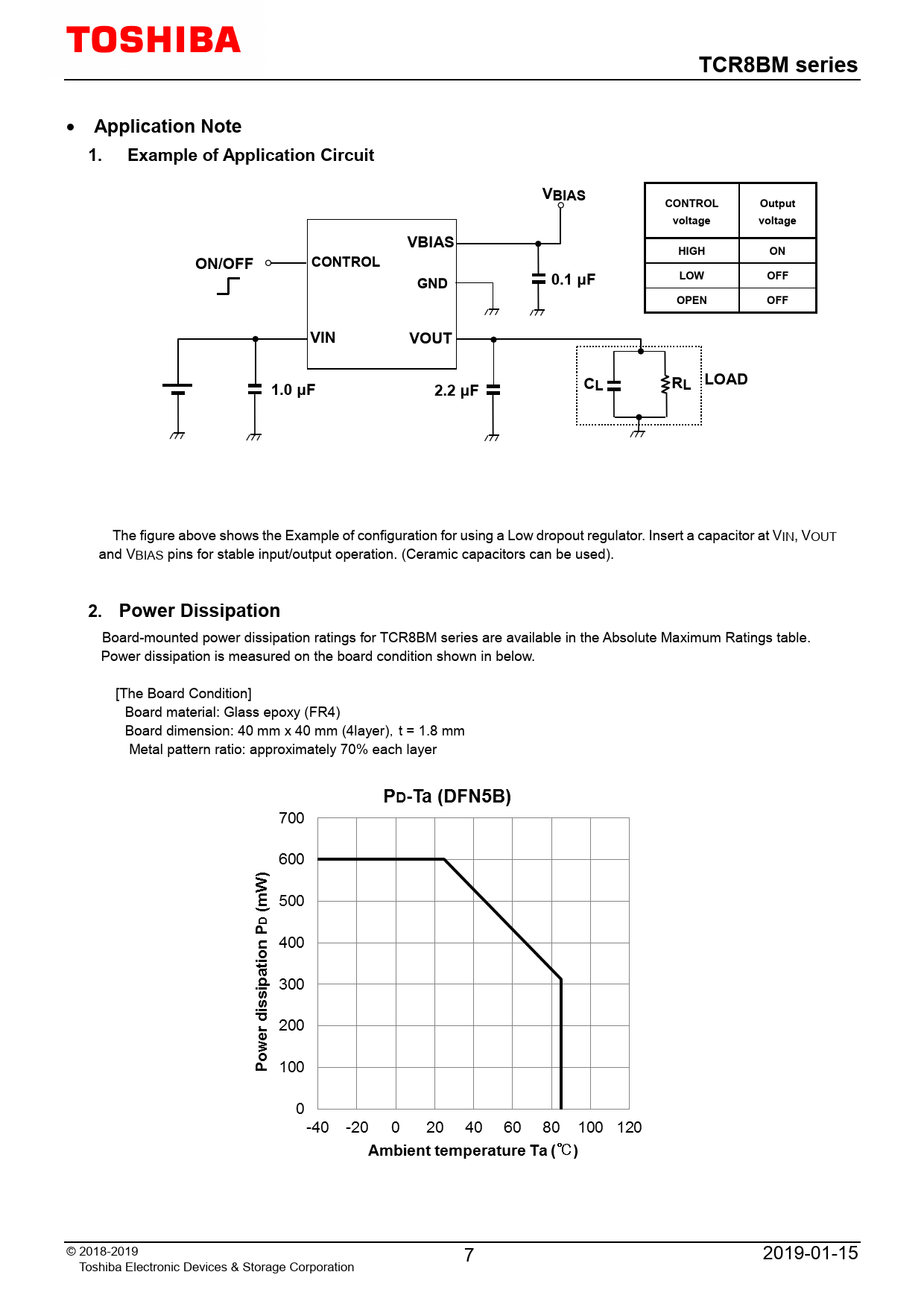

TCR8BM series. Application Note. 1. Example of Application Circuit. VBIAS. CONTROL. Output. voltage. HIGH. ON/OFF. 0.1 μF. LOW. OFF. GND. OPEN. VIN
Model Line for this Datasheet
- TCR8BM085A TCR8BM08A TCR8BM095A TCR8BM09A TCR8BM10 TCR8BM105 TCR8BM105A TCR8BM10A TCR8BM11 TCR8BM115A TCR8BM11A TCR8BM12 TCR8BM125A TCR8BM12A TCR8BM13A TCR8BM14A TCR8BM15A TCR8BM16A TCR8BM17A TCR8BM18A TCR8BM19A TCR8BM20A TCR8BM21A TCR8BM22A TCR8BM23A TCR8BM24A TCR8BM25A TCR8BM26A TCR8BM27A TCR8BM285A TCR8BM28A TCR8BM295A TCR8BM29A TCR8BM30A TCR8BM31A TCR8BM32A TCR8BM33A TCR8BM34A TCR8BM35A TCR8BM36A
Text Version of Document
TCR8BM series
•
Application Note 1. Example of Application Circuit VBIAS CONTROL Output voltage voltage VBIAS HIGH ON ON/OFF CONTROL 0.1 μF LOW OFF GND OPEN OFF VIN VOUT 1.0 μF CL RL LOAD 2.2 μF
The figure above shows the Example of configuration for using a Low dropout regulator. Insert a capacitor at VIN, VOUT and VBIAS pins for stable input/output operation. (Ceramic capacitors can be used).
2. Power Dissipation
Board-mounted power dissipation ratings for TCR8BM series are available in the Absolute Maximum Ratings table. Power dissipation is measured on the board condition shown in below. [The Board Condition] Board material: Glass epoxy (FR4) Board dimension: 40 mm x 40 mm (4layer)，t = 1.8 mm Metal pattern ratio: approximately 70% each layer © 2018-2019 7 2019-01-15 Toshiba Electronic Devices & Storage Corporation
•
Application Note 1. Example of Application Circuit VBIAS CONTROL Output voltage voltage VBIAS HIGH ON ON/OFF CONTROL 0.1 μF LOW OFF GND OPEN OFF VIN VOUT 1.0 μF CL RL LOAD 2.2 μF
The figure above shows the Example of configuration for using a Low dropout regulator. Insert a capacitor at VIN, VOUT and VBIAS pins for stable input/output operation. (Ceramic capacitors can be used).
2. Power Dissipation
Board-mounted power dissipation ratings for TCR8BM series are available in the Absolute Maximum Ratings table. Power dissipation is measured on the board condition shown in below. [The Board Condition] Board material: Glass epoxy (FR4) Board dimension: 40 mm x 40 mm (4layer)，t = 1.8 mm Metal pattern ratio: approximately 70% each layer © 2018-2019 7 2019-01-15 Toshiba Electronic Devices & Storage Corporation
