Datasheet TDC-GPX2 (AustriaMicroSystems) - 5
| Manufacturer | AustriaMicroSystems |
| Description | Time-to-Digital Converter High-end multipurpose 4-channel converter |
| Pages / Page | 77 / 5 — TDC-GPX2 −. Pin Description. Figure 5: Pin Description of TDC-GPX2. Pin … |
| Revision | 1-03 |
| File Format / Size | PDF / 1.4 Mb |
| Document Language | English |

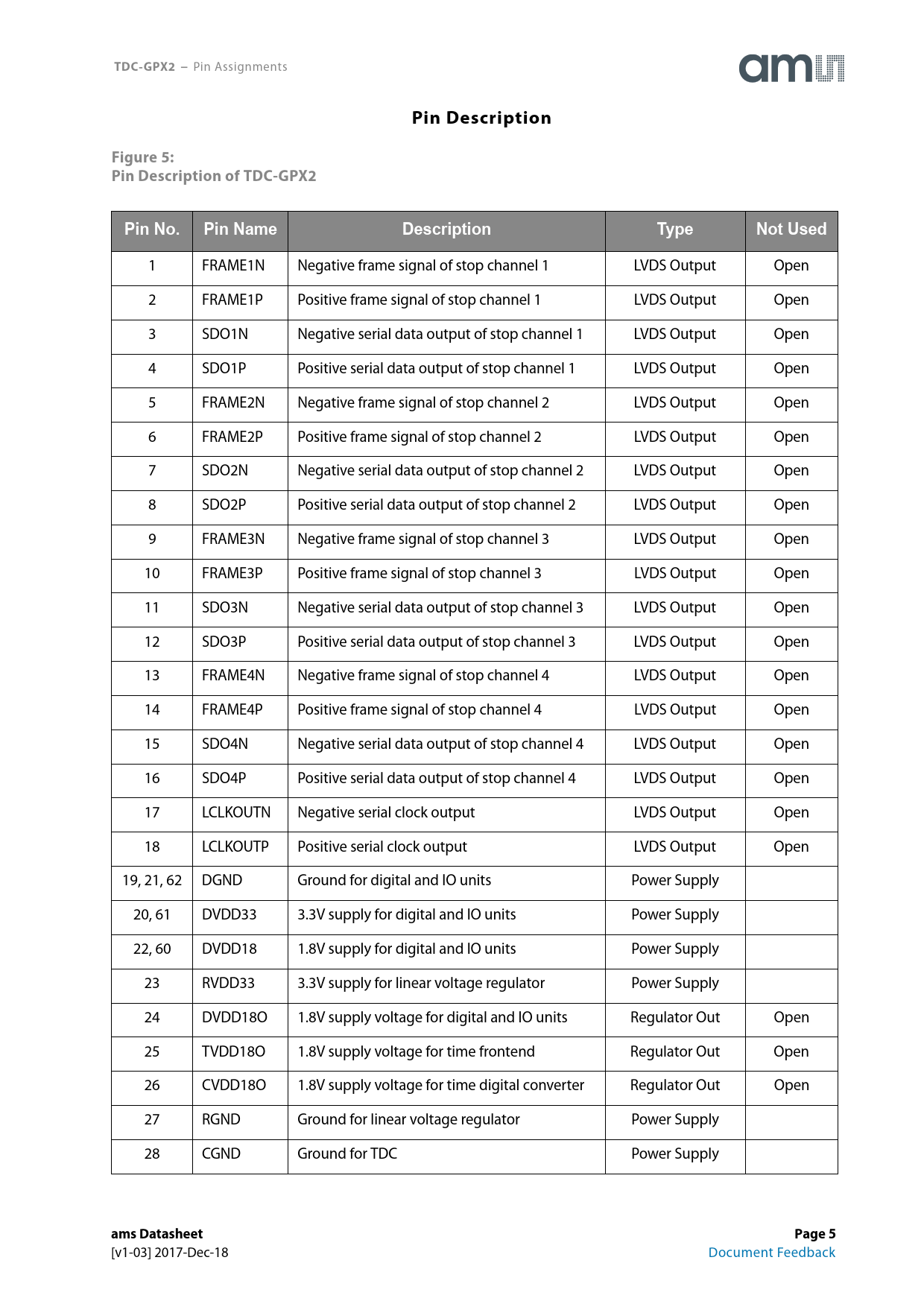

TDC-GPX2 −. Pin Description. Figure 5: Pin Description of TDC-GPX2. Pin No. Pin Name. Description. Type. Not Used. ams Datasheet. Page 5
Model Line for this Datasheet
Text Version of Document
TDC-GPX2 −
Pin Assignments
Pin Description Figure 5: Pin Description of TDC-GPX2 Pin No. Pin Name Description Type Not Used
1 FRAME1N Negative frame signal of stop channel 1 LVDS Output Open 2 FRAME1P Positive frame signal of stop channel 1 LVDS Output Open 3 SDO1N Negative serial data output of stop channel 1 LVDS Output Open 4 SDO1P Positive serial data output of stop channel 1 LVDS Output Open 5 FRAME2N Negative frame signal of stop channel 2 LVDS Output Open 6 FRAME2P Positive frame signal of stop channel 2 LVDS Output Open 7 SDO2N Negative serial data output of stop channel 2 LVDS Output Open 8 SDO2P Positive serial data output of stop channel 2 LVDS Output Open 9 FRAME3N Negative frame signal of stop channel 3 LVDS Output Open 10 FRAME3P Positive frame signal of stop channel 3 LVDS Output Open 11 SDO3N Negative serial data output of stop channel 3 LVDS Output Open 12 SDO3P Positive serial data output of stop channel 3 LVDS Output Open 13 FRAME4N Negative frame signal of stop channel 4 LVDS Output Open 14 FRAME4P Positive frame signal of stop channel 4 LVDS Output Open 15 SDO4N Negative serial data output of stop channel 4 LVDS Output Open 16 SDO4P Positive serial data output of stop channel 4 LVDS Output Open 17 LCLKOUTN Negative serial clock output LVDS Output Open 18 LCLKOUTP Positive serial clock output LVDS Output Open 19, 21, 62 DGND Ground for digital and IO units Power Supply 20, 61 DVDD33 3.3V supply for digital and IO units Power Supply 22, 60 DVDD18 1.8V supply for digital and IO units Power Supply 23 RVDD33 3.3V supply for linear voltage regulator Power Supply 24 DVDD18O 1.8V supply voltage for digital and IO units Regulator Out Open 25 TVDD18O 1.8V supply voltage for time frontend Regulator Out Open 26 CVDD18O 1.8V supply voltage for time digital converter Regulator Out Open 27 RGND Ground for linear voltage regulator Power Supply 28 CGND Ground for TDC Power Supply
