Datasheet VOT8123AB, VOT8123AD, VOT8123AG (Vishay) - 7
| Manufacturer | Vishay |
| Description | Optocoupler, Phototriac Output, Non-Zero Crossing, High dV/dt, Low Input Current |
| Pages / Page | 11 / 7 — VOT8123AB, VOT8123AD, VOT8123AG. SMD-6. PACKAGE MARKING. Notes |
| Revision | 1.1 |
| File Format / Size | PDF / 186 Kb |
| Document Language | English |
VOT8123AB, VOT8123AD, VOT8123AG. SMD-6. PACKAGE MARKING. Notes
Model Line for this Datasheet
Text Version of Document
VOT8123AB, VOT8123AD, VOT8123AG
www.vishay.com Vishay Semiconductors

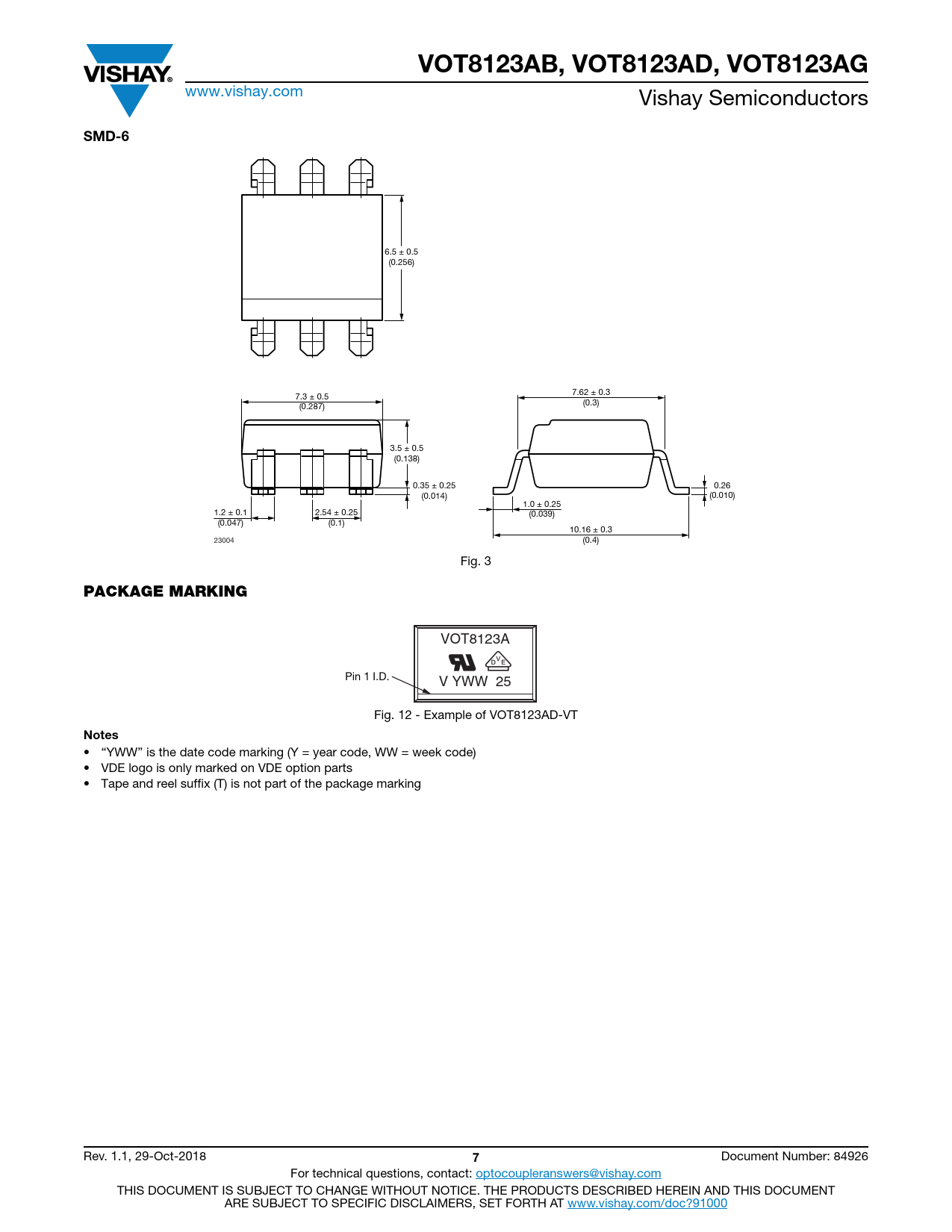

SMD-6
6.5 ± 0.5 (0.256) 7.62 ± 0.3 7.3 ± 0.5 (0.3) (0.287) 3.5 ± 0.5 (0.138) 0.35 ± 0.25 0.26 (0.014) (0.010) 1.0 ± 0.25 1.2 ± 0.1 2.54 ± 0.25 (0.039) (0.047) (0.1) 10.16 ± 0.3 23004 (0.4) Fig. 3
PACKAGE MARKING
VOT8123A Pin 1 I.D. V YWW 25 Fig. 12 - Example of VOT8123AD-VT
Notes
• “YWW” is the date code marking (Y = year code, WW = week code) • VDE logo is only marked on VDE option parts • Tape and reel suffix (T) is not part of the package marking Rev. 1.1, 29-Oct-2018
