Datasheet MMBT3906 (Diodes)
| Manufacturer | Diodes |
| Description | PNP |
| Pages / Page | 7 / 1 — MMBT3906. 40V PNP SMALL SIGNAL TRANSISTOR IN SOT23. Features. Mechanical … |
| File Format / Size | PDF / 262 Kb |
| Document Language | English |

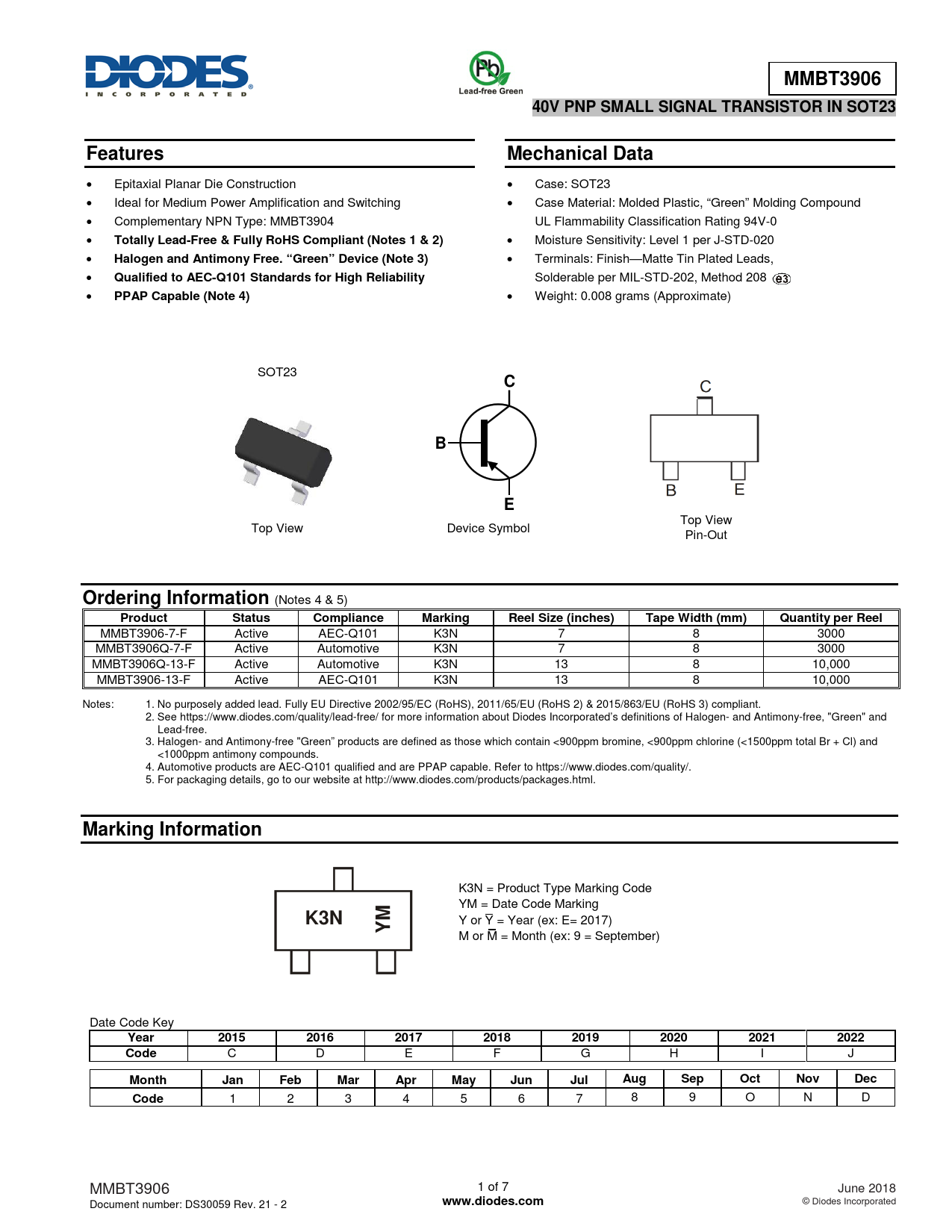

MMBT3906. 40V PNP SMALL SIGNAL TRANSISTOR IN SOT23. Features. Mechanical Data
Model Line for this Datasheet
Text Version of Document
MMBT3906 40V PNP SMALL SIGNAL TRANSISTOR IN SOT23 Features Mechanical Data
• Epitaxial Planar Die Construction • Case: SOT23 • Ideal for Medium Power Amplification and Switching • Case Material: Molded Plastic, “Green” Molding Compound • Complementary NPN Type: MMBT3904 UL Flammability Classification Rating 94V-0 •
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Moisture Sensitivity: Level 1 per J-STD-020 •
Halogen and Antimony Free. “Green” Device (Note 3)
• Terminals: Finish—Matte Tin Plated Leads, •
Qualified to AEC-Q101 Standards for High Reliability
Solderable per MIL-STD-202, Method 208 •
PPAP Capable (Note 4)
• Weight: 0.008 grams (Approximate) SOT23
C B E
Top View Top View Device Symbol Pin-Out
Ordering Information
(Notes 4 & 5)
Product Status Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel
MMBT3906-7-F Active AEC-Q101 K3N 7 8 3000 MMBT3906Q-7-F Active Automotive K3N 7 8 3000 MMBT3906Q-13-F Active Automotive K3N 13 8 10,000 MMBT3906-13-F Active AEC-Q101 K3N 13 8 10,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to https://www.diodes.com/quality/. 5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
K3N = Product Type Marking Code YM = Date Code Marking
M K3N Y
Y or Y = Year (ex: E= 2017) M or M = Month (ex: 9 = September) Date Code Key
Year 2015 2016 2017 2018 2019 2020 2021 2022 Code
C D E F G H I J
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D MMBT3906 1 of 7 June 2018 Document number: DS30059 Rev. 21 - 2
www.diodes.com
© Diodes Incorporated Document Outline Mechanical Data Characteristic Features Marking Information Package Outline Dimensions Suggested Pad Layout
