Datasheet MMBT3904 (Diodes) - 6
| Manufacturer | Diodes |
| Description | NPN |
| Pages / Page | 7 / 6 — MMBT3904. Package Outline Dimensions. SOT23. Dim. Min. Max. Typ. All … |
| File Format / Size | PDF / 409 Kb |
| Document Language | English |

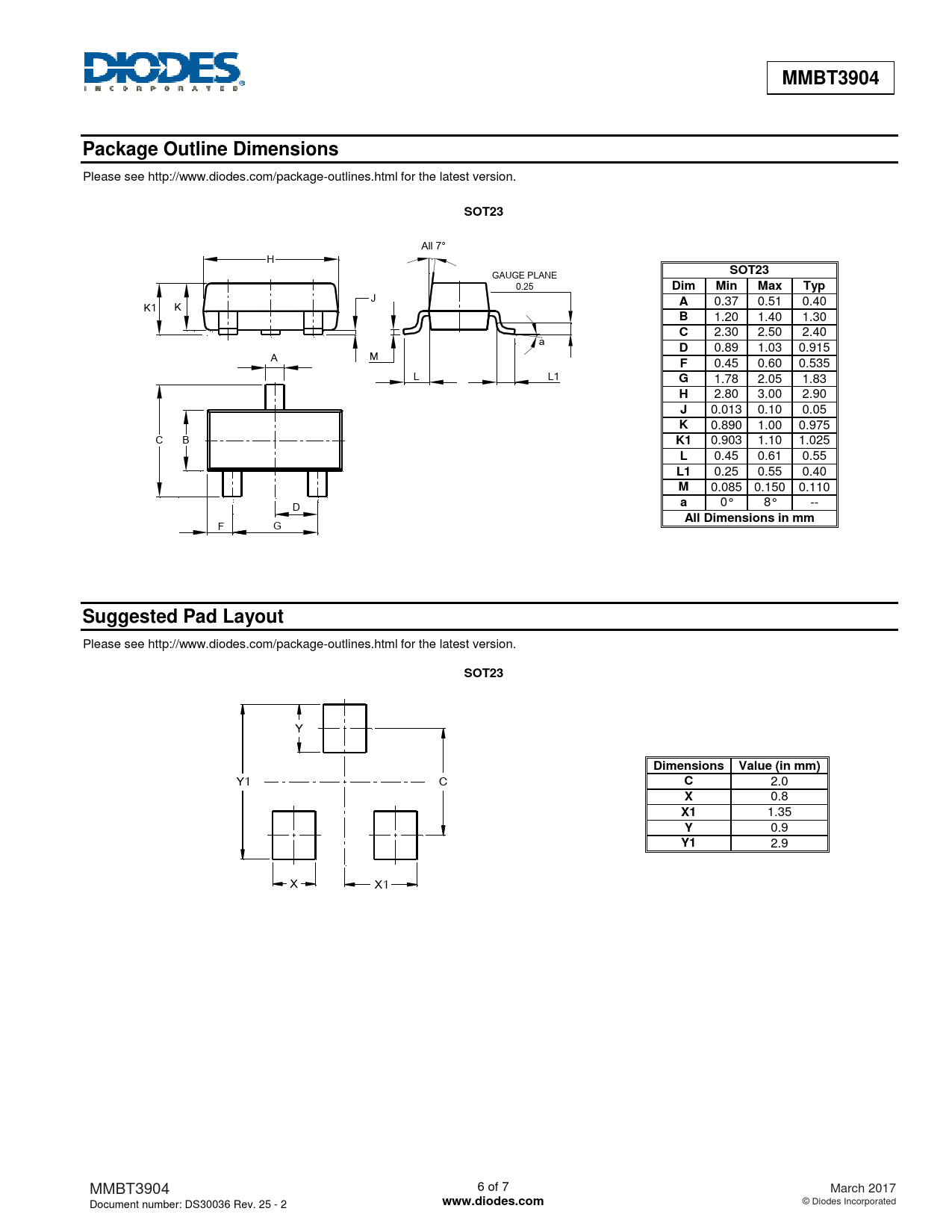

MMBT3904. Package Outline Dimensions. SOT23. Dim. Min. Max. Typ. All Dimensions in mm. Suggested Pad Layout. Dimensions Value (in mm)
Model Line for this Datasheet
Text Version of Document
MMBT3904 Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
All 7° H
SOT23
GAUGE PLANE 0.25
Dim Min Max Typ
J
A
0.37 0.51 0.40 K1 K
B
1.20 1.40 1.30
C
2.30 2.50 2.40 a
D
0.89 1.03 0.915 A M
F
0.45 0.60 0.535 L L1
G
1.78 2.05 1.83
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.890 1.00 0.975 C B
K1
0.903 1.10 1.025
L
0.45 0.61 0.55
L1
0.25 0.55 0.40
M
0.085 0.150 0.110
a
0° 8° -- D
All Dimensions in mm
F G
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Y
Dimensions Value (in mm)
Y1 C
C
2.0
X
0.8
X1
1.35
Y
0.9
Y1
2.9 X X1 MMBT3904 6 of 7 March 2017 Document number: DS30036 Rev. 25 - 2
www.diodes.com
© Diodes Incorporated
