Datasheet SMBT3904PN (Infineon) - 7
| Manufacturer | Infineon |
| Description | NPN / PNP Silicon Switching Transistor Array |
| Pages / Page | 9 / 7 — Package SC74. SMBT3904...PN |
| Revision | 01_01 |
| File Format / Size | PDF / 868 Kb |
| Document Language | English |
Package SC74. SMBT3904...PN
Model Line for this Datasheet
Text Version of Document
Package SC74 SMBT3904...PN

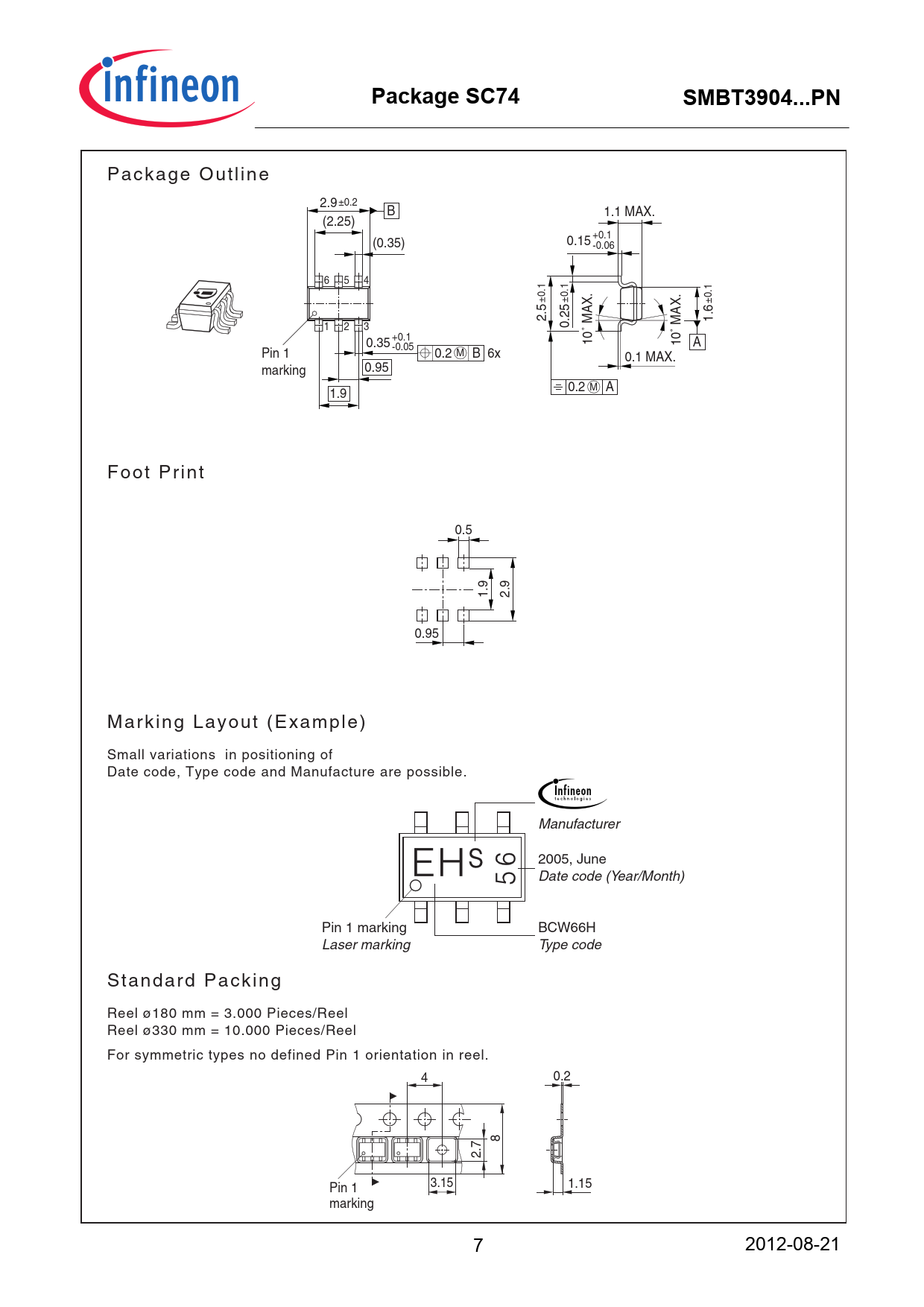

P a c k a g e O u t l i n e 2.9 ±0.2 B 1.1 MAX. (2.25) +0.1 (0.35) 0.15 -0.06 6 5 4 ±0.1 ±0.1 ±0.1 2.5 1.6 1 2 3 0.25 +0.1 0.35 10˚ MAX. 10˚ MAX. -0.05 A Pin 1 0.2 M B 6x 0.1 MAX. marking 0.95 0.2 M A 1.9 F o o t P r i n t 0.5 1.9 2.9 0.95 M a r k i n g L a y o u t ( E x a m p l e ) Small variations in positioning of Date code, Type code and Manufacture are possible. Manufacturer 2005, June Date code (Year/Month) Pin 1 marking BCW66H Laser marking Type code S t a n d a r d P a c k i n g Reel ø180 mm = 3.000 Pieces/Reel Reel ø330 mm = 10.000 Pieces/Reel For symmetric types no defined Pin 1 orientation in reel. 4 0.2 8 2.7 3.15 Pin 1 1.15 marking 7 2012-08-21
P a c k a g e O u t l i n e 2.9 ±0.2 B 1.1 MAX. (2.25) +0.1 (0.35) 0.15 -0.06 6 5 4 ±0.1 ±0.1 ±0.1 2.5 1.6 1 2 3 0.25 +0.1 0.35 10˚ MAX. 10˚ MAX. -0.05 A Pin 1 0.2 M B 6x 0.1 MAX. marking 0.95 0.2 M A 1.9 F o o t P r i n t 0.5 1.9 2.9 0.95 M a r k i n g L a y o u t ( E x a m p l e ) Small variations in positioning of Date code, Type code and Manufacture are possible. Manufacturer 2005, June Date code (Year/Month) Pin 1 marking BCW66H Laser marking Type code S t a n d a r d P a c k i n g Reel ø180 mm = 3.000 Pieces/Reel Reel ø330 mm = 10.000 Pieces/Reel For symmetric types no defined Pin 1 orientation in reel. 4 0.2 8 2.7 3.15 Pin 1 1.15 marking 7 2012-08-21
