Datasheet ADL5601 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 50 MHz TO 4.0 GHz RF/IF Gain Block |
| Pages / Page | 16 / 7 — Data Sheet. ADL5601. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. … |
| Revision | A |
| File Format / Size | PDF / 323 Kb |
| Document Language | English |

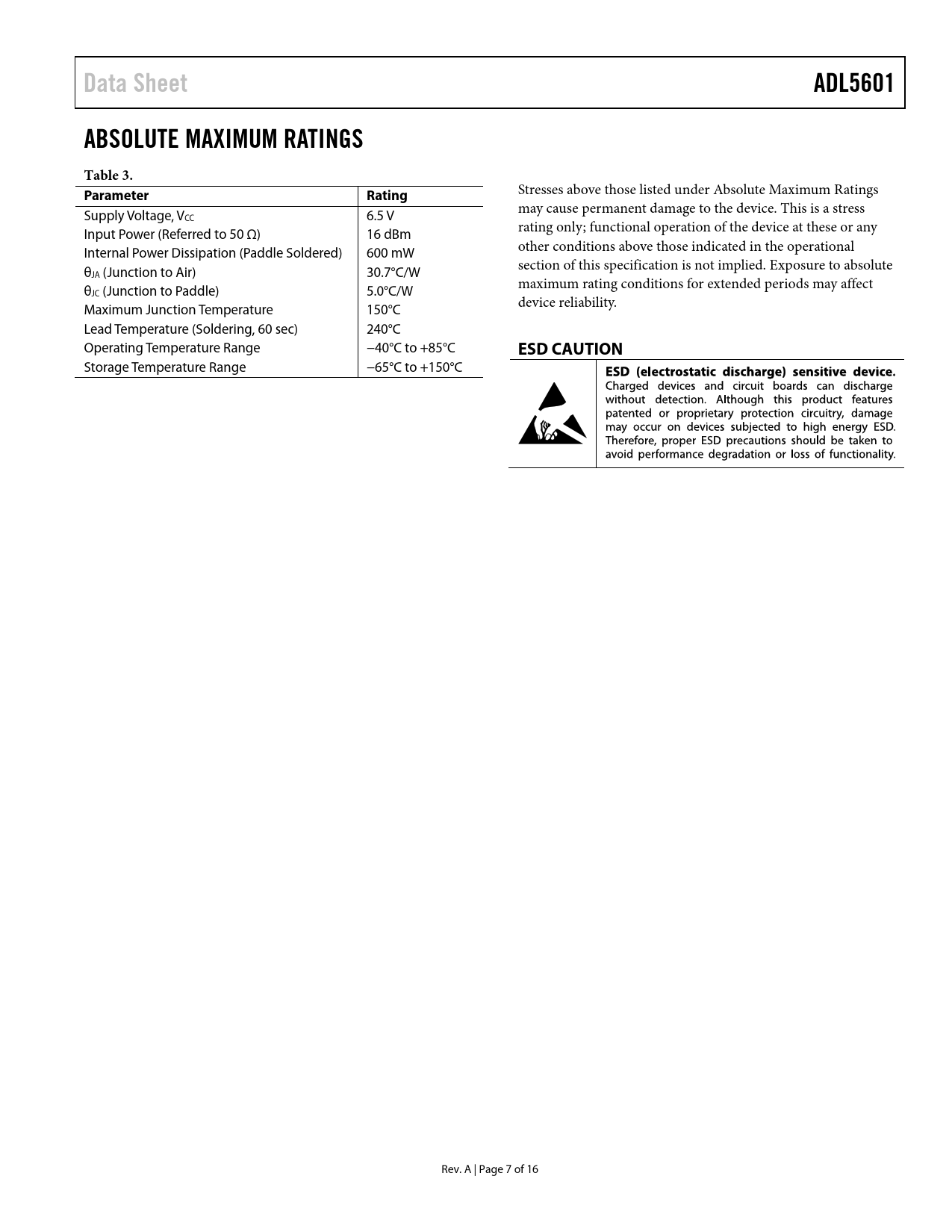

Data Sheet. ADL5601. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5601 ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating
Stresses above those listed under Absolute Maximum Ratings Supply Voltage, V may cause permanent damage to the device. This is a stress CC 6.5 V Input Power (Referred to 50 Ω) rating only; functional operation of the device at these or any 16 dBm Internal Power Dissipation (Paddle Soldered) 600 mW other conditions above those indicated in the operational θ section of this specification is not implied. Exposure to absolute JA (Junction to Air) 30.7°C/W θ maximum rating conditions for extended periods may affect JC (Junction to Paddle) 5.0°C/W Maximum Junction Temperature 150°C device reliability. Lead Temperature (Soldering, 60 sec) 240°C Operating Temperature Range −40°C to +85°C
ESD CAUTION
Storage Temperature Range −65°C to +150°C Rev. A | Page 7 of 16 Document Outline Features Functional Block Diagram General Description Revision History Specifications Typical Scattering Parameters (S-Parameters) Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Soldering Information and Recommended PCB Land Pattern W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
