Datasheet ADL5542 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 20 MHz to 6 GHz RF/IF Gain Block |
| Pages / Page | 13 / 3 — Data Sheet. ADL5542. SPECIFICATIONS. Table 1. Parameter. Test … |
| Revision | C |
| File Format / Size | PDF / 268 Kb |
| Document Language | English |

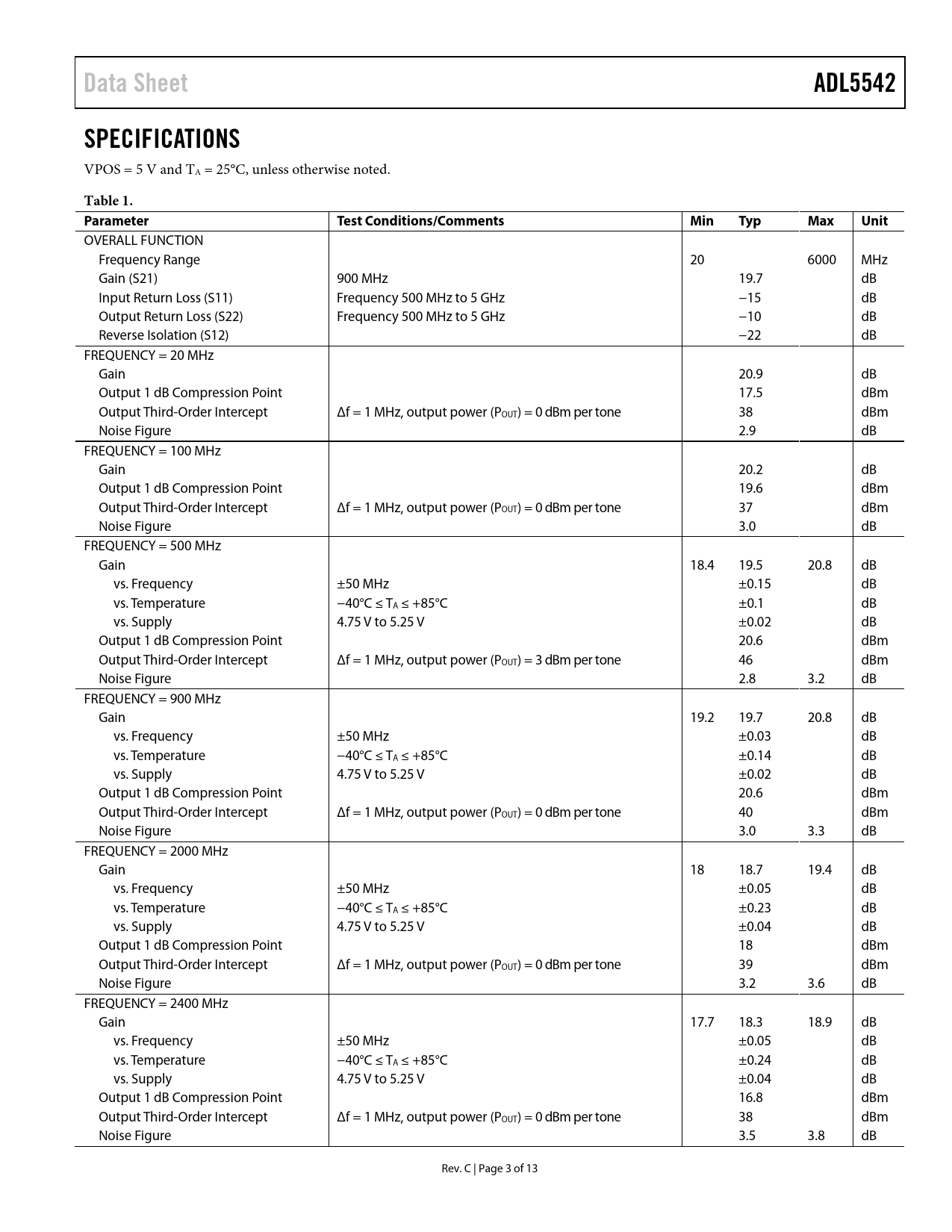

Data Sheet. ADL5542. SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5542 SPECIFICATIONS
VPOS = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range 20 6000 MHz Gain (S21) 900 MHz 19.7 dB Input Return Loss (S11) Frequency 500 MHz to 5 GHz −15 dB Output Return Loss (S22) Frequency 500 MHz to 5 GHz −10 dB Reverse Isolation (S12) −22 dB FREQUENCY = 20 MHz Gain 20.9 dB Output 1 dB Compression Point 17.5 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = 0 dBm per tone 38 dBm Noise Figure 2.9 dB FREQUENCY = 100 MHz Gain 20.2 dB Output 1 dB Compression Point 19.6 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = 0 dBm per tone 37 dBm Noise Figure 3.0 dB FREQUENCY = 500 MHz Gain 18.4 19.5 20.8 dB vs. Frequency ±50 MHz ±0.15 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.1 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 20.6 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = 3 dBm per tone 46 dBm Noise Figure 2.8 3.2 dB FREQUENCY = 900 MHz Gain 19.2 19.7 20.8 dB vs. Frequency ±50 MHz ±0.03 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.14 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 20.6 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = 0 dBm per tone 40 dBm Noise Figure 3.0 3.3 dB FREQUENCY = 2000 MHz Gain 18 18.7 19.4 dB vs. Frequency ±50 MHz ±0.05 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.23 dB vs. Supply 4.75 V to 5.25 V ±0.04 dB Output 1 dB Compression Point 18 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = 0 dBm per tone 39 dBm Noise Figure 3.2 3.6 dB FREQUENCY = 2400 MHz Gain 17.7 18.3 18.9 dB vs. Frequency ±50 MHz ±0.05 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.24 dB vs. Supply 4.75 V to 5.25 V ±0.04 dB Output 1 dB Compression Point 16.8 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = 0 dBm per tone 38 dBm Noise Figure 3.5 3.8 dB Rev. C | Page 3 of 13 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OPERATING TO 20 MHz BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
