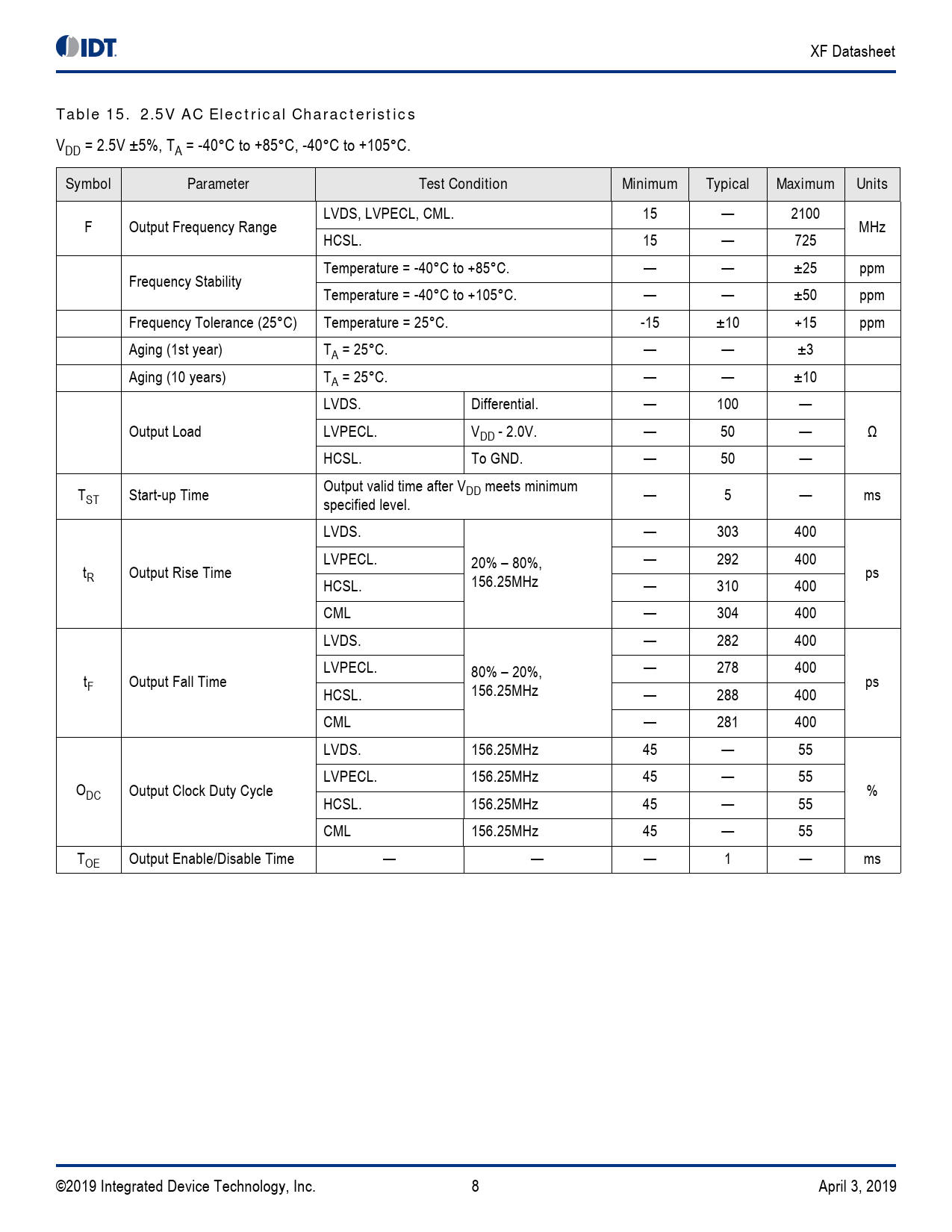

Table 15. 2.5V AC Electrical Characteristics
VDD = 2.5V ±5%, TA = -40°C to +85°C, -40°C to +105°C.
Symbol Parameter Test Condition Minimum Typical Maximum Units
LVDS, LVPECL, CML. 15 — 2100 F Output Frequency Range MHz HCSL. 15 — 725 Temperature = -40°C to +85°C. — — ±25 ppm Frequency Stability Temperature = -40°C to +105°C. — — ±50 ppm Frequency Tolerance (25°C) Temperature = 25°C. -15 ±10 +15 ppm Aging (1st year) TA = 25°C. — — ±3 Aging (10 years) TA = 25°C. — — ±10 LVDS. Differential. — 100 — Output Load LVPECL. V Ω DD - 2.0V. — 50 — HCSL. To GND. — 50 — Output valid time after V T DD meets minimum ST Start-up Time — 5 — ms specified level. LVDS. — 303 400 LVPECL. 20% – 80%, — 292 400 tR Output Rise Time ps 156.25MHz HCSL. — 310 400 CML — 304 400 LVDS. — 282 400 LVPECL. 80% – 20%, — 278 400 tF Output Fall Time ps 156.25MHz HCSL. — 288 400 CML — 281 400 LVDS. 156.25MHz 45 — 55 LVPECL. 156.25MHz 45 — 55 ODC Output Clock Duty Cycle % HCSL. 156.25MHz 45 — 55 CML 156.25MHz 45 — 55 TOE Output Enable/Disable Time — — — 1 — ms ©2019 Integrated Device Technology, Inc. 8 April 3, 2019 Document Outline Description Pin Assignments Features Typical Applications Table 1. Pin Descriptions Absolute Maximum Ratings Table 2. Absolute Maximum Ratings ESD Compliance Table 3. ESD Compliance Mechanical Testing Table 4. Mechanical Testing * Solder Reflow Profile DC Electrical Characteristics Table 5. 3.3V IDD DC Electrical Characteristics Table 6. 2.5V IDD DC Electrical Characteristics Table 7. 1.8V IDD DC Electrical Characteristics Table 8. LVCMOS DC Electrical Characteristics Table 9. LVDS DC Electrical Characteristics Table 10. LVPECL DC Electrical Characteristics Table 11. HCSL DC Electrical Characteristics Table 12. CML DC Electrical Characteristics Table 13. DC Electrical Characteristics – Leakage Current AC Electrical Characteristics Table 14. 3.3V AC Electrical Characteristics Table 15. 2.5V AC Electrical Characteristics Table 16. 1.8V AC Electrical Characteristics Table 17. Phase Jitter Characteristics Output Waveforms Figure 1. LVDS Output Waveforms Figure 2. LVPECL Output Waveforms Figure 3. HCSL Output Waveforms Figure 4. CML Output Waveforms Termination for 3.3V LVPECL Outputs Figure 5. 3.3V LVPECL Output Termination Figure 6. 3.3V LVPECL Output Termination Termination for 2.5V LVPECL Outputs Figure 7. 2.5V LVPECL Driver Termination Example Figure 8. 2.5V LVPECL Driver Termination Example Figure 9. 2.5V LVPECL Driver Termination Example LVDS Driver Termination Figure 10. Standard LVDS Termination Figure 11. Optional LVDS Termination Recommended Termination for HCSL Outputs Figure 12. Recommended Source Termination (where the driver and receiver will be on separate PCBs) Figure 13. Recommended Termination (where a point-to-point connection can be used) CML Termination Figure 14. CML Termination Example Package Outline Drawings Marking Diagram Ordering Information Revision History
