Datasheet XF (IDT) - 10
| Manufacturer | IDT |
| Description | 150fs Small Package Quartz-based PLL Oscillator |
| Pages / Page | 17 / 10 — Output Waveforms Figure 1. LVDS Output Waveforms. Output Levels /Rise … |
| Revision | 20190403 |
| File Format / Size | PDF / 385 Kb |
| Document Language | English |
Output Waveforms Figure 1. LVDS Output Waveforms. Output Levels /Rise Time/Fal Time Measurements. Oscillator Symmetry
Model Line for this Datasheet
Text Version of Document
XF Datasheet

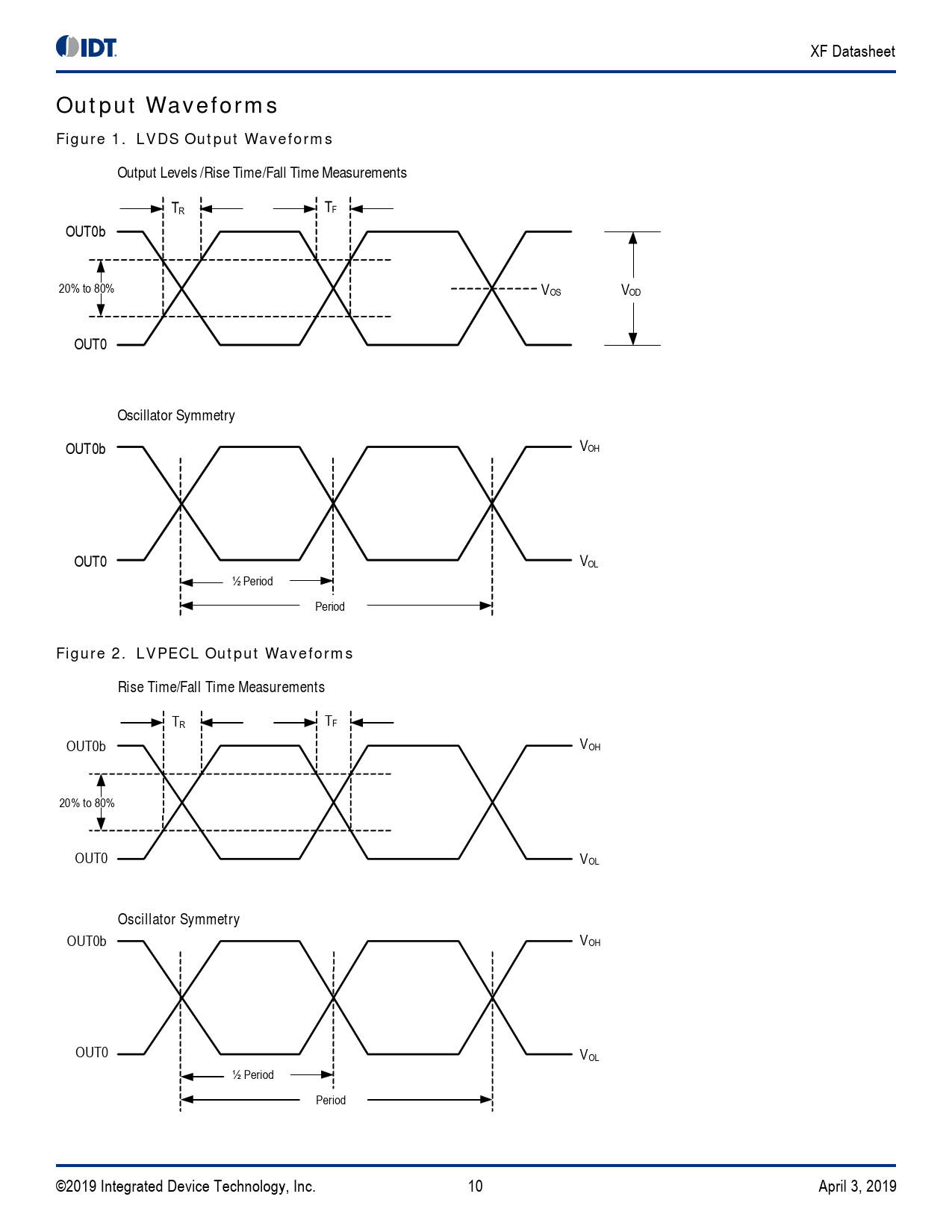

Output Waveforms Figure 1. LVDS Output Waveforms Output Levels /Rise Time/Fal Time Measurements
TR TF OUT0b 20% to 80% VOS VOD OUT0
Oscillator Symmetry
OUT0b VOH OUT0 VOL ½ Period Period
Figure 2. LVPECL Output Waveforms Rise Time/Fall Time Measurements
TR TF OUT0b VOH 20% to 80% OUT0 VOL
Oscillator Symmetry
