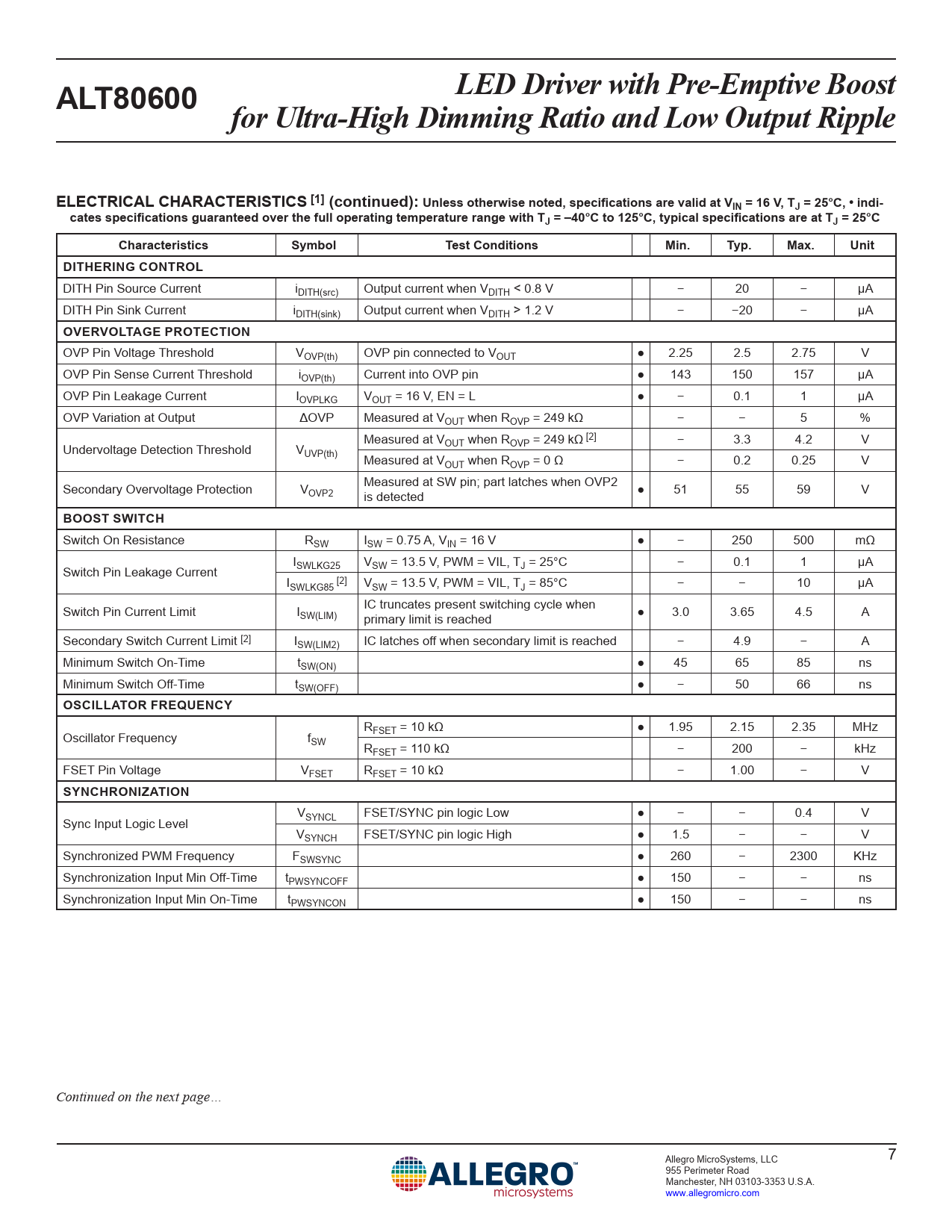

LED Driver with Pre-Emptive Boost ALT80600 for Ultra-High Dimming Ratio and Low Output Ripple ELECTRICAL CHARACTERISTICS [1] (continued): Unless otherwise noted, specifications are valid at VIN = 16 V, TJ = 25°C, • indi- cates specifications guaranteed over the full operating temperature range with TJ = –40°C to 125°C, typical specifications are at TJ = 25°C Characteristics Symbol Test Conditions Min. Typ. Max. Unit DITHERING CONTROL
DITH Pin Source Current iDITH(src) Output current when VDITH < 0.8 V − 20 − μA DITH Pin Sink Current iDITH(sink) Output current when VDITH > 1.2 V − −20 − μA
OVERVOLTAGE PROTECTION
OVP Pin Voltage Threshold VOVP(th) OVP pin connected to VOUT ● 2.25 2.5 2.75 V OVP Pin Sense Current Threshold iOVP(th) Current into OVP pin ● 143 150 157 µA OVP Pin Leakage Current IOVPLKG VOUT = 16 V, EN = L ● − 0.1 1 µA OVP Variation at Output ΔOVP Measured at VOUT when ROVP = 249 kΩ − − 5 % Measured at V Undervoltage Detection Threshold V OUT when ROVP = 249 kΩ [2] − 3.3 4.2 V UVP(th) Measured at VOUT when ROVP = 0 Ω − 0.2 0.25 V Secondary Overvoltage Protection V Measured at SW pin; part latches when OVP2 OVP2 is detected ● 51 55 59 V
BOOST SWITCH
Switch On Resistance RSW ISW = 0.75 A, VIN = 16 V ● − 250 500 mΩ I Switch Pin Leakage Current SWLKG25 VSW = 13.5 V, PWM = VIL, TJ = 25°C − 0.1 1 µA ISWLKG85 [2] VSW = 13.5 V, PWM = VIL, TJ = 85°C − − 10 µA Switch Pin Current Limit I IC truncates present switching cycle when SW(LIM) primary limit is reached ● 3.0 3.65 4.5 A Secondary Switch Current Limit [2] ISW(LIM2) IC latches off when secondary limit is reached − 4.9 − A Minimum Switch On-Time tSW(ON) ● 45 65 85 ns Minimum Switch Off-Time tSW(OFF) ● − 50 66 ns
OSCILLATOR FREQUENCY
R Oscillator Frequency f FSET = 10 kΩ ● 1.95 2.15 2.35 MHz SW RFSET = 110 kΩ − 200 − kHz FSET Pin Voltage VFSET RFSET = 10 kΩ − 1.00 − V
