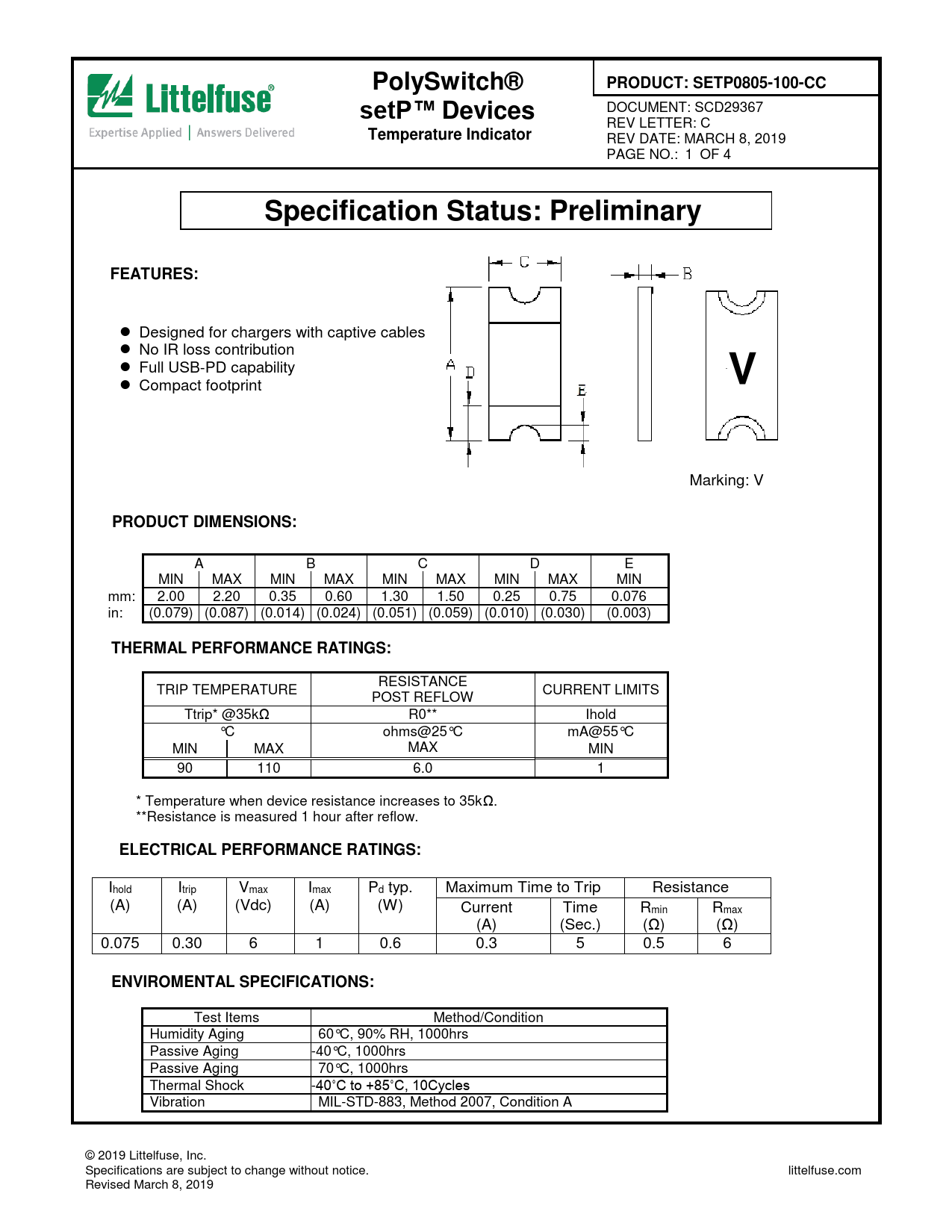

PolySwitch®. PRODUCT: SETP0805-100-CC. setP™. Devices. Temperature Indicator. Specification Status: Preliminary. FEATURES:
Model Line for this Datasheet
Text Version of Document
PolySwitch® PRODUCT: SETP0805-100-CC setP™ Devices
DOCUMENT: SCD29367 REV LETTER: C
Temperature Indicator
REV DATE: MARCH 8, 2019 PAGE NO.: 1 OF 4
Specification Status: Preliminary FEATURES:
⚫ Designed for chargers with captive cables ⚫ No IR loss contribution ⚫ Full USB-PD capability D
V
⚫ B Compact footprint T Marking: V
PRODUCT DIMENSIONS:
A B C D E MIN MAX MIN MAX MIN MAX MIN MAX MIN mm: 2.00 2.20 0.35 0.60 1.30 1.50 0.25 0.75 0.076 in: (0.079) (0.087) (0.014) (0.024) (0.051) (0.059) (0.010) (0.030) (0.003)
THERMAL PERFORMANCE RATINGS:
RESISTANCE TRIP TEMPERATURE CURRENT LIMITS POST REFLOW Ttrip* @35kΩ R0** Ihold °C ohms@25°C mA@55°C MIN MAX MAX MIN 90 110 6.0 1 * Temperature when device resistance increases to 35kΩ. **Resistance is measured 1 hour after reflow.
ELECTRICAL PERFORMANCE RATINGS:
Ihold Itrip Vmax Imax Pd typ. Maximum Time to Trip Resistance (A) (A) (Vdc) (A) (W) Current Time Rmin Rmax (A) (Sec.) (Ω) (Ω) 0.075 0.30 6 1 0.6 0.3 5 0.5 6
ENVIROMENTAL SPECIFICATIONS:
Test Items Method/Condition Humidity Aging 60°C, 90% RH, 1000hrs Passive Aging -40°C, 1000hrs Passive Aging 70°C, 1000hrs Thermal Shock -40˚C to +85˚C, 10Cycles Vibration MIL-STD-883, Method 2007, Condition A © 2019 Littelfuse, Inc. Specifications are subject to change without notice. littelfuse.com Revised March 8, 2019
