PolySwitch®. PRODUCT: SETP0805-100-CC. setP™. Devices. Temperature Indicator. PACKAGING INFORMATION:. Description. EIA 481-1 (mm)
Model Line for this Datasheet
Text Version of Document
PolySwitch® PRODUCT: SETP0805-100-CC setP™ Devices
DOCUMENT: SCD29367 REV LETTER: C
Temperature Indicator

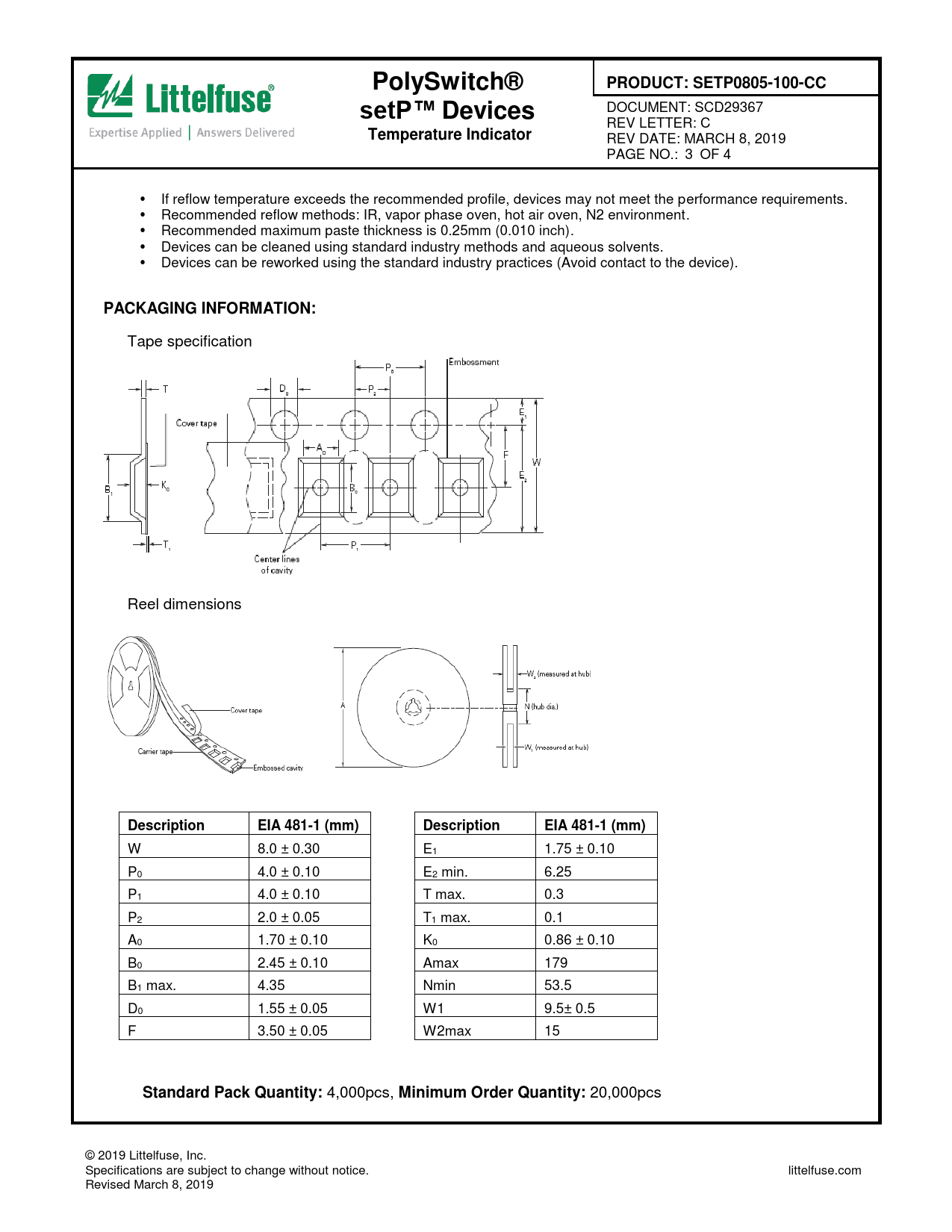

REV DATE: MARCH 8, 2019 PAGE NO.: 3 OF 4 If reflow temperature exceeds the recommended profile, devices may not meet the performance requirements. Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment. Recommended maximum paste thickness is 0.25mm (0.010 inch). Devices can be cleaned using standard industry methods and aqueous solvents. Devices can be reworked using the standard industry practices (Avoid contact to the device).
PACKAGING INFORMATION:
Tape specification Reel dimensions
Description EIA 481-1 (mm) Description EIA 481-1 (mm)
W 8.0 ± 0.30 E1 1.75 ± 0.10 P0 4.0 ± 0.10 E2 min. 6.25 P1 4.0 ± 0.10 T max. 0.3 P2 2.0 ± 0.05 T1 max. 0.1 A0 1.70 ± 0.10 K0 0.86 ± 0.10 B0 2.45 ± 0.10 Amax 179 B1 max. 4.35 Nmin 53.5 D0 1.55 ± 0.05 W1 9.5± 0.5 F 3.50 ± 0.05 W2max 15
Standard Pack Quantity:
4,000pcs,
Minimum Order Quantity:
20,000pcs © 2019 Littelfuse, Inc. Specifications are subject to change without notice. littelfuse.com Revised March 8, 2019
