Datasheet TB67H450FNG (Toshiba) - 2
| Manufacturer | Toshiba |
| Description | Capable of constant current controlling (PWM) / CW/CCW/Short Brake/Stop modes / Standby function. Brush motor driver IC |
| Pages / Page | 20 / 2 — Pin Assignment |
| File Format / Size | PDF / 505 Kb |
| Document Language | English |
Pin Assignment
Model Line for this Datasheet
Text Version of Document
TB67H450FNG
Pin Assignment

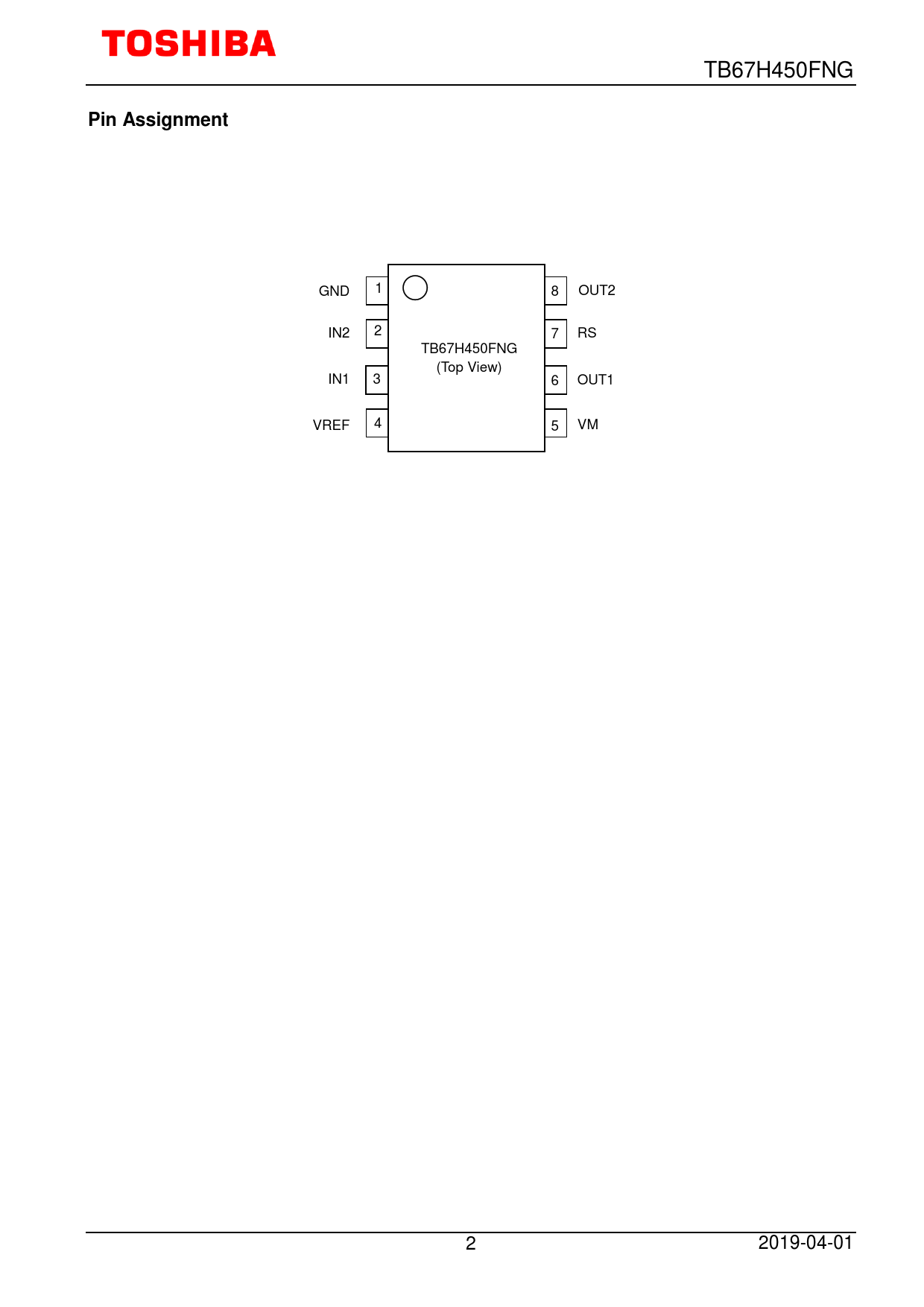

GND 1 8 OUT2 IN2 2 7 RS TB67H450FNG (Top View) IN1 3 6 OUT1 VREF 4 5 VM 2 2019-04-01
