Datasheet AL5822 (Diodes) - 9
| Manufacturer | Diodes |
| Description | Adaptive 100/120HZ LED Current Ripple Suppressor |
| Pages / Page | 10 / 9 — AL5822. Package Outline Dimensions. Package Type: SOT26. SOT26. Dim Min … |
| File Format / Size | PDF / 547 Kb |
| Document Language | English |

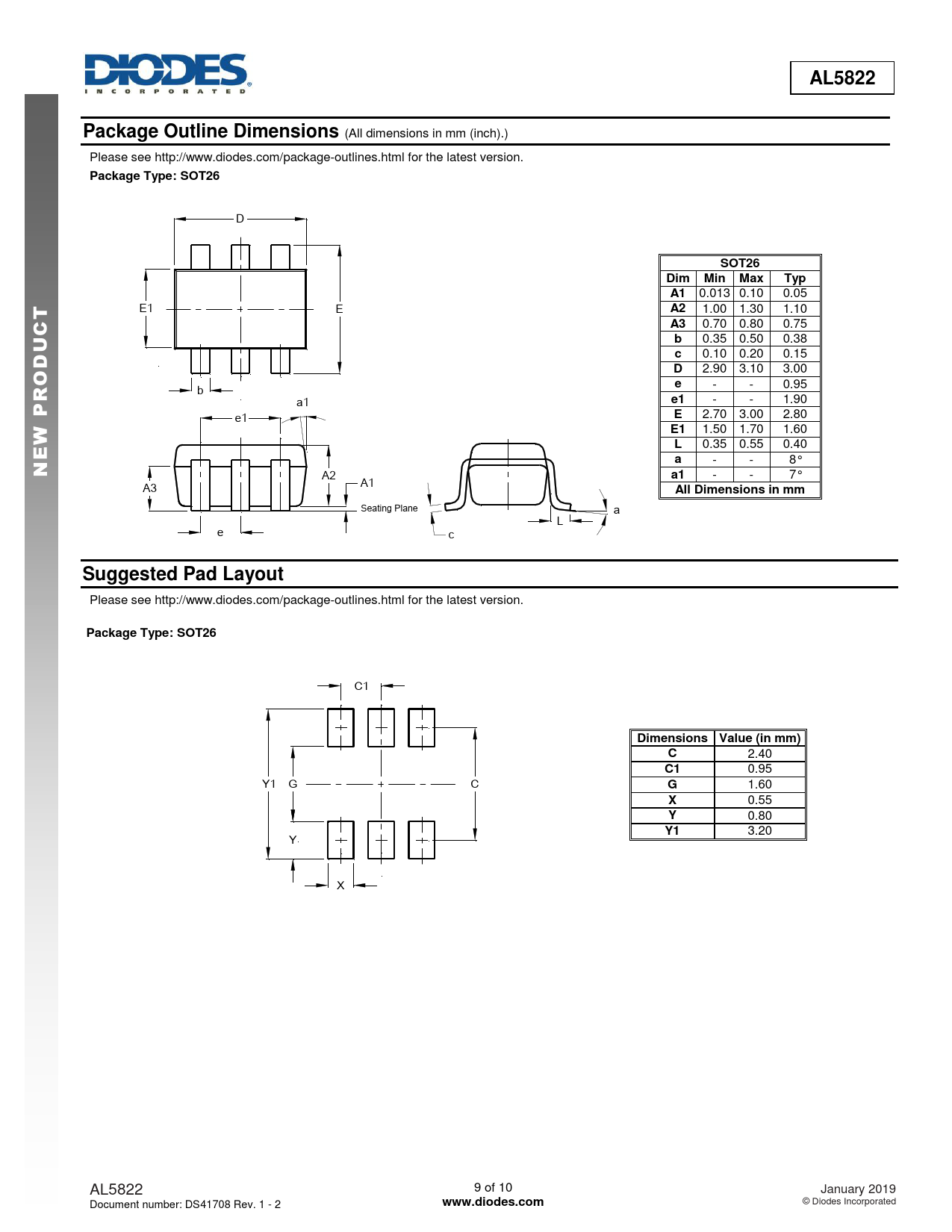

AL5822. Package Outline Dimensions. Package Type: SOT26. SOT26. Dim Min Max. Typ. All Dimensions in mm. Suggested Pad Layout
Model Line for this Datasheet
Text Version of Document
AL5822 Package Outline Dimensions
(All dimensions in mm (inch).) Please see http://www.diodes.com/package-outlines.html for the latest version.
Package Type: SOT26
D
SOT26 Dim Min Max Typ A1
0.013 0.10 0.05
T
E1 E
A2
1.00 1.30 1.10
C A3
0.70 0.80 0.75
U b
0.35 0.50 0.38
D c
0.10 0.20 0.15
O D
2.90 3.10 3.00
R e
- - 0.95 b
P e1
- - 1.90 a1
E
2.70 3.00 2.80 e1
W E1
1.50 1.70 1.60
E L
0.35 0.55 0.40
N a
- - 8° A2
a1
- - 7° A1 A3
All Dimensions in mm
Seating Plane a L e c
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
Package Type: SOT26
C1
Dimensions Value (in mm) C
2.40
C1
0.95 Y1 G C
G
1.60
X
0.55
Y
0.80
Y1
3.20 Y X AL5822 9 of 10 January 2019 Document number: DS41708 Rev. 1 - 2
www.diodes.com
© Diodes Incorporated
