Datasheet AD7606-EP (Analog Devices) - 15
| Manufacturer | Analog Devices |
| Description | 8-Channel DAS with 16-Bit, Bipolar, Simultaneous Sampling ADC |
| Pages / Page | 15 / 15 — Data Sheet. AD7606-EP. OUTLINE DIMENSIONS. 12.20 12.00 SQ. 0.75. 11.80. … |
| File Format / Size | PDF / 279 Kb |
| Document Language | English |

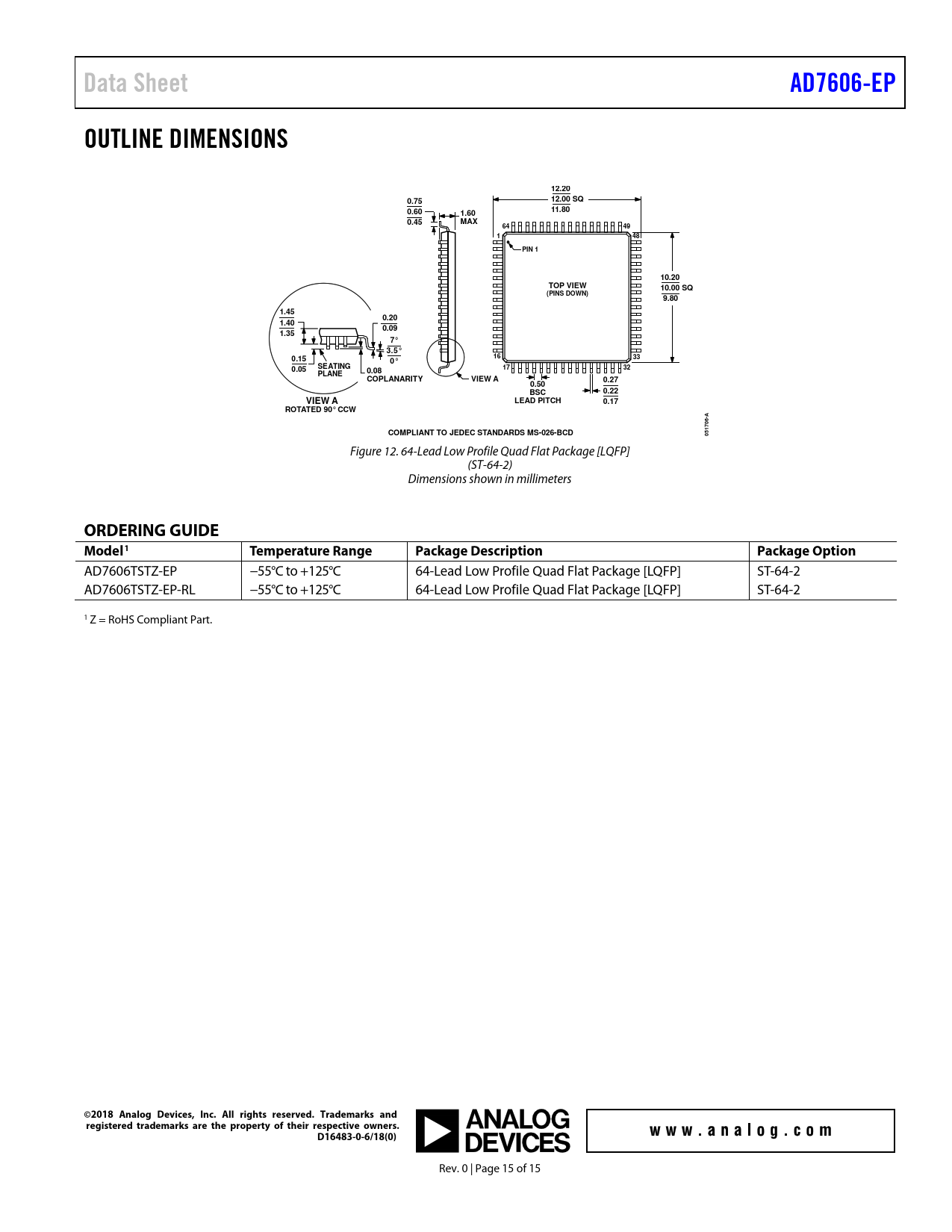

Data Sheet. AD7606-EP. OUTLINE DIMENSIONS. 12.20 12.00 SQ. 0.75. 11.80. 0.60. 1.60. 0.45. MAX. PIN 1. 10.20. TOP VIEW. 10.00 SQ. (PINS DOWN). 9.80
Model Line for this Datasheet
Text Version of Document
Data Sheet AD7606-EP OUTLINE DIMENSIONS 12.20 12.00 SQ 0.75 11.80 0.60 1.60 0.45 MAX 64 49 1 48 PIN 1 10.20 TOP VIEW 10.00 SQ (PINS DOWN) 9.80 1.45 0.20 1.40 0.09 1.35 7° 3.5° 16 33 0.15 0° SEATING 17 32 0.05 0.08 PLANE COPLANARITY VIEW A 0.27 0.50 0.22 BSC VIEW A LEAD PITCH 0.17 ROTATED 90° CCW A COMPLIANT TO JEDEC STANDARDS MS-026-BCD 051706-
Figure 12. 64-Lead Low Profile Quad Flat Package [LQFP] (ST-64-2) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option
AD7606TSTZ-EP −55°C to +125°C 64-Lead Low Profile Quad Flat Package [LQFP] ST-64-2 AD7606TSTZ-EP-RL −55°C to +125°C 64-Lead Low Profile Quad Flat Package [LQFP] ST-64-2 1 Z = RoHS Compliant Part.
