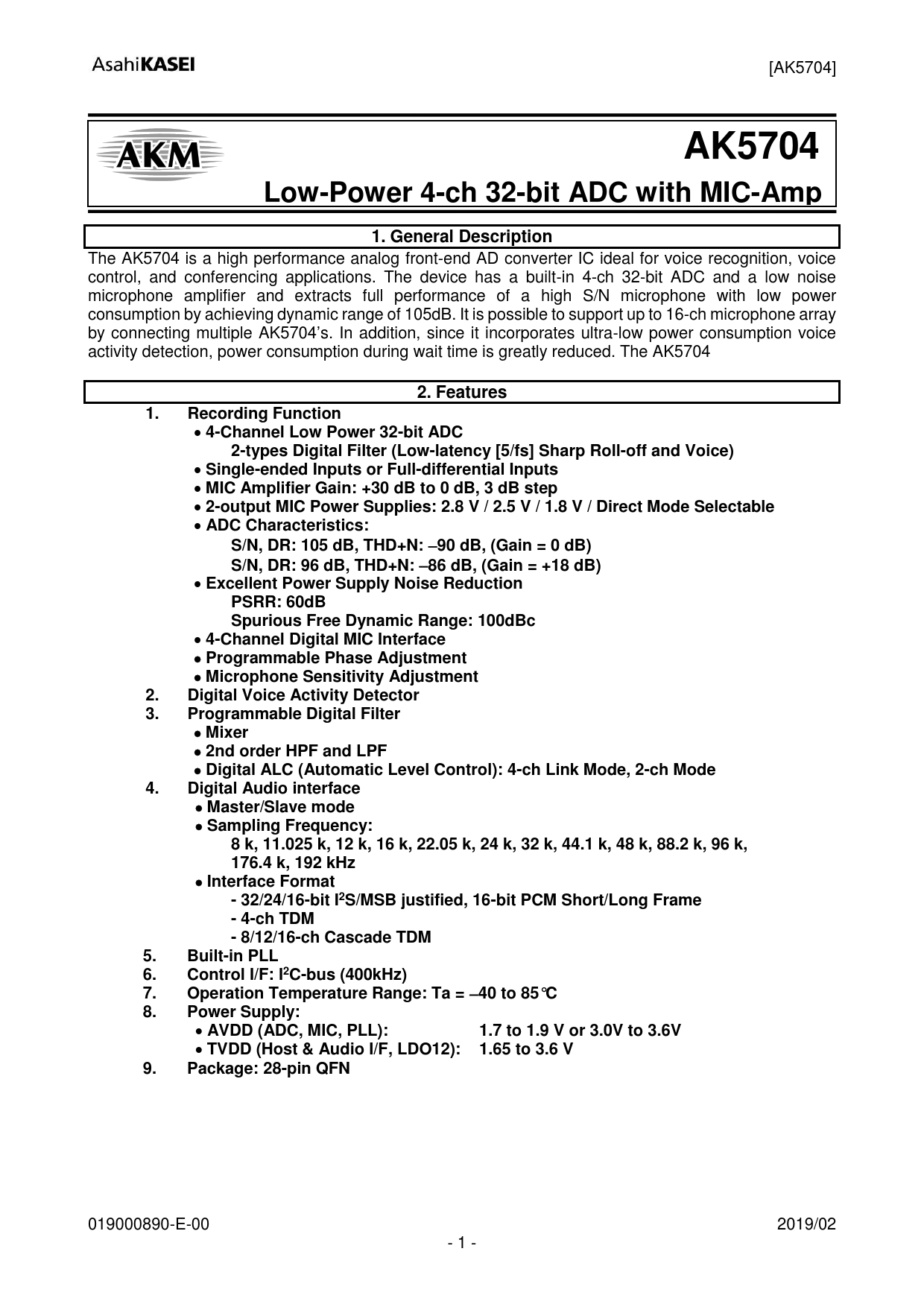

AK5704. Low-Power 4-ch 32-bit ADC with MIC-Amp. 1. General Description. 2. Features. Recording Function
Model Line for this Datasheet
Text Version of Document
[AK5704]
AK5704 Low-Power 4-ch 32-bit ADC with MIC-Amp 1. General Description
The AK5704 is a high performance analog front-end AD converter IC ideal for voice recognition, voice control, and conferencing applications. The device has a built-in 4-ch 32-bit ADC and a low noise microphone amplifier and extracts full performance of a high S/N microphone with low power consumption by achieving dynamic range of 105dB. It is possible to support up to 16-ch microphone array by connecting multiple AK5704’s. In addition, since it incorporates ultra-low power consumption voice activity detection, power consumption during wait time is greatly reduced. The AK5704
2. Features 1. Recording Function
•
4-Channel Low Power 32-bit ADC 2-types Digital Filter (Low-latency [5/fs] Sharp Roll-off and Voice)
•
Single-ended Inputs or Full-differential Inputs
•
MIC Amplifier Gain: +30 dB to 0 dB, 3 dB step
•
2-output MIC Power Supplies: 2.8 V / 2.5 V / 1.8 V / Direct Mode Selectable
•
ADC Characteristics: S/N, DR: 105 dB, THD+N:
90 dB, (Gain = 0 dB) S/N, DR: 96 dB, THD+N:
86 dB, (Gain = +18 dB)
•
Excellent Power Supply Noise Reduction PSRR: 60dB Spurious Free Dynamic Range: 100dBc
•
4-Channel Digital MIC Interface
•
Programmable Phase Adjustment
•
Microphone Sensitivity Adjustment 2. Digital Voice Activity Detector 3. Programmable Digital Filter
•
Mixer
•
2nd order HPF and LPF
•
Digital ALC (Automatic Level Control): 4-ch Link Mode, 2-ch Mode 4. Digital Audio interface
•
Master/Slave mode
•
Sampling Frequency: 8 k, 11.025 k, 12 k, 16 k, 22.05 k, 24 k, 32 k, 44.1 k, 48 k, 88.2 k, 96 k, 176.4 k, 192 kHz
•
Interface Format - 32/24/16-bit I2S/MSB justified, 16-bit PCM Short/Long Frame - 4-ch TDM - 8/12/16-ch Cascade TDM 5. Built-in PLL 6. Control I/F: I2C-bus (400kHz) 7. Operation Temperature Range: Ta =
40 to 85°C 8. Power Supply:
•
AVDD (ADC, MIC, PLL): 1.7 to 1.9 V or 3.0V to 3.6V
•
TVDD (Host & Audio I/F, LDO12): 1.65 to 3.6 V 9. Package: 28-pin QFN
