Datasheet ADA4625-1, ADA4625-2 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 36 V, 18 MHz, Low Noise, Fast Settling Single Supply, RRO, JFET Op Amp |
| Pages / Page | 35 / 8 — ADA4625-1/. ADA4625-2. Data Sheet. PIN CONFIGURATIONS AND FUNCTION … |
| Revision | A |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
ADA4625-1/. ADA4625-2. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. NC 1 ADA4625-1 8 NC. –IN 2. 7 V+. +IN 3. 6 OUT. TOP VIEW
Model Line for this Datasheet
Text Version of Document

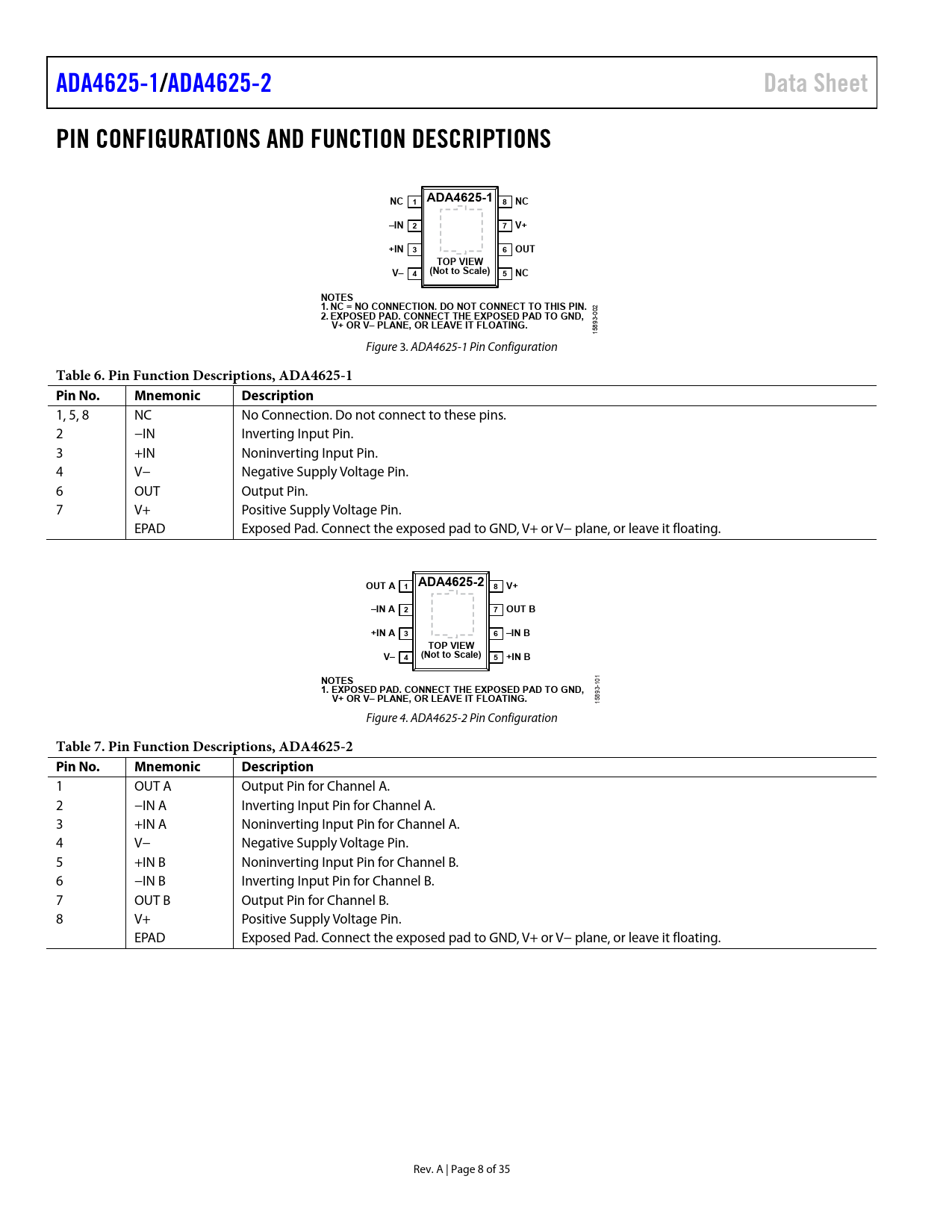

ADA4625-1/ ADA4625-2 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS NC 1 ADA4625-1 8 NC –IN 2 7 V+ +IN 3 6 OUT TOP VIEW V– 4 (Not to Scale) 5 NC NOTES 1. NC = NO CONNECTION. DO NOT CONNECT TO THIS PIN.
002
2. EXPOSED PAD. CONNECT THE EXPOSED PAD TO GND, V+ OR V– PLANE, OR LEAVE IT FLOATING.
15893- Figure 3. ADA4625-1 Pin Configuration
Table 6. Pin Function Descriptions, ADA4625-1 Pin No. Mnemonic Description
1, 5, 8 NC No Connection. Do not connect to these pins. 2 −IN Inverting Input Pin. 3 +IN Noninverting Input Pin. 4 V− Negative Supply Voltage Pin. 6 OUT Output Pin. 7 V+ Positive Supply Voltage Pin. EPAD Exposed Pad. Connect the exposed pad to GND, V+ or V− plane, or leave it floating.
OUT A 1 ADA4625-2 8 V+ –IN A 2 7 OUT B +IN A 3 6 –IN B TOP VIEW V– 4 (Not to Scale) 5 +IN B NOTES
101
1. EXPOSED PAD. CONNECT THE EXPOSED PAD TO GND, V+ OR V– PLANE, OR LEAVE IT FLOATING.
15893- Figure 4. ADA4625-2 Pin Configuration
Table 7. Pin Function Descriptions, ADA4625-2 Pin No. Mnemonic Description
