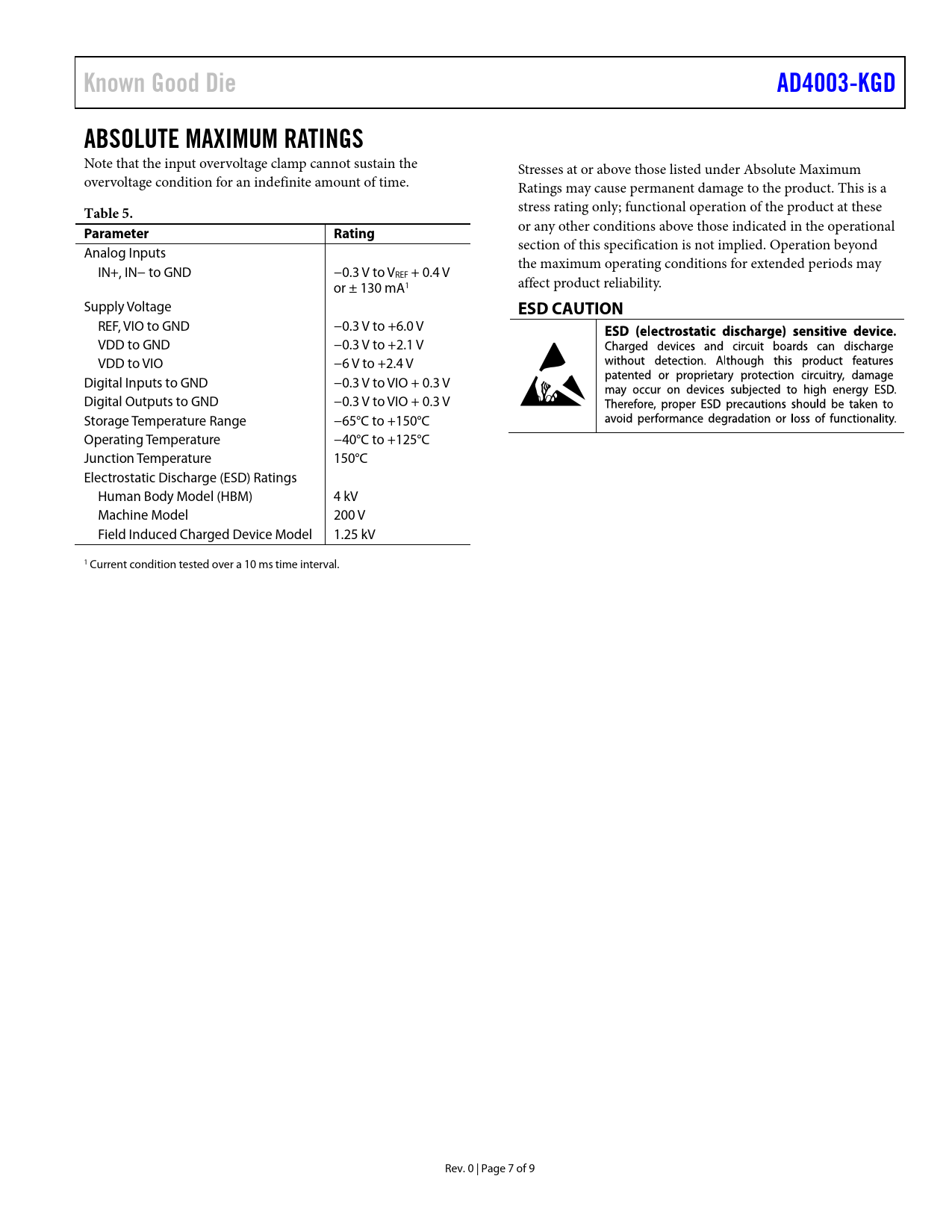

Known Good Die. AD4003-KGD. ABSOLUTE MAXIMUM RATINGS. Table 5. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Known Good Die AD4003-KGD ABSOLUTE MAXIMUM RATINGS
Note that the input overvoltage clamp cannot sustain the Stresses at or above those listed under Absolute Maximum overvoltage condition for an indefinite amount of time. Ratings may cause permanent damage to the product. This is a
Table 5.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond Analog Inputs the maximum operating conditions for extended periods may IN+, IN− to GND −0.3 V to VREF + 0.4 V or ± 130 mA1 affect product reliability. Supply Voltage
ESD CAUTION
REF, VIO to GND −0.3 V to +6.0 V VDD to GND −0.3 V to +2.1 V VDD to VIO −6 V to +2.4 V Digital Inputs to GND −0.3 V to VIO + 0.3 V Digital Outputs to GND −0.3 V to VIO + 0.3 V Storage Temperature Range −65°C to +150°C Operating Temperature −40°C to +125°C Junction Temperature 150°C Electrostatic Discharge (ESD) Ratings Human Body Model (HBM) 4 kV Machine Model 200 V Field Induced Charged Device Model 1.25 kV 1 Current condition tested over a 10 ms time interval. Rev. 0 | Page 7 of 9 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Timing Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Description Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
