Datasheet AD7981-KGD (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | High Temperature, 16-Bit, 600 kSPS PulSAR ADC |
| Pages / Page | 9 / 6 — AD7981-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. … |
| Revision | A |
| File Format / Size | PDF / 253 Kb |
| Document Language | English |

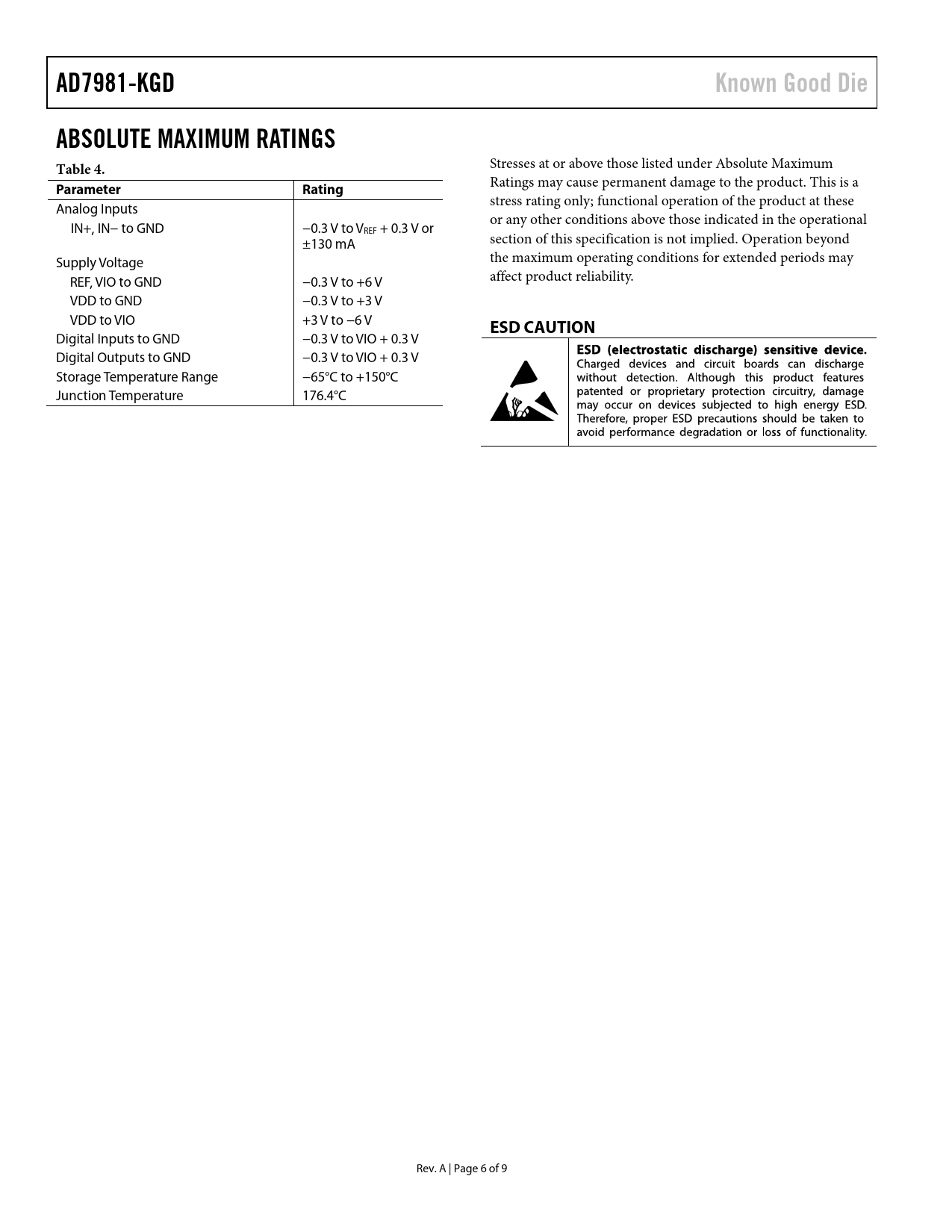

AD7981-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD7981-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Analog Inputs or any other conditions above those indicated in the operational IN+, IN− to GND −0.3 V to VREF + 0.3 V or ±130 mA section of this specification is not implied. Operation beyond Supply Voltage the maximum operating conditions for extended periods may REF, VIO to GND −0.3 V to +6 V affect product reliability. VDD to GND −0.3 V to +3 V VDD to VIO +3 V to −6 V
ESD CAUTION
Digital Inputs to GND −0.3 V to VIO + 0.3 V Digital Outputs to GND −0.3 V to VIO + 0.3 V Storage Temperature Range −65°C to +150°C Junction Temperature 176.4°C Rev. A | Page 6 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
