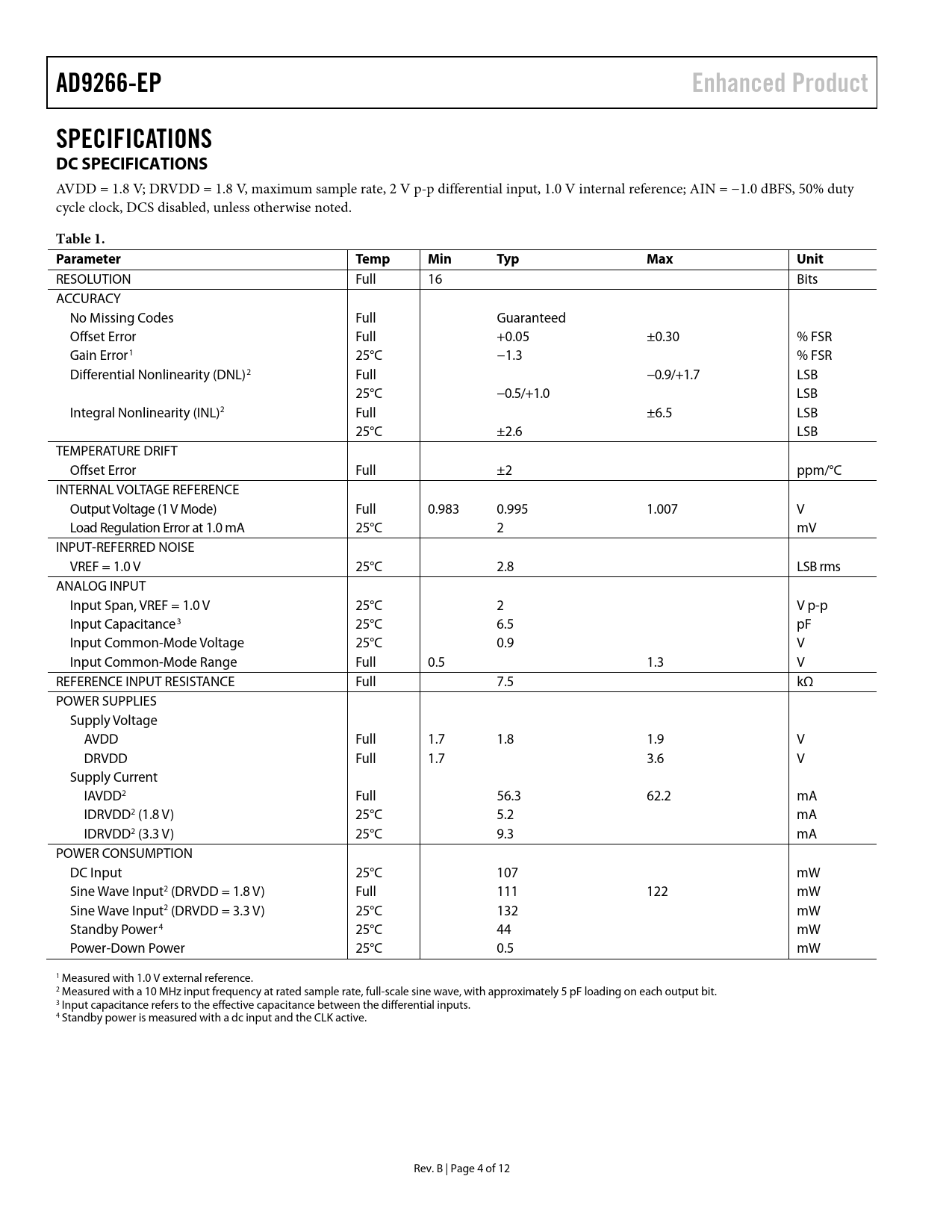

AD9266-EP. Enhanced Product. SPECIFICATIONS DC SPECIFICATIONS. Table 1. Parameter. Temp. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
AD9266-EP Enhanced Product SPECIFICATIONS DC SPECIFICATIONS
AVDD = 1.8 V; DRVDD = 1.8 V, maximum sample rate, 2 V p-p differential input, 1.0 V internal reference; AIN = −1.0 dBFS, 50% duty cycle clock, DCS disabled, unless otherwise noted.
Table 1. Parameter Temp Min Typ Max Unit
RESOLUTION Full 16 Bits ACCURACY No Missing Codes Full Guaranteed Offset Error Full +0.05 ±0.30 % FSR Gain Error1 25°C −1.3 % FSR Differential Nonlinearity (DNL)2 Full −0.9/+1.7 LSB 25°C −0.5/+1.0 LSB Integral Nonlinearity (INL)2 Full ±6.5 LSB 25°C ±2.6 LSB TEMPERATURE DRIFT Offset Error Full ±2 ppm/°C INTERNAL VOLTAGE REFERENCE Output Voltage (1 V Mode) Full 0.983 0.995 1.007 V Load Regulation Error at 1.0 mA 25°C 2 mV INPUT-REFERRED NOISE VREF = 1.0 V 25°C 2.8 LSB rms ANALOG INPUT Input Span, VREF = 1.0 V 25°C 2 V p-p Input Capacitance3 25°C 6.5 pF Input Common-Mode Voltage 25°C 0.9 V Input Common-Mode Range Full 0.5 1.3 V REFERENCE INPUT RESISTANCE Full 7.5 kΩ POWER SUPPLIES Supply Voltage AVDD Full 1.7 1.8 1.9 V DRVDD Full 1.7 3.6 V Supply Current IAVDD2 Full 56.3 62.2 mA IDRVDD2 (1.8 V) 25°C 5.2 mA IDRVDD2 (3.3 V) 25°C 9.3 mA POWER CONSUMPTION DC Input 25°C 107 mW Sine Wave Input2 (DRVDD = 1.8 V) Full 111 122 mW Sine Wave Input2 (DRVDD = 3.3 V) 25°C 132 mW Standby Power4 25°C 44 mW Power-Down Power 25°C 0.5 mW 1 Measured with 1.0 V external reference. 2 Measured with a 10 MHz input frequency at rated sample rate, ful -scale sine wave, with approximately 5 pF loading on each output bit. 3 Input capacitance refers to the effective capacitance between the differential inputs. 4 Standby power is measured with a dc input and the CLK active. Rev. B | Page 4 of 12 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS ORDERING GUIDE
