LTC6655/LTC6655LN

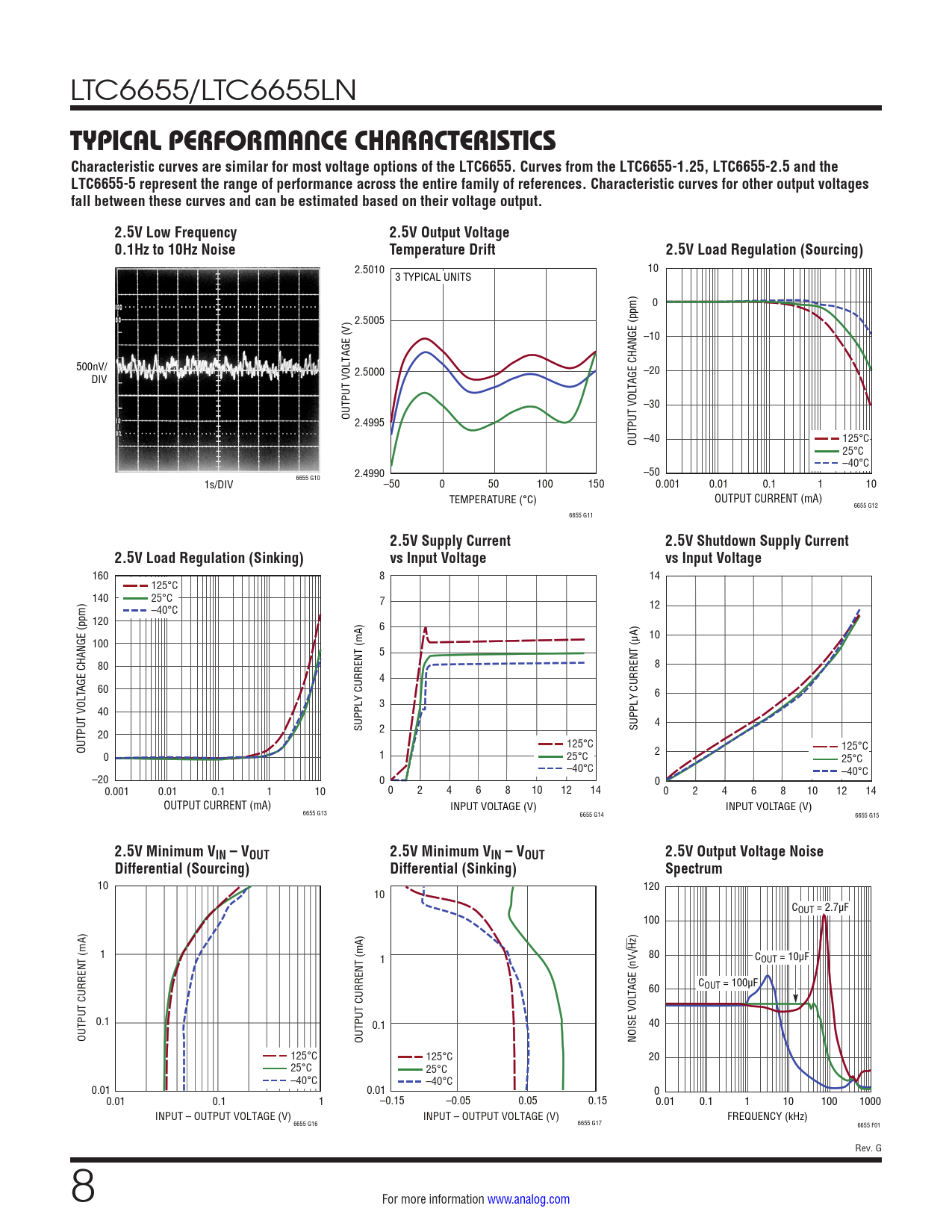

TYPICAL PERFORMANCE CHARACTERISTICS Characteristic curves are similar for most voltage options of the LTC6655. Curves from the LTC6655-1.25, LTC6655-2.5 and the LTC6655-5 represent the range of performance across the entire family of references. Characteristic curves for other output voltages fall between these curves and can be estimated based on their voltage output. 2.5V Low Frequency 2.5V Output Voltage 0.1Hz to 10Hz Noise Temperature Drift 2.5V Load Regulation (Sourcing)
2.5010 10 3 TYPICAL UNITS 0 2.5005 –10 500nV/ 2.5000 –20 DIV TAGE CHANGE (ppm) –30 OUTPUT VOLTAGE (V) 2.4995 OUTPUT VOL –40 125°C 25°C –40°C 2.4990 –50 6655 G10 1s/DIV –50 0 50 100 150 0.001 0.01 0.1 1 10 TEMPERATURE (°C) OUTPUT CURRENT (mA) 6655 G12 6655 G11
2.5V Supply Current 2.5V Shutdown Supply Current 2.5V Load Regulation (Sinking) vs Input Voltage vs Input Voltage
160 8 14 125°C 140 25°C 7 –40°C 12 120 6 10 100 5 80 8 4 TAGE CHANGE (ppm) 60 6 3 40 SUPPLY CURRENT (mA) SUPPLY CURRENT (µA) 4 20 2 OUTPUT VOL 125°C 125°C 0 1 25°C 2 25°C –40°C –40°C –20 0 0 0.001 0.01 0.1 1 10 0 2 4 6 8 10 12 14 0 2 4 6 8 10 12 14 OUTPUT CURRENT (mA) INPUT VOLTAGE (V) INPUT VOLTAGE (V) 6655 G13 6655 G14 6655 G15
2.5V Minimum VIN – VOUT 2.5V Minimum VIN – VOUT 2.5V Output Voltage Noise Differential (Sourcing) Differential (Sinking) Spectrum
10 120 10 COUT = 2.7µF 100 ) 1 √Hz 1 80 COUT = 10µF COUT = 100µF 60 TAGE (nV 0.1 0.1 40 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) NOISE VOL 125°C 125°C 20 25°C 25°C –40°C –40°C 0.01 0.01 0 0.01 0.1 1 –0.15 –0.05 0.05 0.15 0.01 0.1 1 10 100 1000 INPUT – OUTPUT VOLTAGE (V) INPUT – OUTPUT VOLTAGE (V) FREQUENCY (kHz) 6655 G16 6655 G17 6655 F01 Rev. G 8 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
