Datasheet ADR441-EP (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Ultralow Noise, LDO XFET® 2.5V Voltage Reference w/Current Sink and Source |
| Pages / Page | 8 / 5 — Enhanced Product. ADR441-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. … |
| File Format / Size | PDF / 160 Kb |
| Document Language | English |

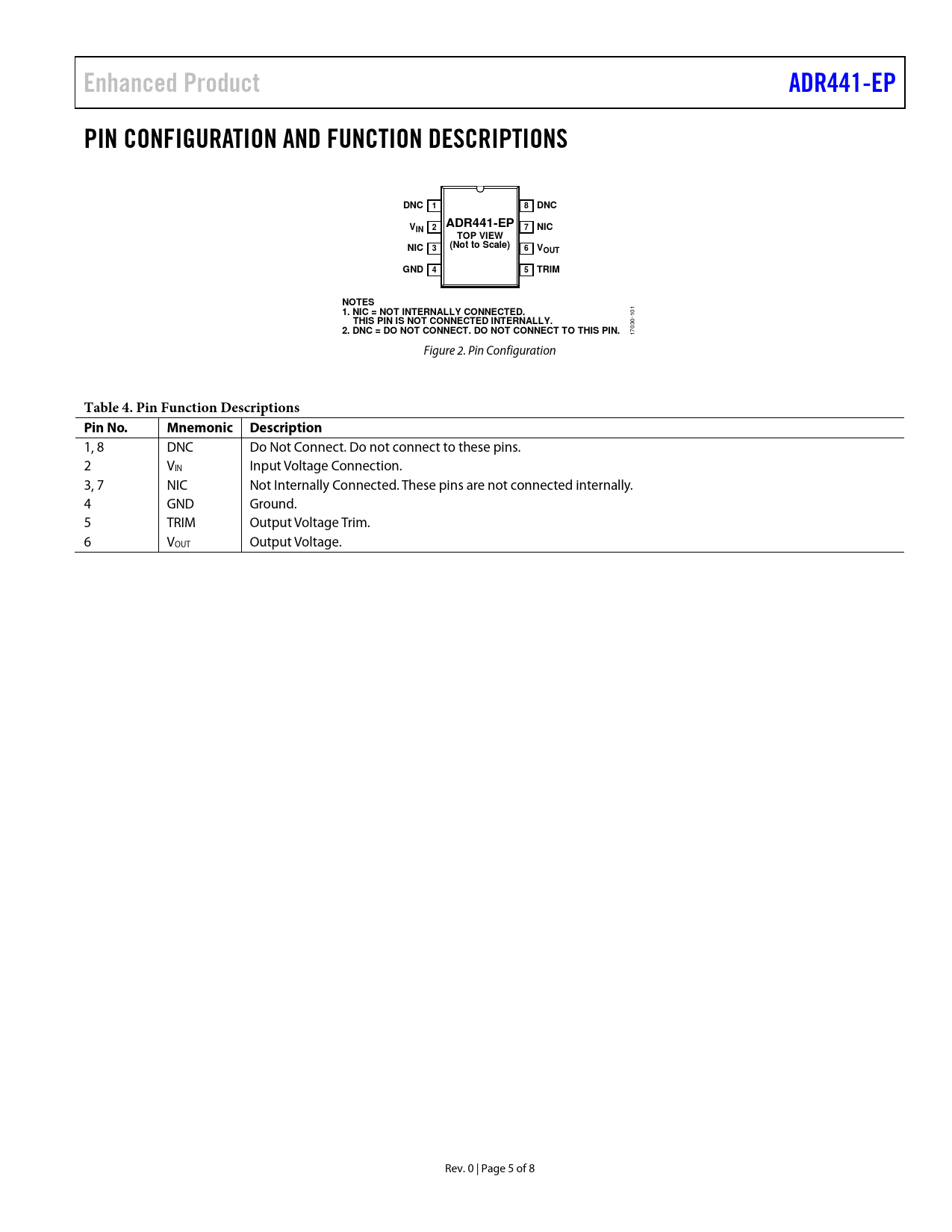

Enhanced Product. ADR441-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. DNC. NIC. TOP VIEW. (Not to Scale). VOUT. GND. TRIM
Model Line for this Datasheet
Text Version of Document
Enhanced Product ADR441-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS DNC 1 8 DNC V ADR441-EP IN 2 7 NIC TOP VIEW NIC 3 (Not to Scale) 6 VOUT GND 4 5 TRIM NOTES 1. NIC = NOT INTERNALLY CONNECTED.
101
THIS PIN IS NOT CONNECTED INTERNALLY. 2. DNC = DO NOT CONNECT. DO NOT CONNECT TO THIS PIN.
17030- Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1, 8 DNC Do Not Connect. Do not connect to these pins. 2 VIN Input Voltage Connection. 3, 7 NIC Not Internally Connected. These pins are not connected internally. 4 GND Ground. 5 TRIM Output Voltage Trim. 6 VOUT Output Voltage. Rev. 0 | Page 5 of 8 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUIT GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
