Datasheet ADR441-EP (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Ultralow Noise, LDO XFET® 2.5V Voltage Reference w/Current Sink and Source |
| Pages / Page | 8 / 8 — ADR441-EP. Enhanced Product. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 … |
| File Format / Size | PDF / 160 Kb |
| Document Language | English |
ADR441-EP. Enhanced Product. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 (0.1890). 4.00 (0.1574). 6.20 (0.2441). 3.80 (0.1497)
Model Line for this Datasheet
Text Version of Document
ADR441-EP Enhanced Product OUTLINE DIMENSIONS 5.00 (0.1968) 4.80 (0.1890) 8 5 4.00 (0.1574) 6.20 (0.2441) 1 3.80 (0.1497) 5.80 (0.2284) 4 1.27 (0.0500) 0.50 (0.0196) 45° BSC 1.75 (0.0688) 0.25 (0.0099) 1.35 (0.0532) 0.25 (0.0098) 8° 0.10 (0.0040) 0° COPLANARITY 0.51 (0.0201) 1.27 (0.0500) 0.10 0.31 (0.0122) 0.25 (0.0098) SEATING 0.40 (0.0157) PLANE 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AA CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS A-7 (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR 0 4 2 REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 1 0

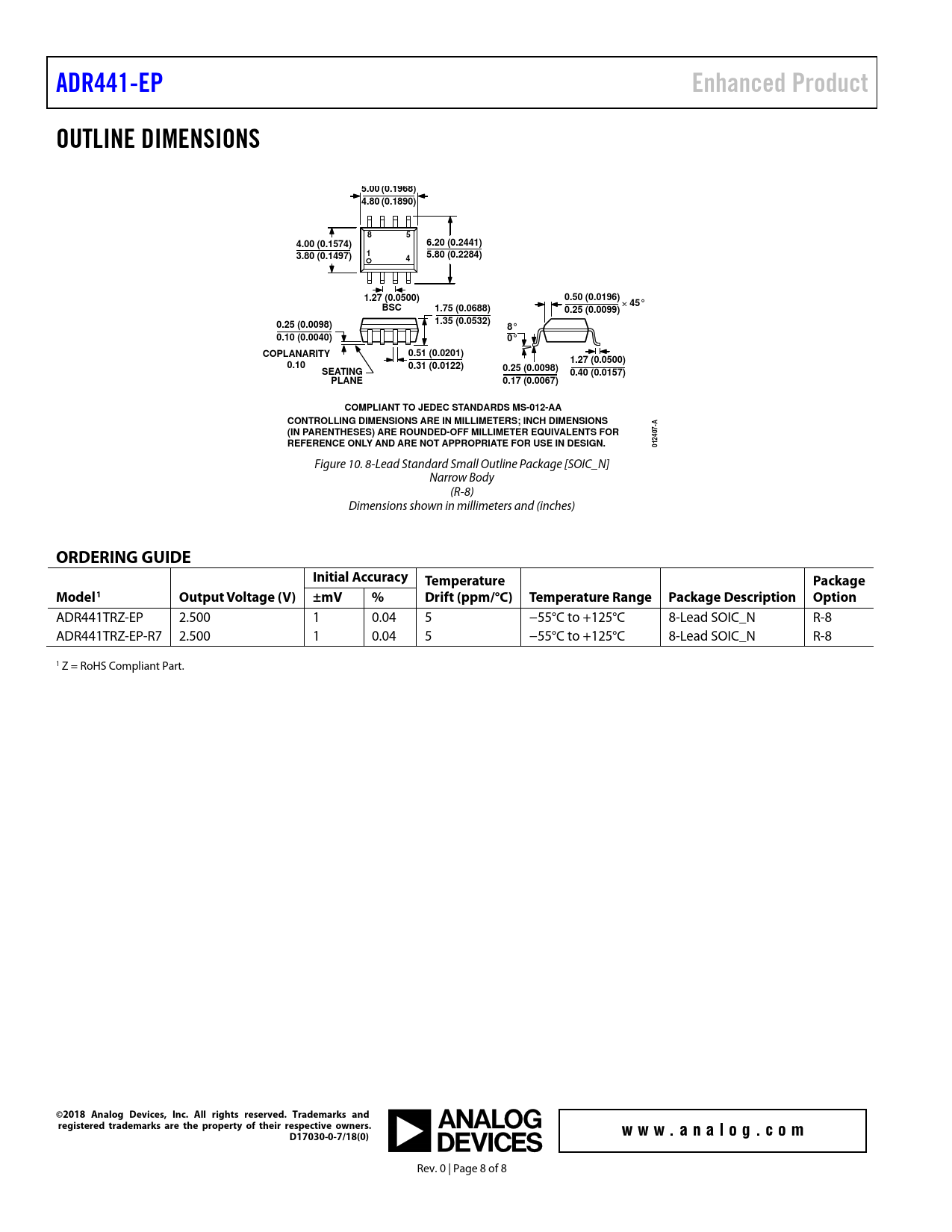

Figure 10. 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8) Dimensions shown in millimeters and (inches)
ORDERING GUIDE Initial Accuracy Temperature Package Model1 Output Voltage (V) ±mV % Drift (ppm/°C) Temperature Range Package Description Option
ADR441TRZ-EP 2.500 1 0.04 5 −55°C to +125°C 8-Lead SOIC_N R-8 ADR441TRZ-EP-R7 2.500 1 0.04 5 −55°C to +125°C 8-Lead SOIC_N R-8 1 Z = RoHS Compliant Part.
