Datasheet HMC8121 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 81 GHz to 86 GHz, E-Band Variable Gain Amplifier |
| Pages / Page | 16 / 4 — HMC8121. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table … |
| Revision | B |
| File Format / Size | PDF / 352 Kb |
| Document Language | English |

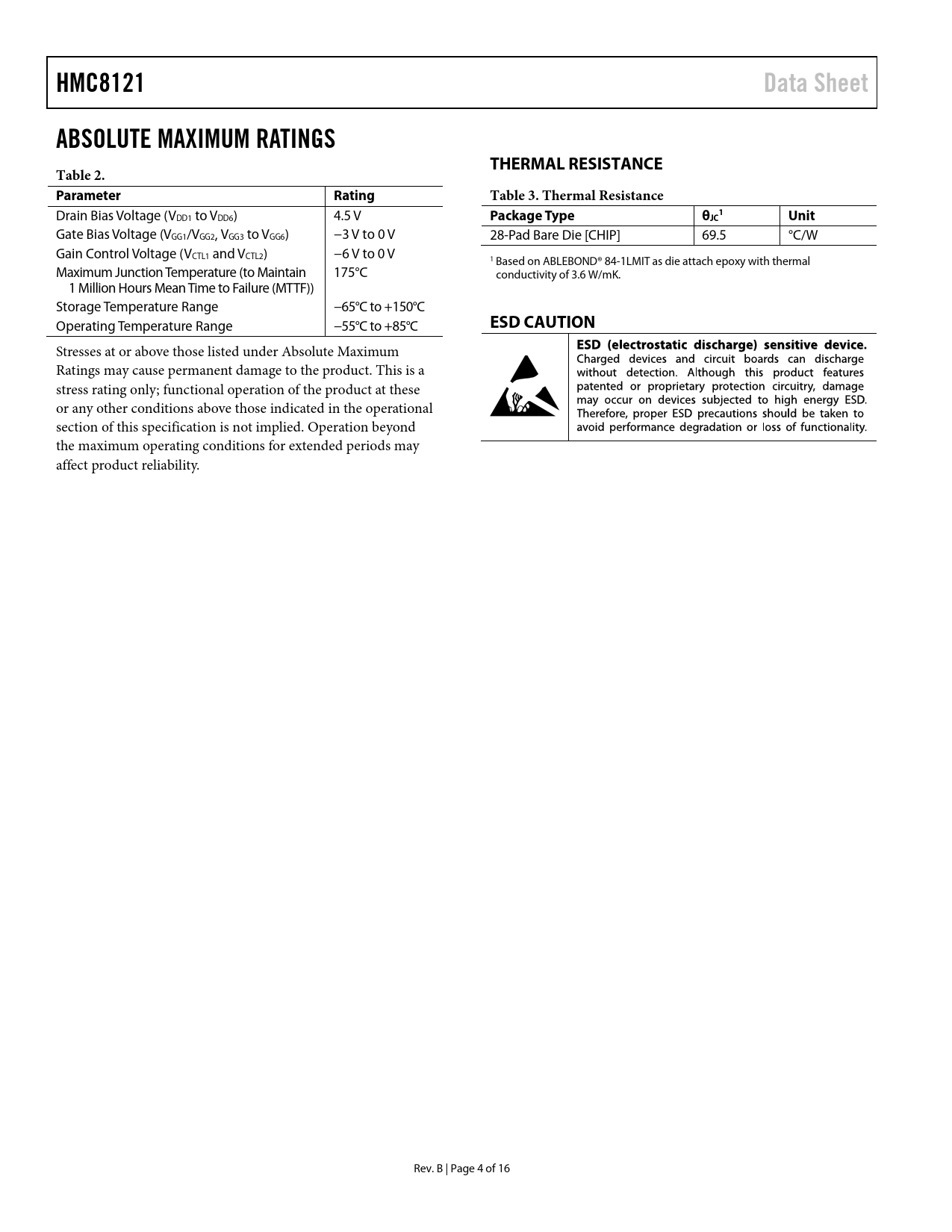

HMC8121. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter. Rating. Table 3. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
HMC8121 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating Table 3. Thermal Resistance
Drain Bias Voltage (V
1
DD1 to VDD6) 4.5 V
Package Type θJC Unit
Gate Bias Voltage (VGG1/VGG2, VGG3 to VGG6) −3 V to 0 V 28-Pad Bare Die [CHIP] 69.5 °C/W Gain Control Voltage (VCTL1 and VCTL2) −6 V to 0 V 1 Based on ABLEBOND® 84-1LMIT as die attach epoxy with thermal Maximum Junction Temperature (to Maintain 175°C conductivity of 3.6 W/mK. 1 Million Hours Mean Time to Failure (MTTF)) Storage Temperature Range −65°C to +150°C Operating Temperature Range −55°C to +85°C
