Datasheet ADL5243 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 100 MHz TO 4000 MHz RF/IF Digitally Controlled VGA |
| Pages / Page | 40 / 4 — ADL5243. Data Sheet. Parameter. Conditions. Min. Typ. Max. Unit |
| Revision | B |
| File Format / Size | PDF / 1.5 Mb |
| Document Language | English |

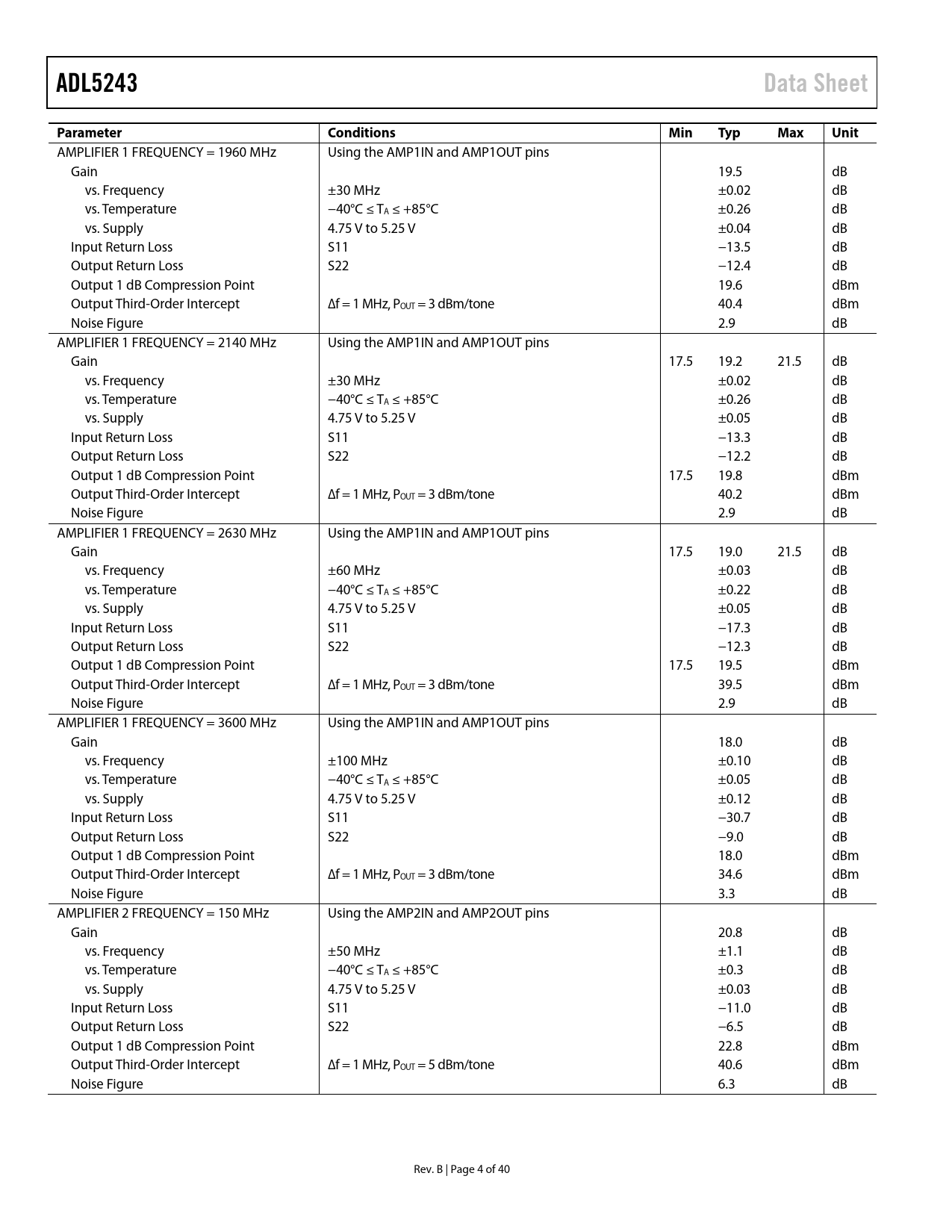

ADL5243. Data Sheet. Parameter. Conditions. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
ADL5243 Data Sheet Parameter Conditions Min Typ Max Unit
AMPLIFIER 1 FREQUENCY = 1960 MHz Using the AMP1IN and AMP1OUT pins Gain 19.5 dB vs. Frequency ±30 MHz ±0.02 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.26 dB vs. Supply 4.75 V to 5.25 V ±0.04 dB Input Return Loss S11 −13.5 dB Output Return Loss S22 −12.4 dB Output 1 dB Compression Point 19.6 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 40.4 dBm Noise Figure 2.9 dB AMPLIFIER 1 FREQUENCY = 2140 MHz Using the AMP1IN and AMP1OUT pins Gain 17.5 19.2 21.5 dB vs. Frequency ±30 MHz ±0.02 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.26 dB vs. Supply 4.75 V to 5.25 V ±0.05 dB Input Return Loss S11 −13.3 dB Output Return Loss S22 −12.2 dB Output 1 dB Compression Point 17.5 19.8 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 40.2 dBm Noise Figure 2.9 dB AMPLIFIER 1 FREQUENCY = 2630 MHz Using the AMP1IN and AMP1OUT pins Gain 17.5 19.0 21.5 dB vs. Frequency ±60 MHz ±0.03 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.22 dB vs. Supply 4.75 V to 5.25 V ±0.05 dB Input Return Loss S11 −17.3 dB Output Return Loss S22 −12.3 dB Output 1 dB Compression Point 17.5 19.5 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 39.5 dBm Noise Figure 2.9 dB AMPLIFIER 1 FREQUENCY = 3600 MHz Using the AMP1IN and AMP1OUT pins Gain 18.0 dB vs. Frequency ±100 MHz ±0.10 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.05 dB vs. Supply 4.75 V to 5.25 V ±0.12 dB Input Return Loss S11 −30.7 dB Output Return Loss S22 −9.0 dB Output 1 dB Compression Point 18.0 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 34.6 dBm Noise Figure 3.3 dB AMPLIFIER 2 FREQUENCY = 150 MHz Using the AMP2IN and AMP2OUT pins Gain 20.8 dB vs. Frequency ±50 MHz ±1.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.3 dB vs. Supply 4.75 V to 5.25 V ±0.03 dB Input Return Loss S11 −11.0 dB Output Return Loss S22 −6.5 dB Output 1 dB Compression Point 22.8 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 5 dBm/tone 40.6 dBm Noise Figure 6.3 dB Rev. B | Page 4 of 40 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Basic Layout Connections Amplifier 1 Power Supply Amplifier 1 RF Input Interface Amplifier 1 RF Output Interface Amplifier 2 Power Supply Amplifier 2 RF Input Interface Amplifier 2 RF Output Interface DSA RF Input Interface DSA RF Output Interface DSA SPI Interface SPI Timing SPI Timing Sequence ADL5243 Amplifier 2 Matching ADL5243 Loop Performance Proper Driving Level for the Optimum ACLR Thermal Considerations Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
AMPLIFIER 1 FREQUENCY = 1960 MHz Using the AMP1IN and AMP1OUT pins Gain 19.5 dB vs. Frequency ±30 MHz ±0.02 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.26 dB vs. Supply 4.75 V to 5.25 V ±0.04 dB Input Return Loss S11 −13.5 dB Output Return Loss S22 −12.4 dB Output 1 dB Compression Point 19.6 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 40.4 dBm Noise Figure 2.9 dB AMPLIFIER 1 FREQUENCY = 2140 MHz Using the AMP1IN and AMP1OUT pins Gain 17.5 19.2 21.5 dB vs. Frequency ±30 MHz ±0.02 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.26 dB vs. Supply 4.75 V to 5.25 V ±0.05 dB Input Return Loss S11 −13.3 dB Output Return Loss S22 −12.2 dB Output 1 dB Compression Point 17.5 19.8 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 40.2 dBm Noise Figure 2.9 dB AMPLIFIER 1 FREQUENCY = 2630 MHz Using the AMP1IN and AMP1OUT pins Gain 17.5 19.0 21.5 dB vs. Frequency ±60 MHz ±0.03 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.22 dB vs. Supply 4.75 V to 5.25 V ±0.05 dB Input Return Loss S11 −17.3 dB Output Return Loss S22 −12.3 dB Output 1 dB Compression Point 17.5 19.5 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 39.5 dBm Noise Figure 2.9 dB AMPLIFIER 1 FREQUENCY = 3600 MHz Using the AMP1IN and AMP1OUT pins Gain 18.0 dB vs. Frequency ±100 MHz ±0.10 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.05 dB vs. Supply 4.75 V to 5.25 V ±0.12 dB Input Return Loss S11 −30.7 dB Output Return Loss S22 −9.0 dB Output 1 dB Compression Point 18.0 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 34.6 dBm Noise Figure 3.3 dB AMPLIFIER 2 FREQUENCY = 150 MHz Using the AMP2IN and AMP2OUT pins Gain 20.8 dB vs. Frequency ±50 MHz ±1.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.3 dB vs. Supply 4.75 V to 5.25 V ±0.03 dB Input Return Loss S11 −11.0 dB Output Return Loss S22 −6.5 dB Output 1 dB Compression Point 22.8 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 5 dBm/tone 40.6 dBm Noise Figure 6.3 dB Rev. B | Page 4 of 40 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Basic Layout Connections Amplifier 1 Power Supply Amplifier 1 RF Input Interface Amplifier 1 RF Output Interface Amplifier 2 Power Supply Amplifier 2 RF Input Interface Amplifier 2 RF Output Interface DSA RF Input Interface DSA RF Output Interface DSA SPI Interface SPI Timing SPI Timing Sequence ADL5243 Amplifier 2 Matching ADL5243 Loop Performance Proper Driving Level for the Optimum ACLR Thermal Considerations Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
