Datasheet BC846DS (NXP) - 7
| Manufacturer | NXP |
| Description | 65 V, 100 mA NPN/NPN general-purpose transistor pair |
| Pages / Page | 12 / 7 — NXP Semiconductors. BC846DS. 65 V, 100 mA NPN/NPN general-purpose … |
| File Format / Size | PDF / 105 Kb |
| Document Language | English |
NXP Semiconductors. BC846DS. 65 V, 100 mA NPN/NPN general-purpose transistor. Fig 9. Per transistor: Collector capacitance as a
Model Line for this Datasheet
Text Version of Document
NXP Semiconductors BC846DS 65 V, 100 mA NPN/NPN general-purpose transistor
006aab620 006aaa539 6 15 Ce Cc (pF) (pF) 13 4 11 9 2 7 0 5 0 2 4 6 8 10 0 2 4 6 VCB (V) VEB (V) f = 1 MHz; Tamb = 25 °C f = 1 MHz; Tamb = 25 °C

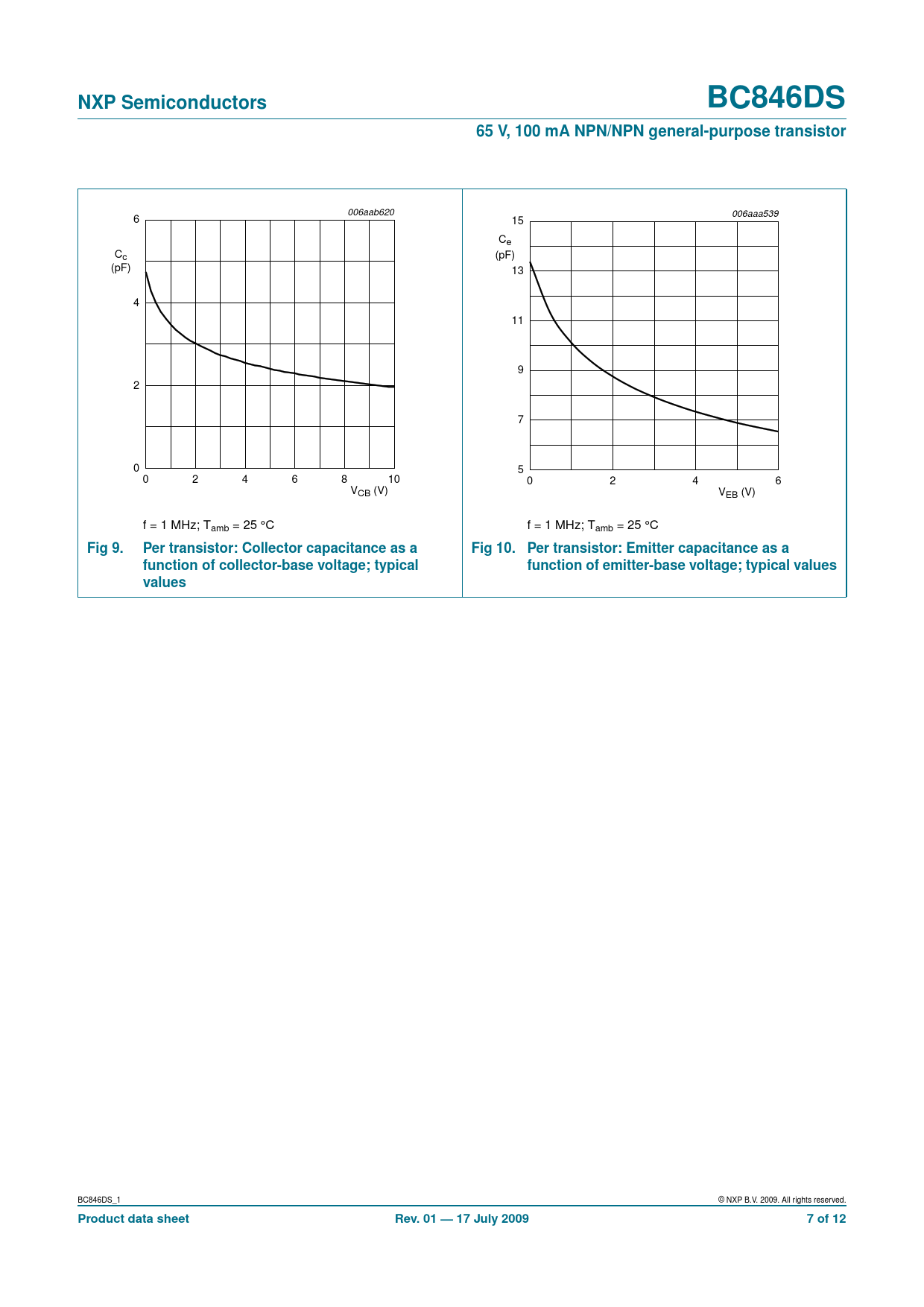

Fig 9. Per transistor: Collector capacitance as a Fig 10. Per transistor: Emitter capacitance as a function of collector-base voltage; typical function of emitter-base voltage; typical values values
