BC846AW-BC848CW. NPN SMALL SIGNAL TRANSISTOR IN SOT323. Features. Mechanical Data
Model Line for this Datasheet
Text Version of Document

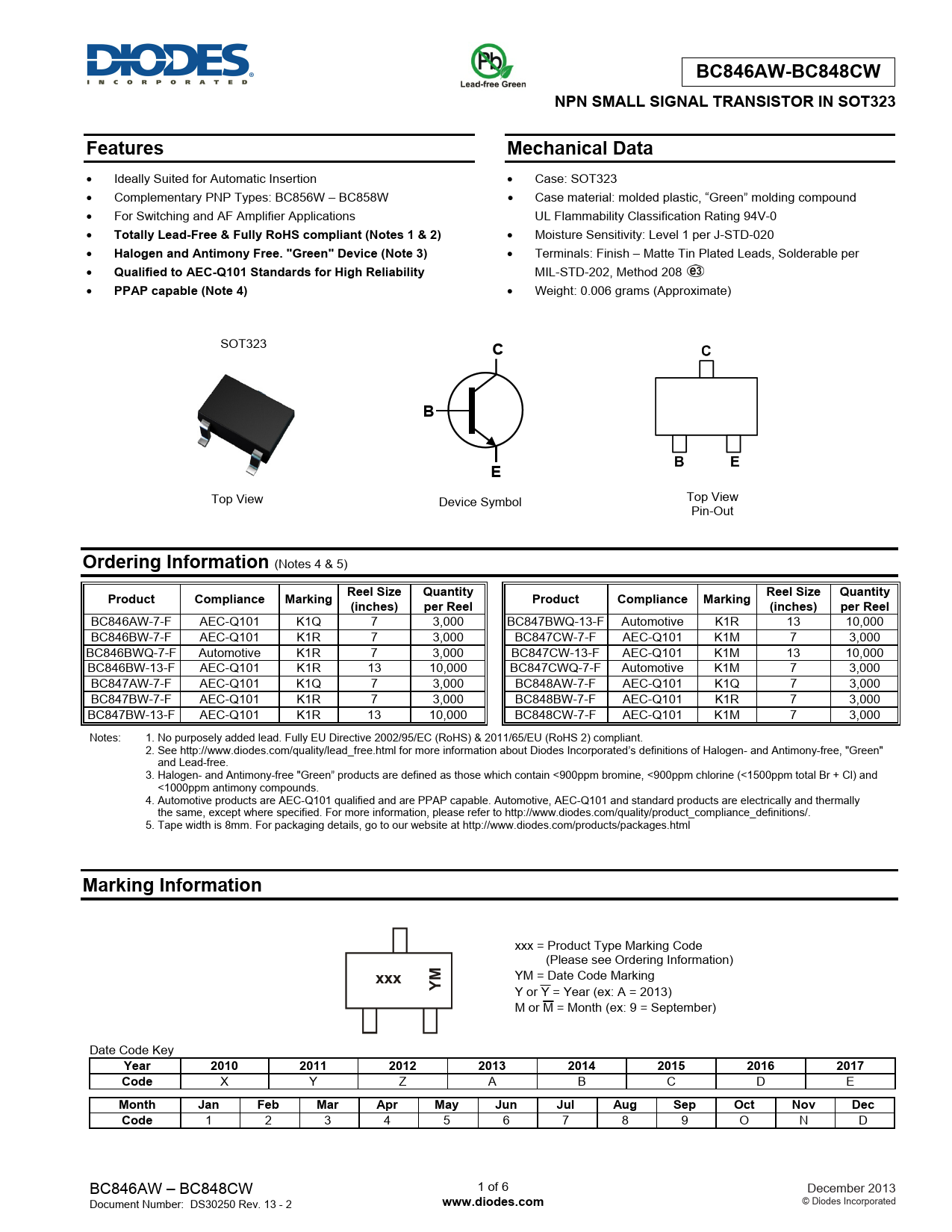

BC846AW-BC848CW NPN SMALL SIGNAL TRANSISTOR IN SOT323 Features Mechanical Data
Ideally Suited for Automatic Insertion Case: SOT323 Complementary PNP Types: BC856W – BC858W Case material: molded plastic, “Green” molding compound For Switching and AF Amplifier Applications UL Flammability Classification Rating 94V-0
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Moisture Sensitivity: Level 1 per J-STD-020
Halogen and Antimony Free. "Green" Device (Note 3)
Terminals: Finish – Matte Tin Plated Leads, Solderable per
Qualified to AEC-Q101 Standards for High Reliability
MIL-STD-202, Method 208
PPAP capable (Note 4)
Weight: 0.006 grams (Approximate) SOT323
C B E
Top View Device Symbol Top View Pin-Out
Ordering Information
(Notes 4 & 5)
Reel Size Quantity Reel Size Quantity Product Compliance Marking Product Compliance Marking (inches) per Reel (inches) per Reel
BC846AW-7-F AEC-Q101 K1Q 7 3,000 BC847BWQ-13-F Automotive K1R 13 10,000 BC846BW-7-F AEC-Q101 K1R 7 3,000 BC847CW-7-F AEC-Q101 K1M 7 3,000 BC846BWQ-7-F Automotive K1R 7 3,000 BC847CW-13-F AEC-Q101 K1M 13 10,000 BC846BW-13-F AEC-Q101 K1R 13 10,000 BC847CWQ-7-F Automotive K1M 7 3,000 BC847AW-7-F AEC-Q101 K1Q 7 3,000 BC848AW-7-F AEC-Q101 K1Q 7 3,000 BC847BW-7-F AEC-Q101 K1R 7 3,000 BC848BW-7-F AEC-Q101 K1R 7 3,000 BC847BW-13-F AEC-Q101 K1R 13 10,000 BC848CW-7-F AEC-Q101 K1M 7 3,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/. 5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
xxx = Product Type Marking Code (Please see Ordering Information)
xxx
YM = Date Code Marking
YM
Y or Y = Year (ex: A = 2013) M or M = Month (ex: 9 = September) Date Code Key
Year 2010 2011 2012 2013 2014 2015 2016 2017 Code
X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D BC846AW – BC848CW 1 of 6 December 2013 Document Number: DS30250 Rev. 13 - 2
