Datasheet BC846AW, BC846BW, BC847AW, BC847BW, BC847CW, BC848AW, BC848BW, BC848CW (Diodes) - 2
| Manufacturer | Diodes |
| Description | NPN |
| Pages / Page | 6 / 2 — BC846AW-BC848CW. Absolute Maximum Ratings. Characteristic Symbol. Value. … |
| Revision | 13-2 |
| File Format / Size | PDF / 202 Kb |
| Document Language | English |
BC846AW-BC848CW. Absolute Maximum Ratings. Characteristic Symbol. Value. Unit. Thermal Characteristics. ESD Ratings. JEDEC. Class
Model Line for this Datasheet
Text Version of Document

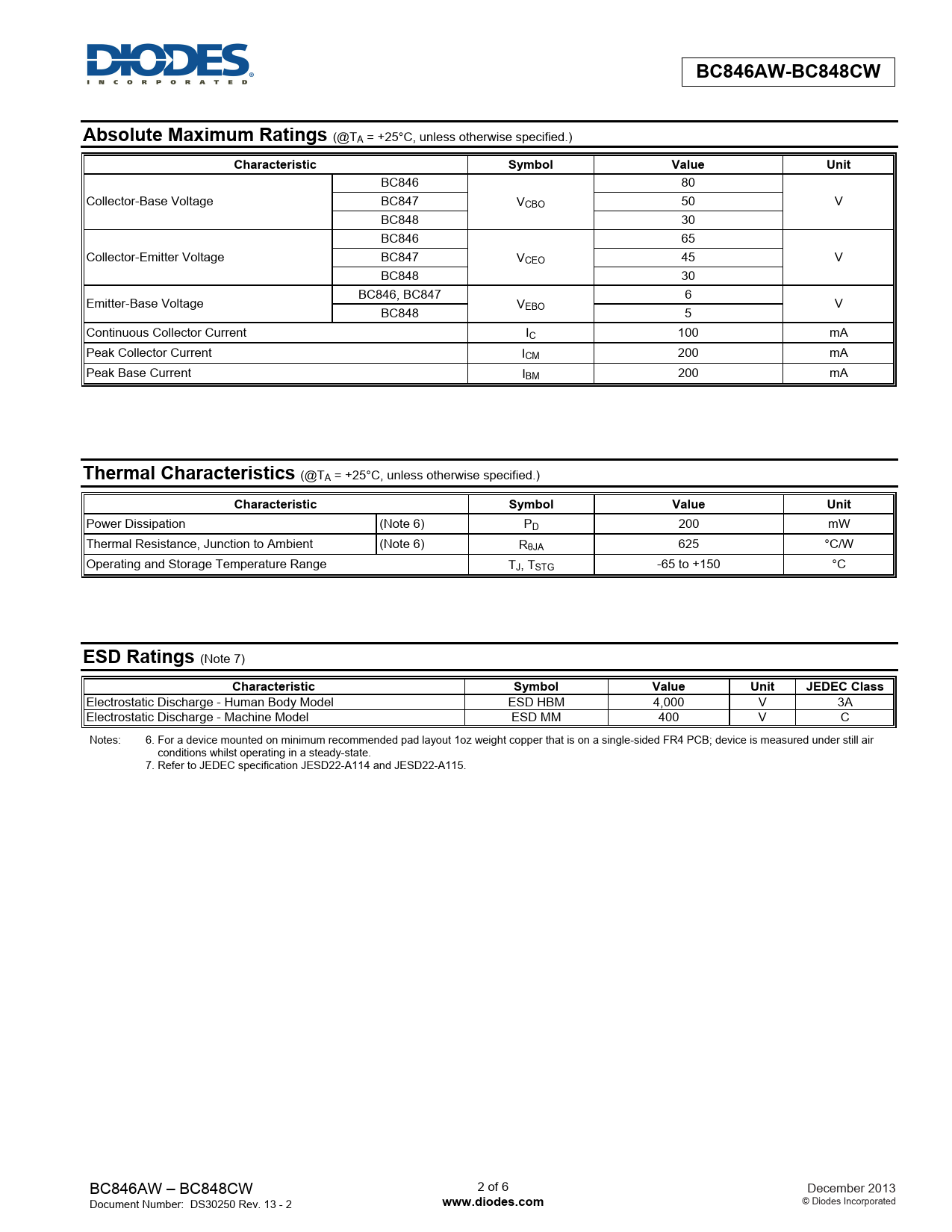

BC846AW-BC848CW Absolute Maximum Ratings
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
BC846 80 Collector-Base Voltage BC847 VCBO V 50 BC848 30 BC846 65 Collector-Emitter Voltage BC847 VCEO V 45 BC848 30 BC846, BC847 6 Emitter-Base Voltage VEBO V BC848 5 Continuous Collector Current IC 100 mA Peak Collector Current ICM 200 mA Peak Base Current IBM 200 mA
Thermal Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Power Dissipation (Note 6) PD 200 mW Thermal Resistance, Junction to Ambient (Note 6) RθJA 625 °C/W Operating and Storage Temperature Range TJ, TSTG -65 to +150 °C
ESD Ratings
(Note 7)
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge - Human Body Model ESD HBM 4,000 V 3A Electrostatic Discharge - Machine Model ESD MM 400 V C Notes: 6. For a device mounted on minimum recommended pad layout 1oz weight copper that is on a single-sided FR4 PCB; device is measured under still air conditions whilst operating in a steady-state. 7. Refer to JEDEC specification JESD22-A114 and JESD22-A115. BC846AW – BC848CW 2 of 6 December 2013 Document Number: DS30250 Rev. 13 - 2
www.diodes.com
© Diodes Incorporated
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
BC846 80 Collector-Base Voltage BC847 VCBO V 50 BC848 30 BC846 65 Collector-Emitter Voltage BC847 VCEO V 45 BC848 30 BC846, BC847 6 Emitter-Base Voltage VEBO V BC848 5 Continuous Collector Current IC 100 mA Peak Collector Current ICM 200 mA Peak Base Current IBM 200 mA
Thermal Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Power Dissipation (Note 6) PD 200 mW Thermal Resistance, Junction to Ambient (Note 6) RθJA 625 °C/W Operating and Storage Temperature Range TJ, TSTG -65 to +150 °C
ESD Ratings
(Note 7)
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge - Human Body Model ESD HBM 4,000 V 3A Electrostatic Discharge - Machine Model ESD MM 400 V C Notes: 6. For a device mounted on minimum recommended pad layout 1oz weight copper that is on a single-sided FR4 PCB; device is measured under still air conditions whilst operating in a steady-state. 7. Refer to JEDEC specification JESD22-A114 and JESD22-A115. BC846AW – BC848CW 2 of 6 December 2013 Document Number: DS30250 Rev. 13 - 2
