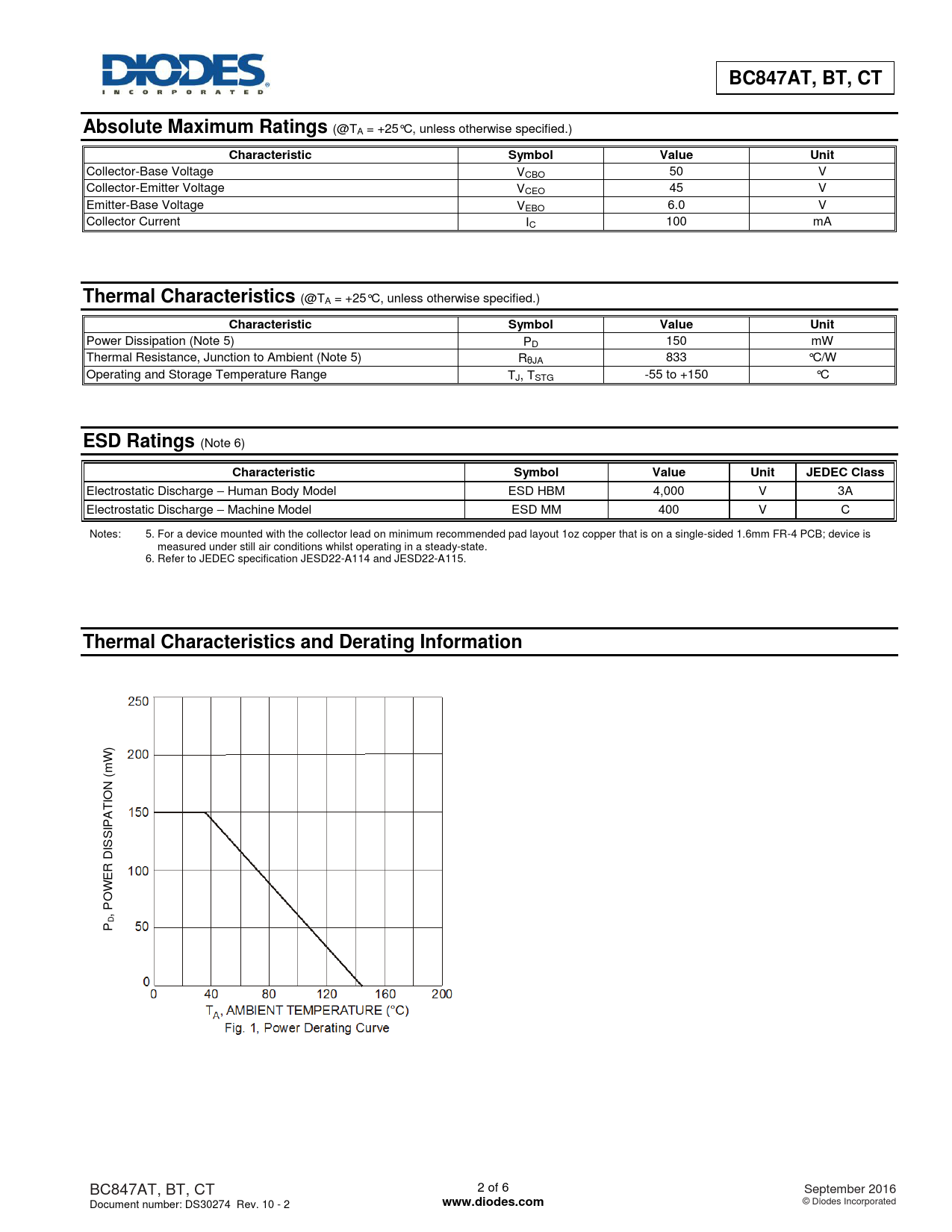

BC847AT, BT, CT Absolute Maximum Ratings
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Collector-Base Voltage VCBO 50 V Collector-Emitter Voltage VCEO 45 V Emitter-Base Voltage VEBO 6.0 V Collector Current IC 100 mA
Thermal Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Power Dissipation (Note 5) PD 150 mW Thermal Resistance, Junction to Ambient (Note 5) RθJA 833 °C/W Operating and Storage Temperature Range TJ, TSTG -55 to +150 °C
ESD Ratings
(Note 6)
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge – Human Body Model ESD HBM 4,000 V 3A Electrostatic Discharge – Machine Model ESD MM 400 V C Notes: 5. For a device mounted with the collector lead on minimum recommended pad layout 1oz copper that is on a single-sided 1.6mm FR-4 PCB; device is measured under still air conditions whilst operating in a steady-state. 6. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
Thermal Characteristics and Derating Information
mW)( ONITAPISSID RE OW P ,DP BC847AT, BT, CT 2 of 6 September 2016 Document number: DS30274 Rev. 10 - 2
