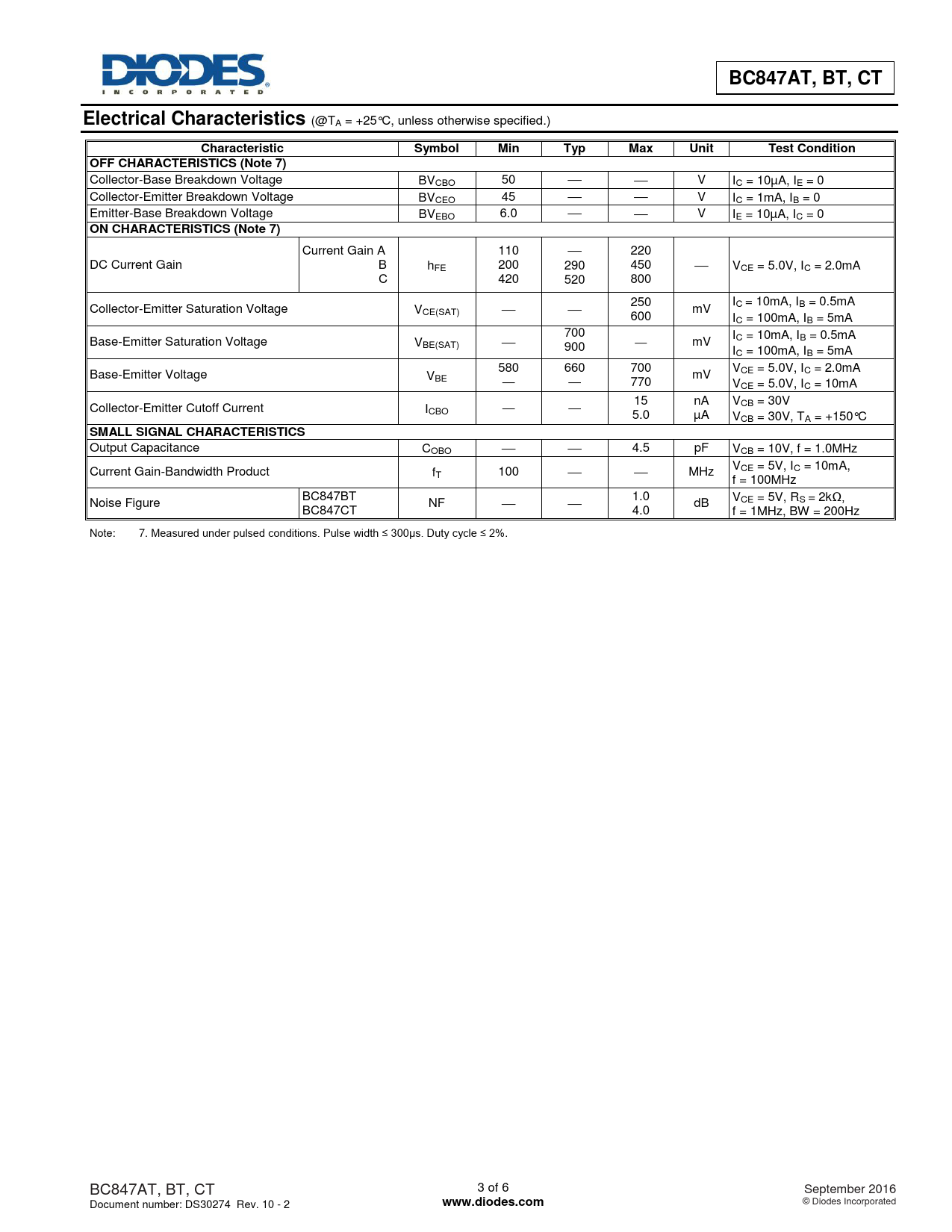

BC847AT, BT, CT Electrical Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Min Typ Max Unit Test Condition OFF CHARACTERISTICS (Note 7)
Collector-Base Breakdown Voltage BVCBO 50   V IC = 10µA, IE = 0 Collector-Emitter Breakdown Voltage BVCEO 45   V IC = 1mA, IB = 0 Emitter-Base Breakdown Voltage BVEBO 6.0   V IE = 10µA, IC = 0
ON CHARACTERISTICS (Note 7)
Current Gain A 110  220 DC Current Gain B hFE 200 290 450  VCE = 5.0V, IC = 2.0mA C 420 520 800 250 I Collector-Emitter Saturation Voltage V C = 10mA, IB = 0.5mA CE(SAT)   mV 600 IC = 100mA, IB = 5mA 700 I Base-Emitter Saturation Voltage V  C = 10mA, IB = 0.5mA BE(SAT)  900 mV IC = 100mA, IB = 5mA 580 660 700 V Base-Emitter Voltage CE = 5.0V, IC = 2.0mA VBE — mV — 770 VCE = 5.0V, IC = 10mA 15 nA V Collector-Emitter Cutoff Current I CB = 30V CBO — — 5.0 µA VCB = 30V, TA = +150°C
SMALL SIGNAL CHARACTERISTICS
Output Capacitance COBO   4.5 pF VCB = 10V, f = 1.0MHz V Current Gain-Bandwidth Product f CE = 5V, IC = 10 A, T 100   MHz f = 100MHz BC847BT 1.0 V Noise Figure NF   dB CE = 5V, RS = 2kΩ, BC847CT 4.0 f = 1MHz, BW = 200Hz Note: 7. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%. BC847AT, BT, CT 3 of 6 September 2016 Document number: DS30274 Rev. 10 - 2
