Datasheet RH1009 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Radiation Hardened 2.5V Reference |
| Pages / Page | 4 / 4 — TYPICAL PERFORMANCE CHARACTERISTICS. Reverse Breakdown Voltage. Change … |
| Revision | D |
| File Format / Size | PDF / 329 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Reverse Breakdown Voltage. Change with Current
Model Line for this Datasheet
Text Version of Document
RH1009

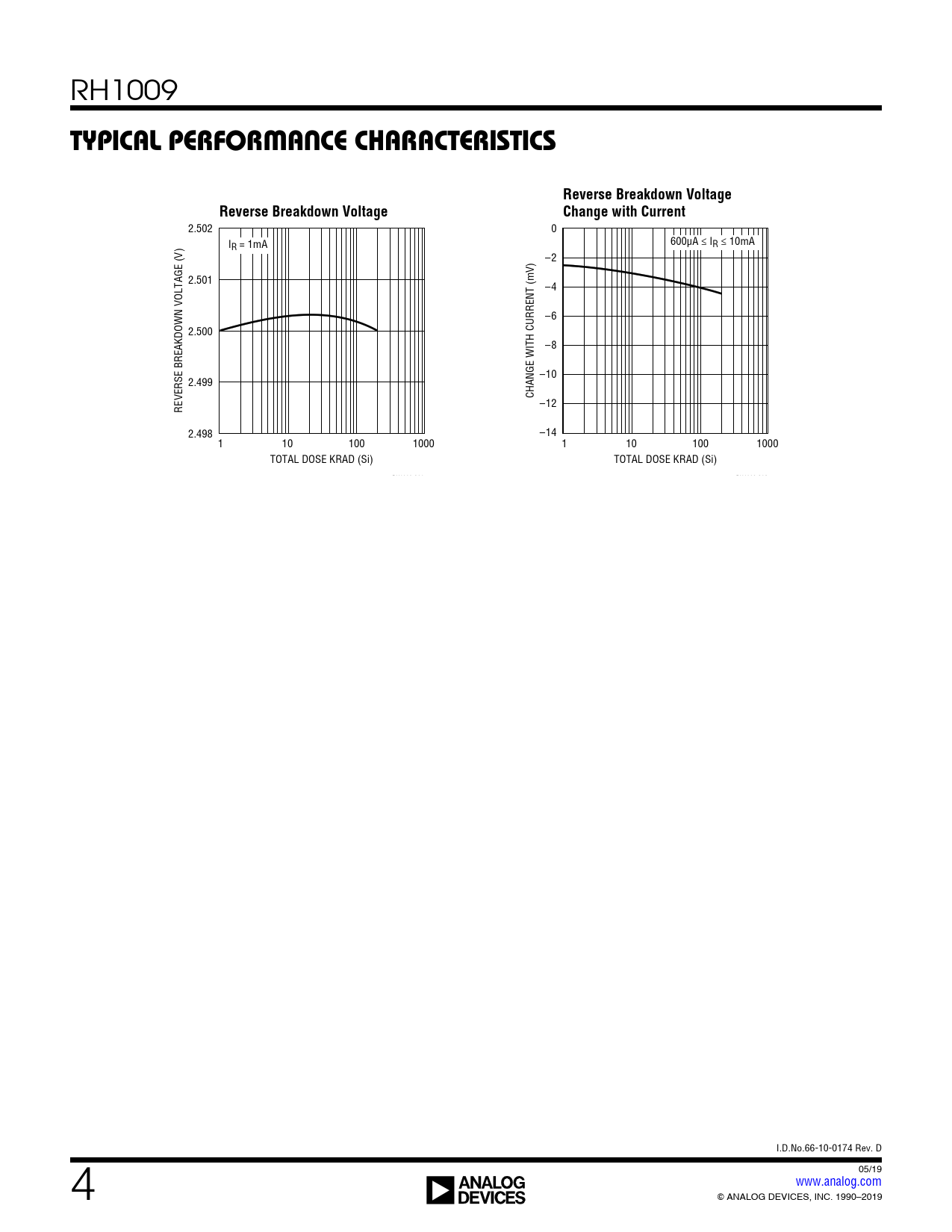

TYPICAL PERFORMANCE CHARACTERISTICS Reverse Breakdown Voltage Reverse Breakdown Voltage Change with Current
2.502 0 600μA ≤ I I R ≤ 10mA R = 1mA –2 2.501 –4 –6 2.500 –8 –10 2.499 REVERSE BREAKDOWN VOLTAGE CHANGE WITH CURRENT (mV) –12 REVERSE BREAKDOWN VOLTAGE (V) 2.498 –14 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH1009 G01 RH1009 G02 I.D.No.66-10-0174 Rev. D 4 05/19 www.analog.com For more information www.analog.com ANALOG DEVICES, INC. 1990–2019 Document Outline Description Burn-In Circuit Absolute Maximum Ratings Package/Order Information Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Total Dose Bias Circuit Table 2: Electrical Test Requirements Revision History Typical Performance Characteristics
