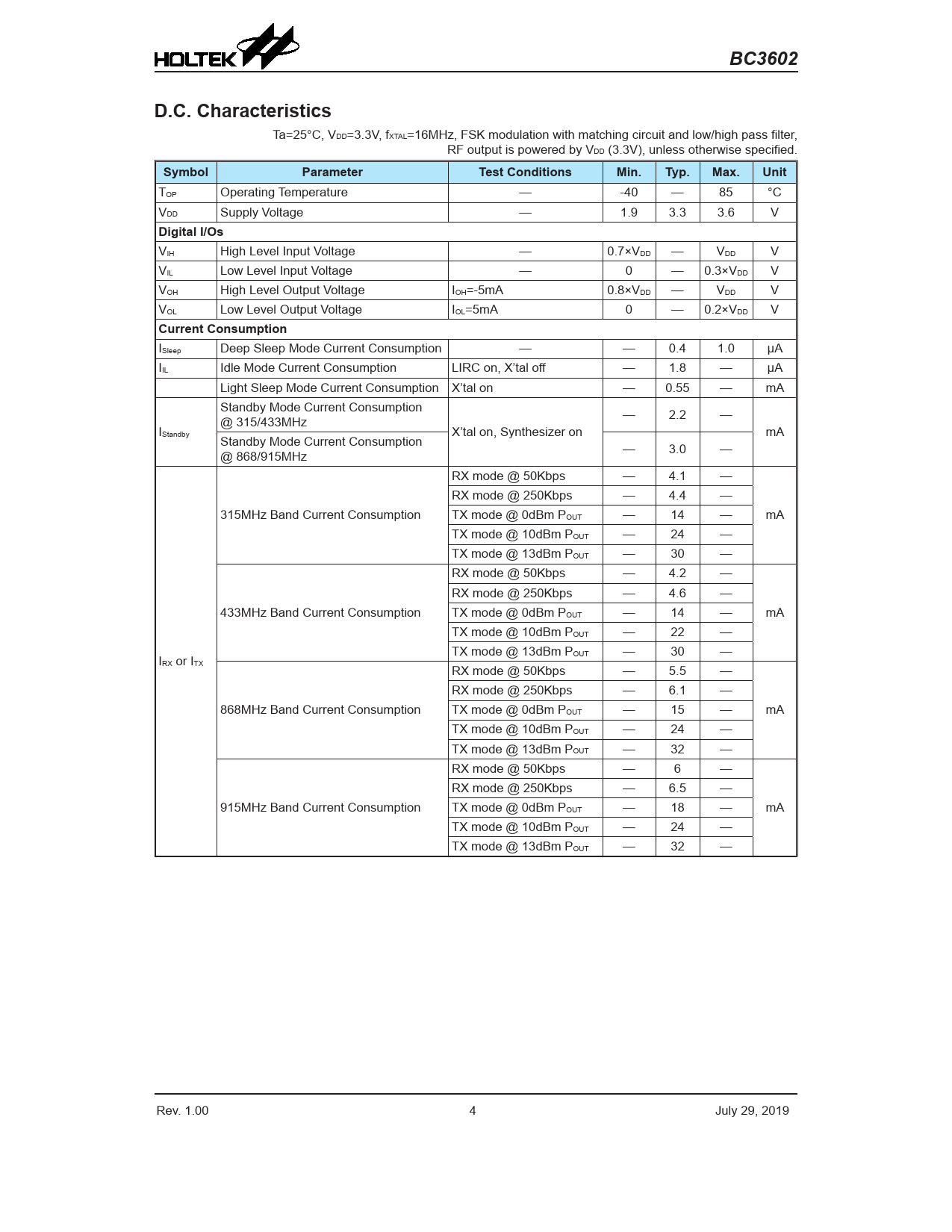

BC3602. D.C. Characteristics. Symbol. Parameter. Test Conditions. Min. Typ. Max. Unit. Digital I/Os. Current Consumption
Model Line for this Datasheet
Text Version of Document
BC3602 D.C. Characteristics
Ta=25°C, VDD=3.3V, fXTAL=16MHz, FSK modulation with matching circuit and low/high pass filter, RF output is powered by VDD (3.3V), unless otherwise specified.
Symbol Parameter Test Conditions Min. Typ. Max. Unit
TOP Operating Temperature — -40 — 85 °C VDD Supply Voltage — 1.9 3.3 3.6 V
Digital I/Os
VIH High Level Input Voltage — 0.7×VDD — VDD V VIL Low Level Input Voltage — 0 — 0.3×VDD V VOH High Level Output Voltage IOH=-5mA 0.8×VDD — VDD V VOL Low Level Output Voltage IOL=5mA 0 — 0.2×VDD V
Current Consumption
ISleep Deep Sleep Mode Current Consumption — — 0.4 1.0 μA IIL Idle Mode Current Consumption LIRC on, X’tal off — 1.8 — μA Light Sleep Mode Current Consumption X’tal on — 0.55 — mA Standby Mode Current Consumption @ 315/433MHz — 2.2 — IStandby X’tal on, Synthesizer on mA Standby Mode Current Consumption @ 868/915MHz — 3.0 — RX mode @ 50Kbps — 4.1 — RX mode @ 250Kbps — 4.4 — 315MHz Band Current Consumption TX mode @ 0dBm POUT — 14 — mA TX mode @ 10dBm POUT — 24 — TX mode @ 13dBm POUT — 30 — RX mode @ 50Kbps — 4.2 — RX mode @ 250Kbps — 4.6 — 433MHz Band Current Consumption TX mode @ 0dBm POUT — 14 — mA TX mode @ 10dBm POUT — 22 — TX mode @ 13dBm P I OUT — 30 — RX or ITX RX mode @ 50Kbps — 5.5 — RX mode @ 250Kbps — 6.1 — 868MHz Band Current Consumption TX mode @ 0dBm POUT — 15 — mA TX mode @ 10dBm POUT — 24 — TX mode @ 13dBm POUT — 32 — RX mode @ 50Kbps — 6 — RX mode @ 250Kbps — 6.5 — 915MHz Band Current Consumption TX mode @ 0dBm POUT — 18 — mA TX mode @ 10dBm POUT — 24 — TX mode @ 13dBm POUT — 32 — Rev. 1.00 4 July 29, 2019 Document Outline Features General Description Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings D.C. Characteristics A.C. Characteristics Memory Mapping Control Register Access SFR Mapping and Bit Definition Common Area Control Register Bank 0 Control Registers Bank 1 Control Registers Bank 2 Control Registers Special Function Description Sub-1GHz RF Transceiver Serial Interface System Clock Frequency Synthesizer Modulator State Machine Calibration AGC & RSSI Packet Handler FIFO Operation Modes Receiving Packet Judgement Continuous RX Mode ARK Mode: Auto-Resend and Auto-Ack ATR Mode: Auto-Transmit-Receive Message Flowchart Examples Abbreviation Application Circuits Package Information SAW Type 24-pin QFN (3mm×3mm×0.55mm) Outline Dimensions
