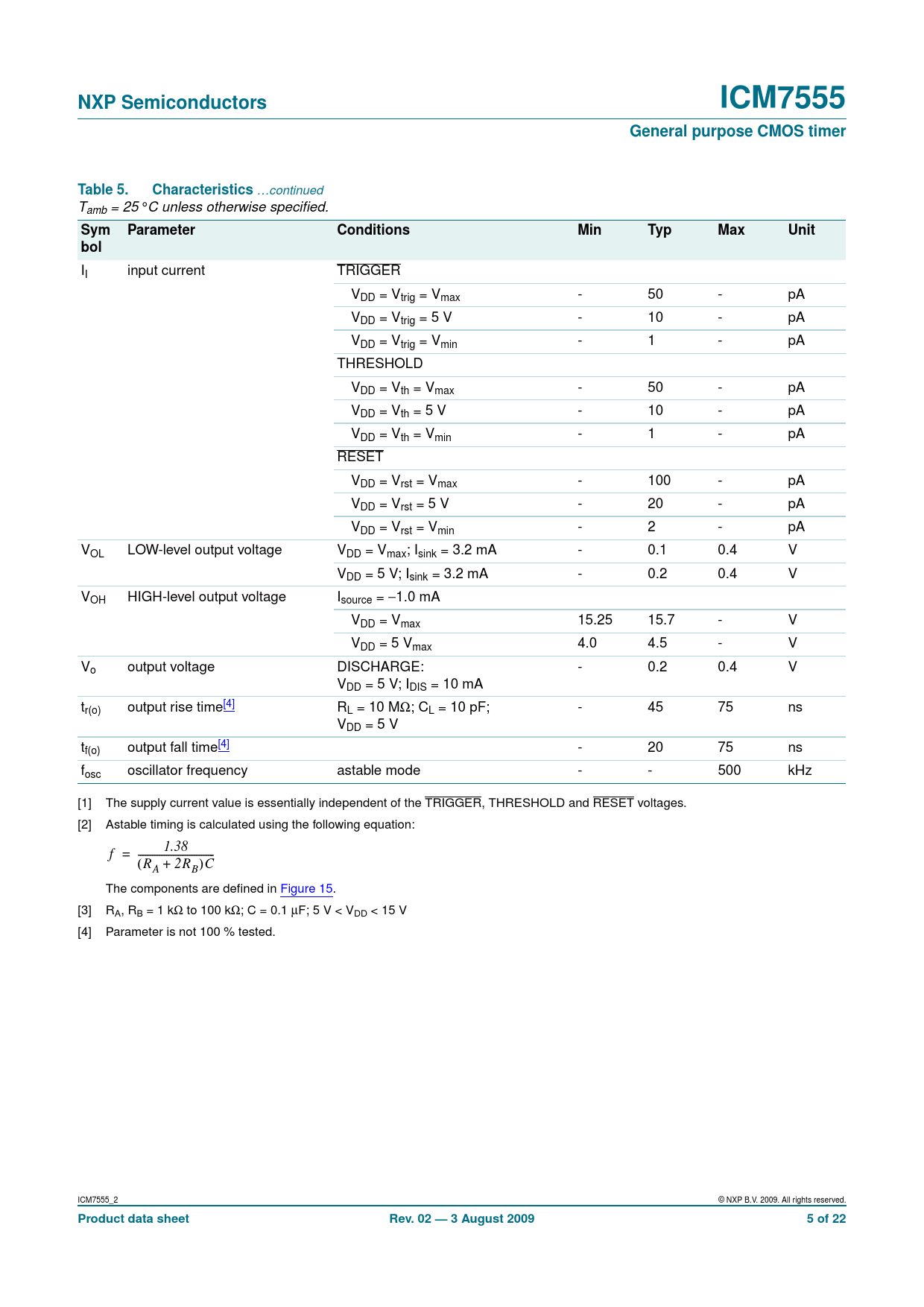

NXP Semiconductors ICM7555 General purpose CMOS timer Table 5. Characteristics
…continued Tamb = 25 °C unless otherwise specified.
Sym Parameter Conditions Min Typ Max Unit bol
II input current TRIGGER VDD = Vtrig = Vmax - 50 - pA VDD = Vtrig = 5 V - 10 - pA VDD = Vtrig = Vmin - 1 - pA THRESHOLD VDD = Vth = Vmax - 50 - pA VDD = Vth = 5 V - 10 - pA VDD = Vth = Vmin - 1 - pA RESET VDD = Vrst = Vmax - 100 - pA VDD = Vrst = 5 V - 20 - pA VDD = Vrst = Vmin - 2 - pA VOL LOW-level output voltage VDD = Vmax; Isink = 3.2 mA - 0.1 0.4 V VDD = 5 V; Isink = 3.2 mA - 0.2 0.4 V VOH HIGH-level output voltage Isource = −1.0 mA VDD = Vmax 15.25 15.7 - V VDD = 5 Vmax 4.0 4.5 - V Vo output voltage DISCHARGE: - 0.2 0.4 V VDD = 5 V; IDIS = 10 mA tr(o) output rise time[4] RL = 10 MΩ; CL = 10 pF; - 45 75 ns VDD = 5 V tf(o) output fall time[4] - 20 75 ns fosc oscillator frequency astable mode - - 500 kHz [1] The supply current value is essentially independent of the TRIGGER, THRESHOLD and RESET voltages. [2] Astable timing is calculated using the following equation: 1.38 f = (---------------- R + 2R )C A B The components are defined in Figure 15. [3] RA, RB = 1 kΩ to 100 kΩ; C = 0.1 µF; 5 V < VDD < 15 V [4] Parameter is not 100 % tested. ICM7555_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 3 August 2009 5 of 22
