Photocoupler. LTV-8X4 series. 3.6 LTV-824S-TA 3.7 LTV-824S-TA1. Description. Symbol. Dimension in mm (inch)
Model Line for this Datasheet
Text Version of Document

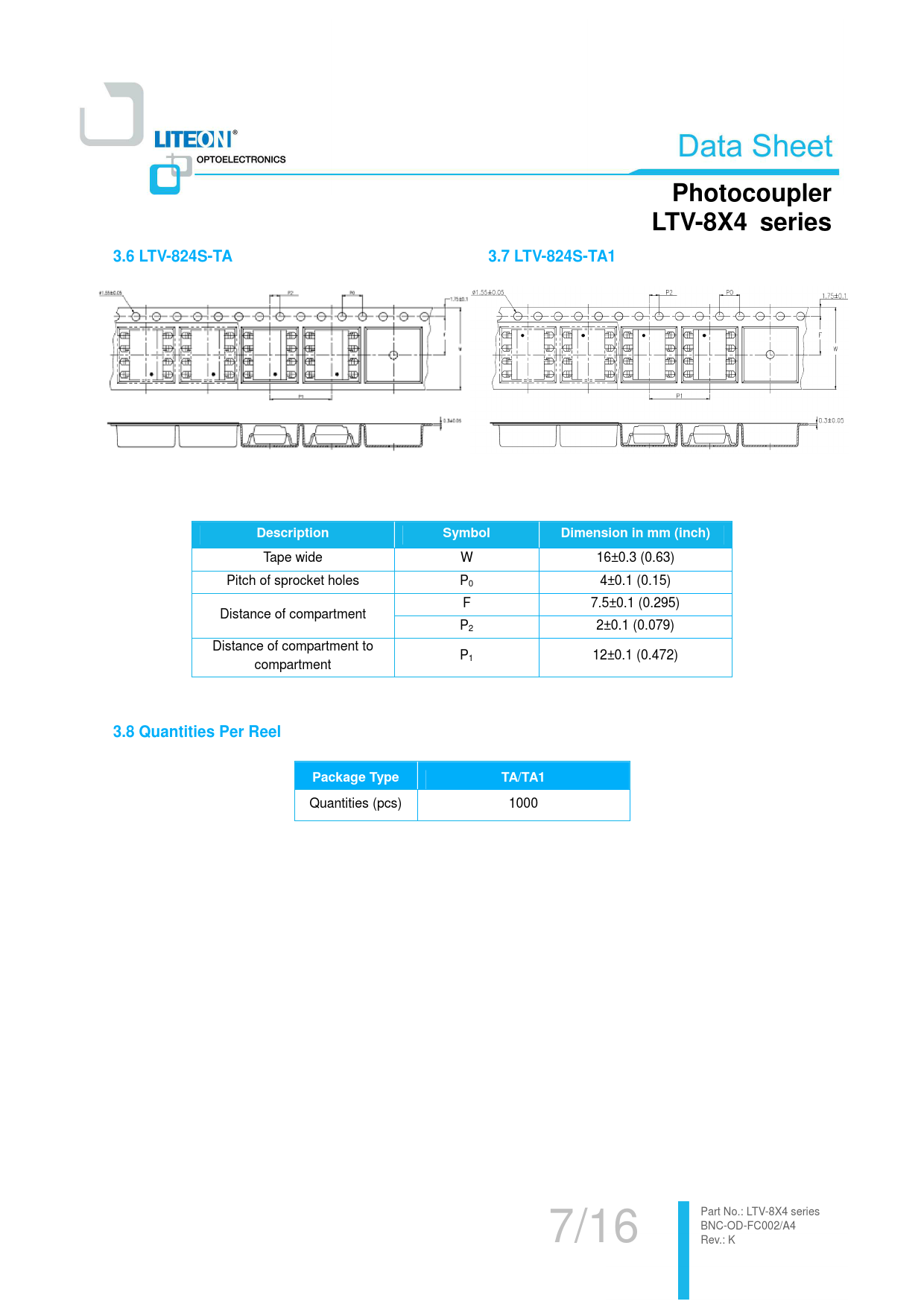

Photocoupler LTV-8X4 series 3.6 LTV-824S-TA 3.7 LTV-824S-TA1 Description Symbol Dimension in mm (inch)
Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) Distance of compartment P2 2±0.1 (0.079) Distance of compartment to P1 12±0.1 (0.472) compartment
3.8 Quantities Per Reel Package Type TA/TA1
Quantities (pcs) 1000 7/16 P art N o.: L TV-8 X4 s eries BNC-OD-FC002/A4 Rev.: K
Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) Distance of compartment P2 2±0.1 (0.079) Distance of compartment to P1 12±0.1 (0.472) compartment
3.8 Quantities Per Reel Package Type TA/TA1
Quantities (pcs) 1000 7/16 P art N o.: L TV-8 X4 s eries BNC-OD-FC002/A4 Rev.: K
