Datasheet ADXL356-EP (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometer |
| Pages / Page | 9 / 9 — Enhanced Product. ADXL356-EP. OUTLINE DIMENSIONS. DETAIL A. 0.80. 6.25. … |
| File Format / Size | PDF / 345 Kb |
| Document Language | English |
Enhanced Product. ADXL356-EP. OUTLINE DIMENSIONS. DETAIL A. 0.80. 6.25. 2.25. BSC. 6.00 SQ. 2.05. 1.674 BSC. 5.85. 1.85. 0.510 REF. 0.30 SQ
Model Line for this Datasheet
Text Version of Document
Enhanced Product ADXL356-EP OUTLINE DIMENSIONS DETAIL A 0.80 6.25 2.25 BSC 6.00 SQ 2.05 1.674 BSC 5.85 1.85 0.510 REF 0.30 SQ 12 14 (PIN 1 INDEX) 11 1 DETAIL A 5.60 3.81 R 0.103 SQ REF (14 PLCS) 0.508 BSC 8 4 7 5 R 0.25 TOP VIEW SIDE VIEW BOTTOM VIEW 0.914 (4 PLCS) 0.15 0.10 BSC 2.54 REF BSC BSC 2.20 REF R 0.203 B (14 PLCS) 2016- -004554 27- G K P 05-

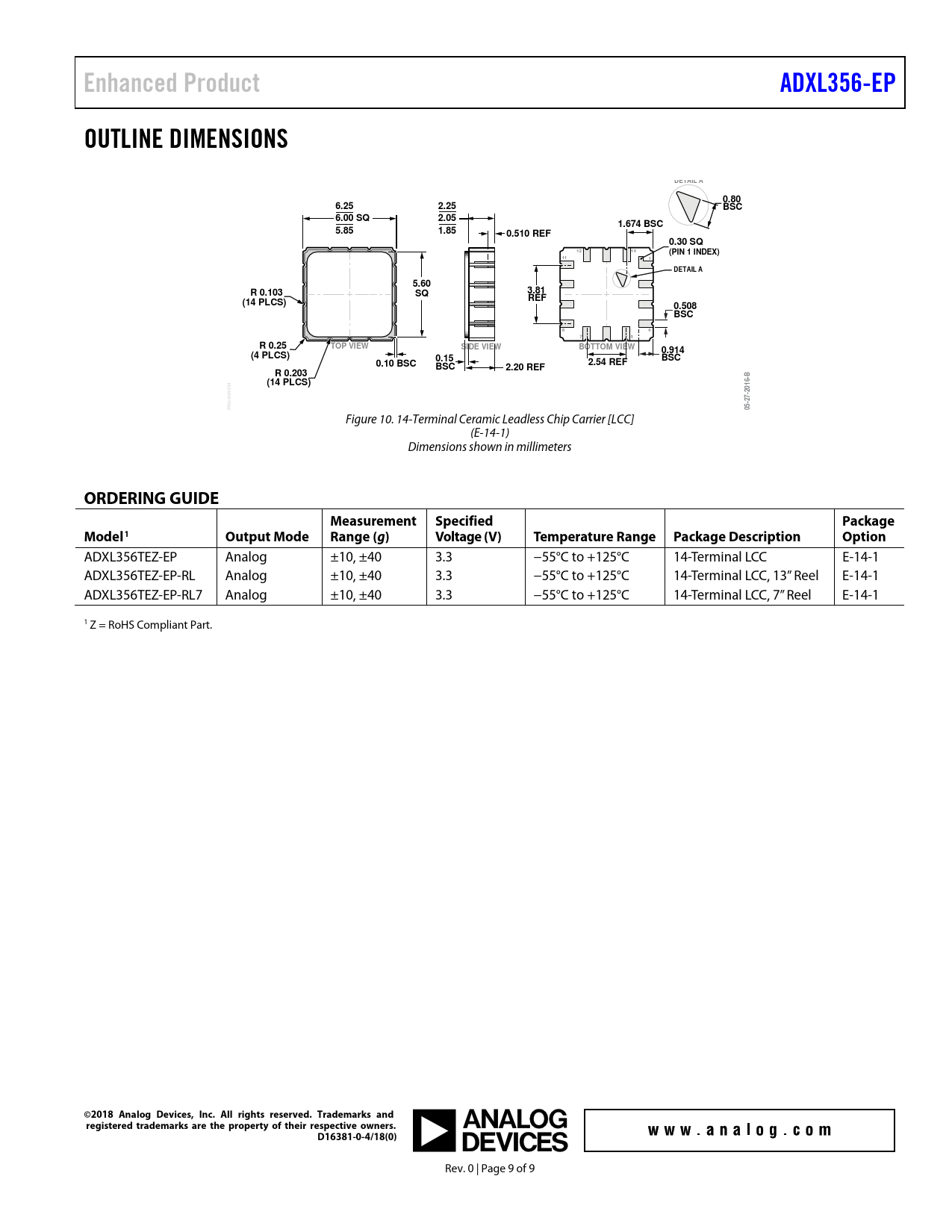

Figure 10. 14-Terminal Ceramic Leadless Chip Carrier [LCC] (E-14-1) Dimensions shown in millimeters
ORDERING GUIDE Measurement Specified Package Model1 Output Mode Range (g ) Voltage (V) Temperature Range Package Description Option
ADXL356TEZ-EP Analog ±10, ±40 3.3 −55°C to +125°C 14-Terminal LCC E-14-1 ADXL356TEZ-EP-RL Analog ±10, ±40 3.3 −55°C to +125°C 14-Terminal LCC, 13” Reel E-14-1 ADXL356TEZ-EP-RL7 Analog ±10, ±40 3.3 −55°C to +125°C 14-Terminal LCC, 7” Reel E-14-1 1 Z = RoHS Compliant Part.
