Datasheet TB67S112PG (Toshiba) - 4
| Manufacturer | Toshiba |
| Description | BiCD Process Integrated Circuit Silicon Monolithic |
| Pages / Page | 15 / 4 — Pin Description |
| File Format / Size | PDF / 352 Kb |
| Document Language | English |
Pin Description
Model Line for this Datasheet
Text Version of Document
TB67S112PG
Pin Description

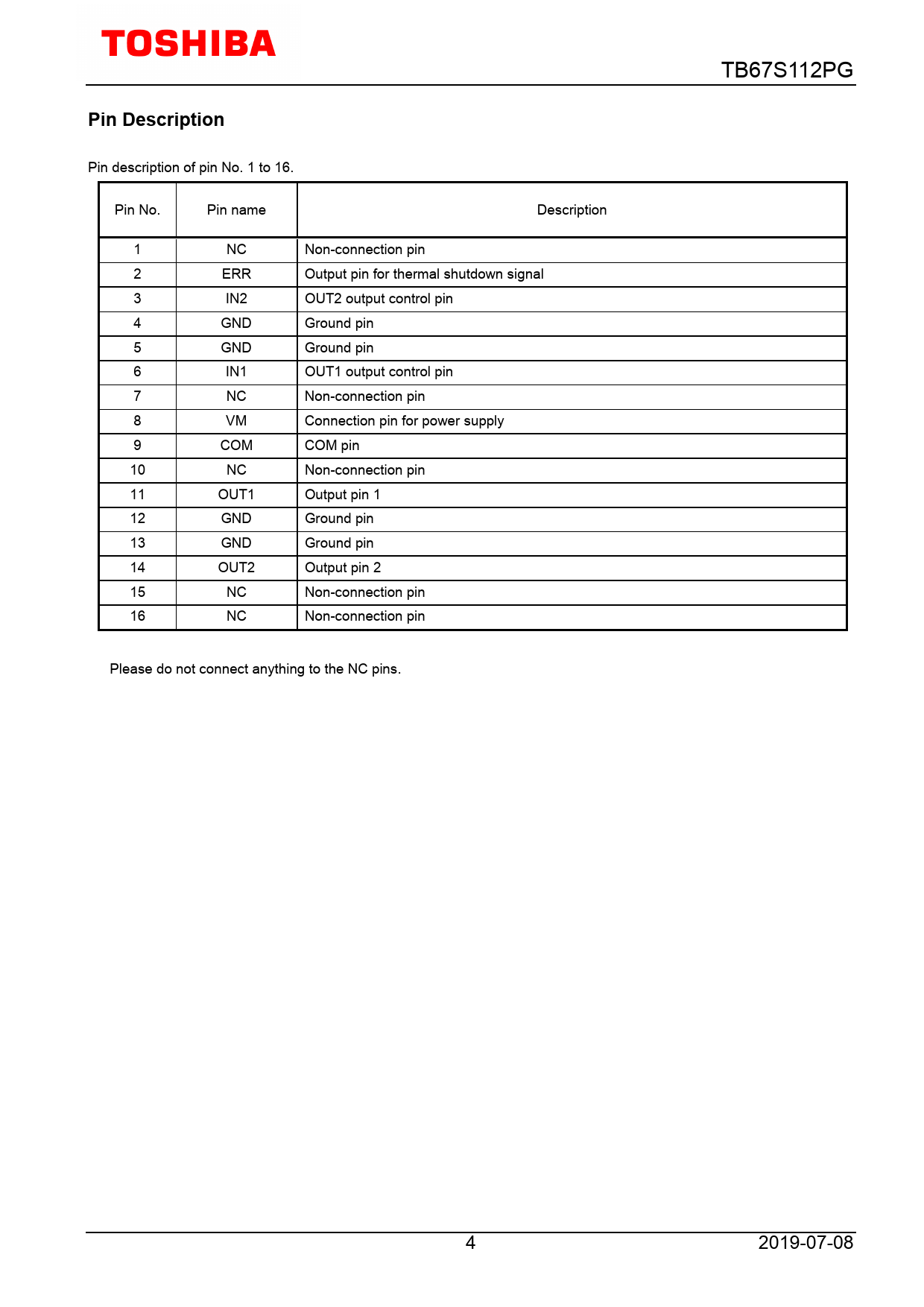

Pin description of pin No. 1 to 16. Pin No. Pin name Description 1 NC Non-connection pin 2 ERR Output pin for thermal shutdown signal 3 IN2 OUT2 output control pin 4 GND Ground pin 5 GND Ground pin 6 IN1 OUT1 output control pin 7 NC Non-connection pin 8 VM Connection pin for power supply 9 COM COM pin 10 NC Non-connection pin 11 OUT1 Output pin 1 12 GND Ground pin 13 GND Ground pin 14 OUT2 Output pin 2 15 NC Non-connection pin 16 NC Non-connection pin Please do not connect anything to the NC pins. 4 2019-07-08
