BM83 Device Overview 2. Device Overview
The BM83 stereo audio module is built around the IS2083BM SoC, which integrates the dual-mode baseband, modem, radio transceiver, PMU, MCU, crystal, and a DSP dedicated for audio and voice applications. Users can configure the BM83 module by using the SDK or the IS208x_Config_GUI_Tool (Config Tool). There are two modes of operation: • Host mode: – Interfaces with an external MCU over UART for application specific system control. – The multi-speaker (MSPK) solution can reside on this MCU. • Embedded mode: – No external MCU involved. – BM83 acts as an MCU to control all peripherals to provide various speaker features. – Integrates the MSPK firmware on the module. – Simple system control can be implemented in the module MCU by using the SDK. – DSP parameters such as equalizer settings can be set using the Config Tool.
Note:
The SDK and Config Tool are available for download at: http://www.microchip.com/BM83. The following figure illustrates the Embedded mode and Host mode of the BM83 module.

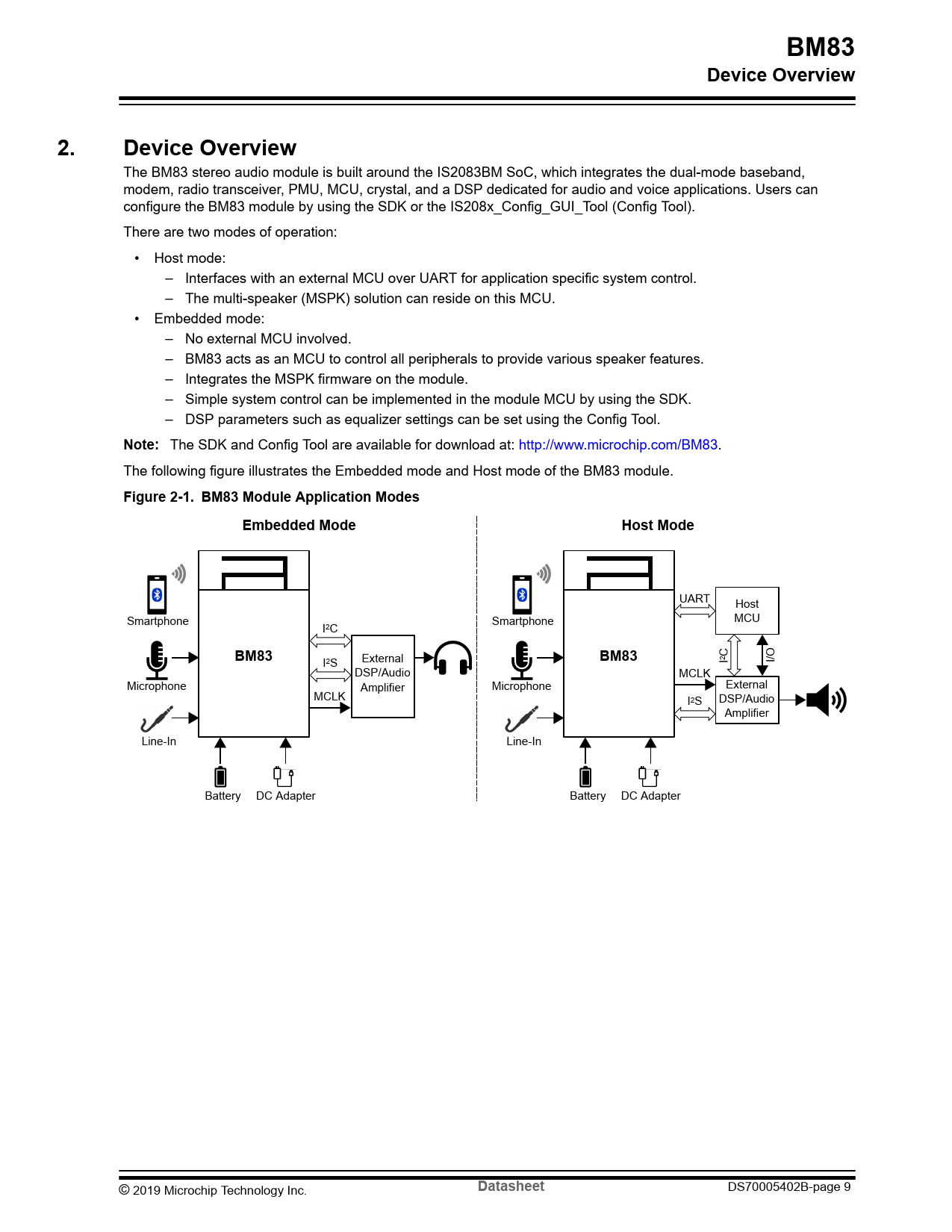

Figure 2-1. BM83 Module Application Modes Embedded Mode Host Mode
UART Host Smartphone Smartphone MCU I2C
BM83
External
BM83
C2I I/O I2S DSP/Audio MCLK Microphone Amplifier Microphone External MCLK I2S DSP/Audio Amplifier Line-In Line-In Battery DC Adapter Battery DC Adapter © 2019 Microchip Technology Inc.
Datasheet
