| Manufacturer | Torex |
| Description | 36V Operation 600mA Synchronous Step-Down DC/DC Converters |
| Pages / Page | 26 / 3 — XD9267/XD9268. Series |
| File Format / Size | PDF / 916 Kb |
| Document Language | English |
XD9267/XD9268. Series
Model Line for this Datasheet
Text Version of Document
XD9267/XD9268 Series

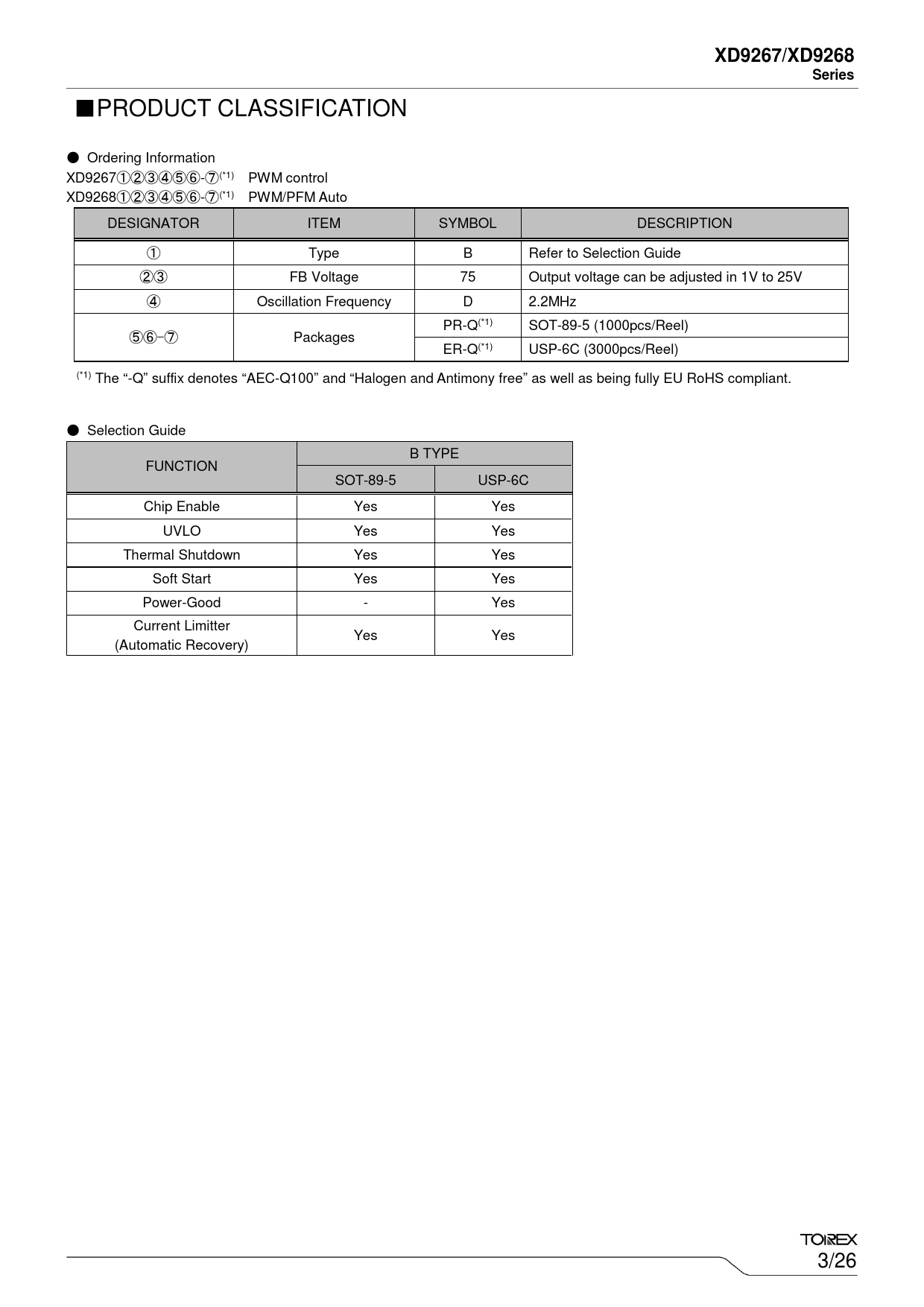

■PRODUCT CLASSIFICATION ● Ordering Information XD9267①②③④⑤⑥-⑦(*1) PWM control XD9268①②③④⑤⑥-⑦(*1) PWM/PFM Auto DESIGNATOR ITEM SYMBOL DESCRIPTION ① Type B Refer to Selection Guide ②③ FB Voltage 75 Output voltage can be adjusted in 1V to 25V ④ Oscillation Frequency D 2.2MHz PR-Q(*1) SOT-89-5 (1000pcs/Reel) ⑤⑥-⑦ Packages ER-Q(*1) USP-6C (3000pcs/Reel) (*1) The “-Q” suffix denotes “AEC-Q100” and “Halogen and Antimony free” as well as being fully EU RoHS compliant. ● Selection Guide B TYPE FUNCTION SOT-89-5 USP-6C Chip Enable Yes Yes UVLO Yes Yes Thermal Shutdown Yes Yes Soft Start Yes Yes Power-Good - Yes Current Limitter Yes Yes (Automatic Recovery) 3/26
