XD9267/XD9268 Series

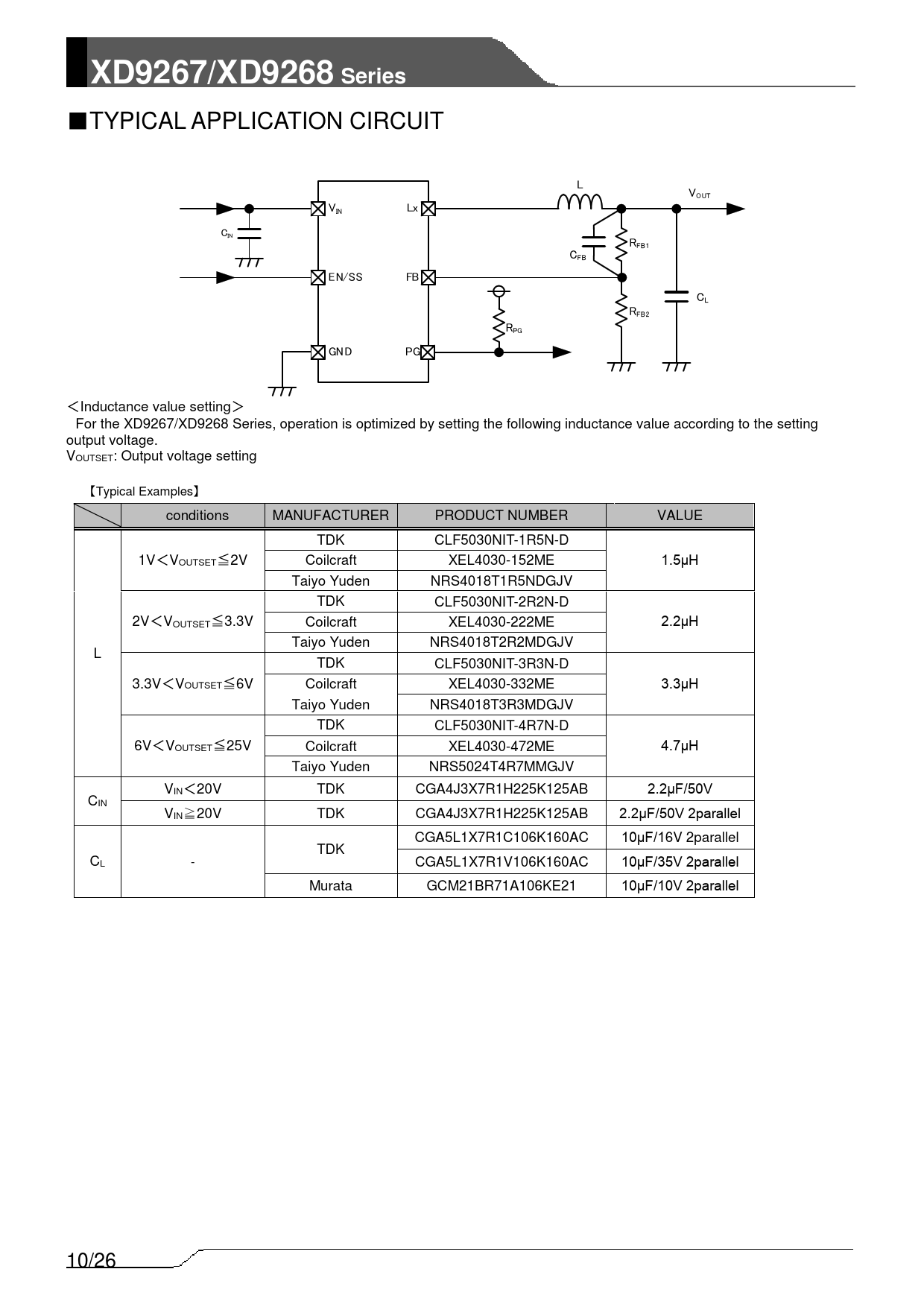

■TYPICAL APPLICATION CIRCUIT L VOUT VIN Lx CIN RFB1 CFB EN/SS FB CL RFB2 RPG GN D PG ＜Inductance value setting＞ For the XD9267/XD9268 Series, operation is optimized by setting the following inductance value according to the setting output voltage. VOUTSET: Output voltage setting 【Typical Examples】 conditions MANUFACTURER PRODUCT NUMBER VALUE TDK CLF5030NIT-1R5N-D 1V＜VOUTSET≦2V Coilcraft XEL4030-152ME 1.5μH Taiyo Yuden NRS4018T1R5NDGJV TDK CLF5030NIT-2R2N-D 2V＜VOUTSET≦3.3V Coilcraft XEL4030-222ME 2.2μH Taiyo Yuden NRS4018T2R2MDGJV L TDK CLF5030NIT-3R3N-D 3.3V＜VOUTSET≦6V Coilcraft XEL4030-332ME 3.3μH Taiyo Yuden NRS4018T3R3MDGJV TDK CLF5030NIT-4R7N-D 6V＜VOUTSET≦25V Coilcraft XEL4030-472ME 4.7μH Taiyo Yuden NRS5024T4R7MMGJV VIN＜20V TDK CGA4J3X7R1H225K125AB 2.2μF/50V CIN VIN≧20V TDK CGA4J3X7R1H225K125AB 2.2μF/50V 2parallel CGA5L1X7R1C106K160AC 10μF/16V 2parallel TDK CL - CGA5L1X7R1V106K160AC 10μF/35V 2parallel Murata GCM21BR71A106KE21 10μF/10V 2parallel 10/26
