Datasheet PIC16(L)F153XX (Microchip) - 2
| Manufacturer | Microchip |
| Description | Cost-Effective 8 to 48 Pins Microcontroller Product Brief |
| Pages / Page | 24 / 2 — PIC16(L)F153XX. Analog Peripherals. Flexible Oscillator Structure. … |
| File Format / Size | PDF / 328 Kb |
| Document Language | English |
PIC16(L)F153XX. Analog Peripherals. Flexible Oscillator Structure. Advance Information
Model Line for this Datasheet
- PIC16F15325-E/JQ PIC16F15325-E/JQVAO PIC16F15325-E/P PIC16F15325-E/SL PIC16F15325-E/SLVAO PIC16F15325-E/ST PIC16F15325-I/JQ PIC16F15325-I/P PIC16F15325-I/SL PIC16F15325-I/SLVAO PIC16F15325-I/ST PIC16F15325T-E/7NVAO PIC16F15325T-E/JQ PIC16F15325T-E/JQVAO PIC16F15325T-E/SLVAO PIC16F15325T-E/STVAO PIC16F15325T-I/JQ PIC16F15325T-I/SL PIC16F15325T-I/ST PIC16LF15325-E/JQ PIC16LF15325-E/P PIC16LF15325-E/SL PIC16LF15325-E/ST PIC16LF15325-I/JQ PIC16LF15325-I/P PIC16LF15325-I/SL PIC16LF15325-I/ST PIC16LF15325T-E/JQVAO PIC16LF15325T-E/STVAO PIC16LF15325T-I/JQ PIC16LF15325T-I/SL PIC16LF15325T-I/ST
- ACE15345 PIC16F15345-E/GZ PIC16F15345-E/GZVAO PIC16F15345-E/P PIC16F15345-E/SO PIC16F15345-E/SS PIC16F15345-I/GZ PIC16F15345-I/P PIC16F15345-I/SO PIC16F15345-I/SS PIC16F15345-I/SSVAO PIC16F15345T-E/6NVAO PIC16F15345T-E/GZVAO PIC16F15345T-E/MLVAO PIC16F15345T-E/SSVAO PIC16F15345T-I/GZ PIC16F15345T-I/SO PIC16F15345T-I/SS PIC16F15345T-I/SSVAO PIC16LF15345-E/6NVAO PIC16LF15345-E/GZ PIC16LF15345-E/P PIC16LF15345-E/SO PIC16LF15345-E/SS PIC16LF15345-I/GZ PIC16LF15345-I/P PIC16LF15345-I/SO PIC16LF15345-I/SS PIC16LF15345-I/SSVAO PIC16LF15345T-E/6NVAO PIC16LF15345T-E/GZVAO PIC16LF15345T-E/SS PIC16LF15345T-I/GZ PIC16LF15345T-I/SO PIC16LF15345T-I/SS PIC16LF15345T-I/SSVAO
- PIC16F15385-E/MV PIC16F15385-E/PT PIC16F15385-E/PTVAO PIC16F15385-I/MV PIC16F15385-I/PT PIC16F15385-I/PTVAO PIC16F15385T-E/MV PIC16F15385T-I/MV PIC16F15385T-I/PT PIC16F15385T-I/PTVAO PIC16LF15385-E/MV PIC16LF15385-E/PT PIC16LF15385-I/MV PIC16LF15385-I/PT PIC16LF15385T-E/MV PIC16LF15385T-I/MV PIC16LF15385T-I/PT
Text Version of Document

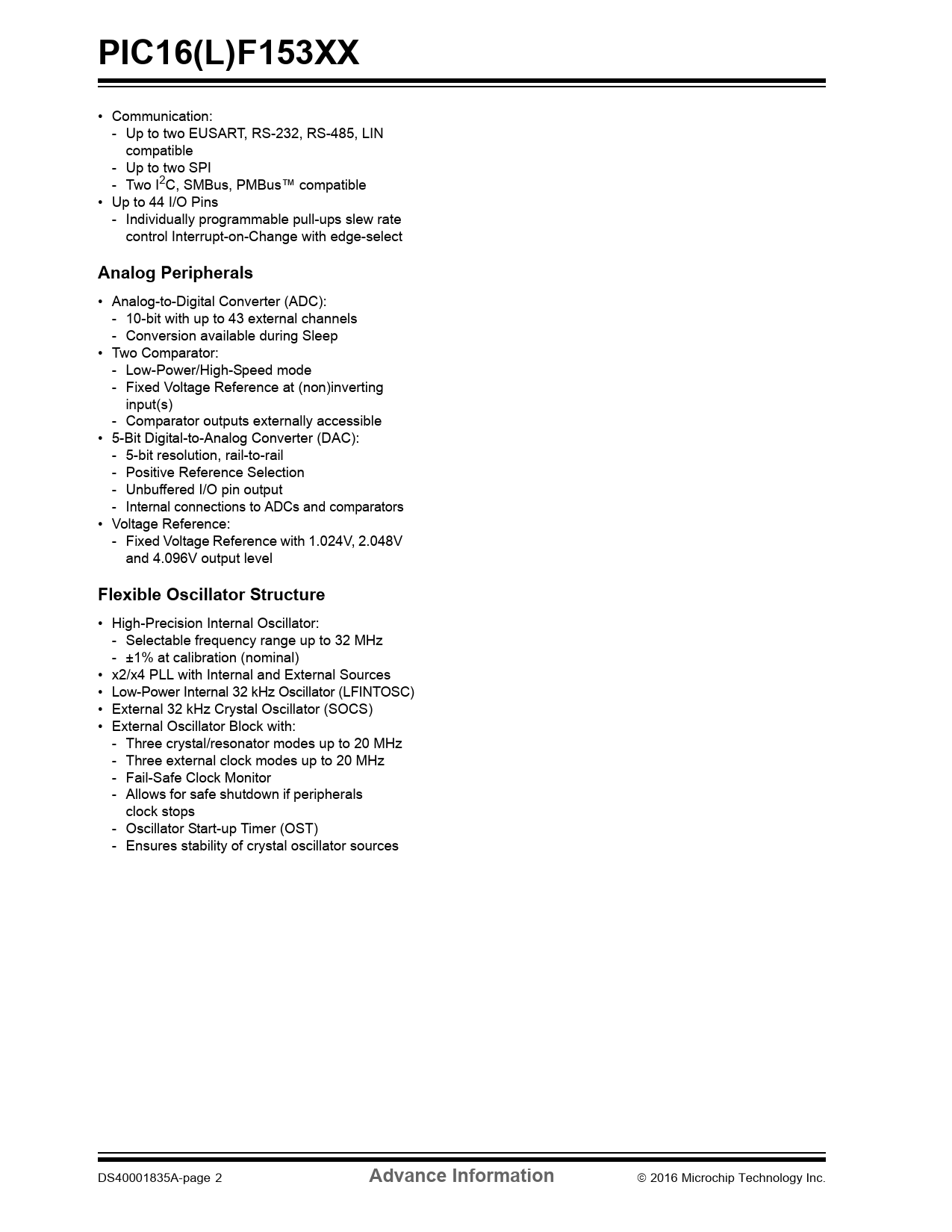

PIC16(L)F153XX
• Communication: - Up to two EUSART, RS-232, RS-485, LIN compatible - Up to two SPI - Two I2C, SMBus, PMBus™ compatible • Up to 44 I/O Pins - Individually programmable pull-ups slew rate control Interrupt-on-Change with edge-select
Analog Peripherals
• Analog-to-Digital Converter (ADC): - 10-bit with up to 43 external channels - Conversion available during Sleep • Two Comparator: - Low-Power/High-Speed mode - Fixed Voltage Reference at (non)inverting input(s) - Comparator outputs externally accessible • 5-Bit Digital-to-Analog Converter (DAC): - 5-bit resolution, rail-to-rail - Positive Reference Selection - Unbuffered I/O pin output - Internal connections to ADCs and comparators • Voltage Reference: - Fixed Voltage Reference with 1.024V, 2.048V and 4.096V output level
Flexible Oscillator Structure
• High-Precision Internal Oscillator: - Selectable frequency range up to 32 MHz - ±1% at calibration (nominal) • x2/x4 PLL with Internal and External Sources • Low-Power Internal 32 kHz Oscillator (LFINTOSC) • External 32 kHz Crystal Oscil ator (SOCS) • External Oscillator Block with: - Three crystal/resonator modes up to 20 MHz - Three external clock modes up to 20 MHz - Fail-Safe Clock Monitor - Al ows for safe shutdown if peripherals clock stops - Oscillator Start-up Timer (OST) - Ensures stability of crystal oscillator sources DS40001835A-page 2
