Datasheet 6N138, 6N139 (Toshiba)
Manufacturer | Toshiba |
Description | Photocoupler IRED & Photo IC |
Pages / Page | 6 / 1 — 6N138, 6N139. Pin Configuration (top view). Schematic |
File Format / Size | PDF / 308 Kb |
Document Language | English |

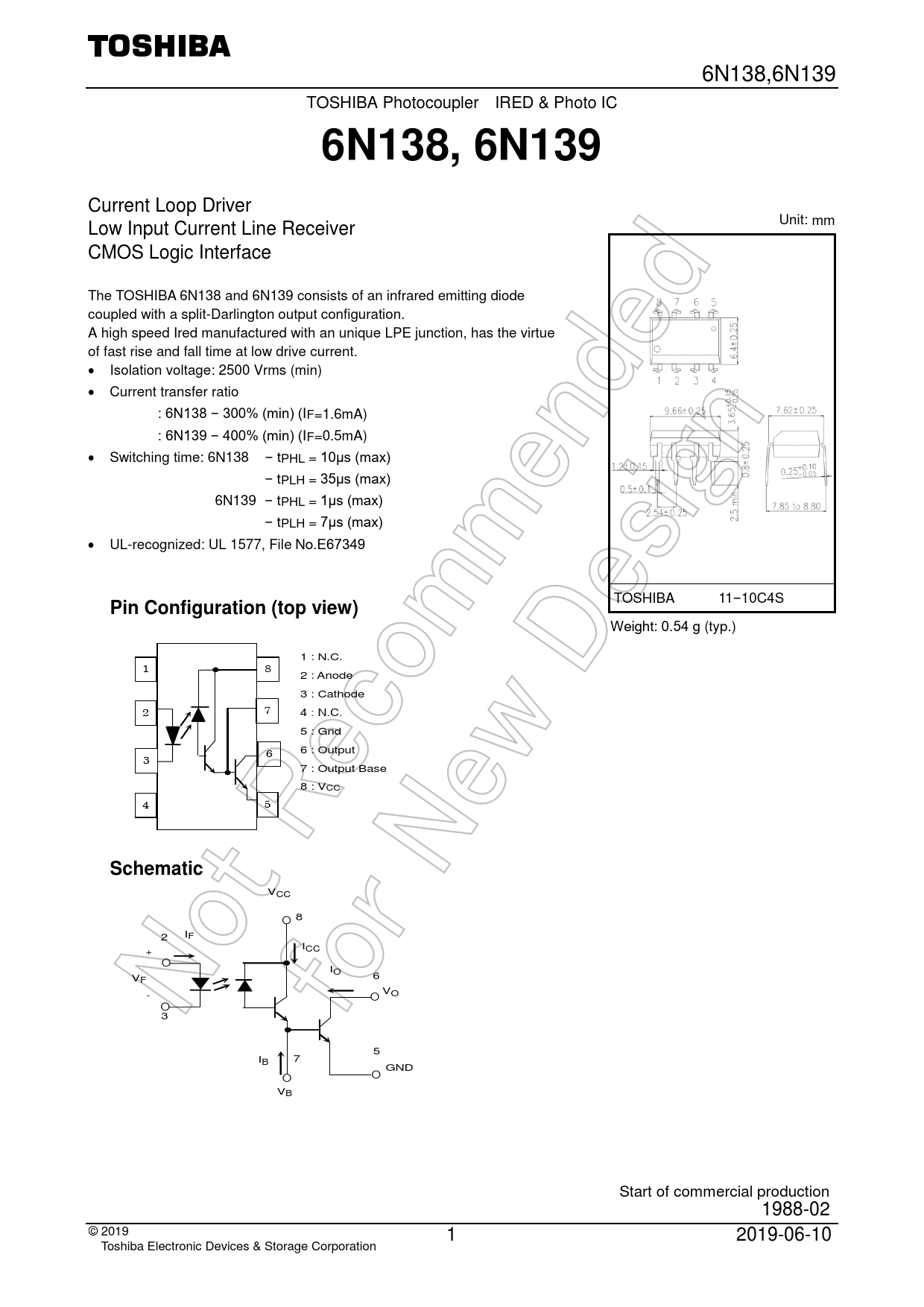

6N138, 6N139. Pin Configuration (top view). Schematic
Model Line for this Datasheet
Text Version of Document
6N138,6N139 TOSHIBA Photocoupler IRED & Photo IC
6N138, 6N139
Current Loop Driver Unit: mm Low Input Current Line Receiver CMOS Logic Interface The TOSHIBA 6N138 and 6N139 consists of an infrared emitting diode coupled with a split-Darlington output configuration. A high speed Ired manufactured with an unique LPE junction, has the virtue of fast rise and fall time at low drive current. • Isolation voltage: 2500 Vrms (min) • Current transfer ratio : 6N138 − 300% (min) (IF=1.6mA) : 6N139 − 400% (min) (IF=0.5mA) • Switching time: 6N138 − tPHL = 10μs (max) − tPLH = 35μs (max) 6N139 − tPHL = 1μs (max) − t PLH = 7μs (max) • UL-recognized: UL 1577, File No.E67349 TOSHIBA 11−10C4S
Pin Configuration (top view)
Weight: 0.54 g (typ.) 1 : N.C. 1 8 2 : Anode 3 : Cathode 2 7 4 : N.C. 5 : Gnd 6 : Output 3 6 7 : Output Base 8 : VCC 4 5
Schematic
V CC 8 I 2 F ICC + IO V 6 F VO - 3 5 I 7 B GND VB Start of commercial production 1988-02 © 2019 1 2019-06-10 Toshiba Electronic Devices & Storage Corporation
