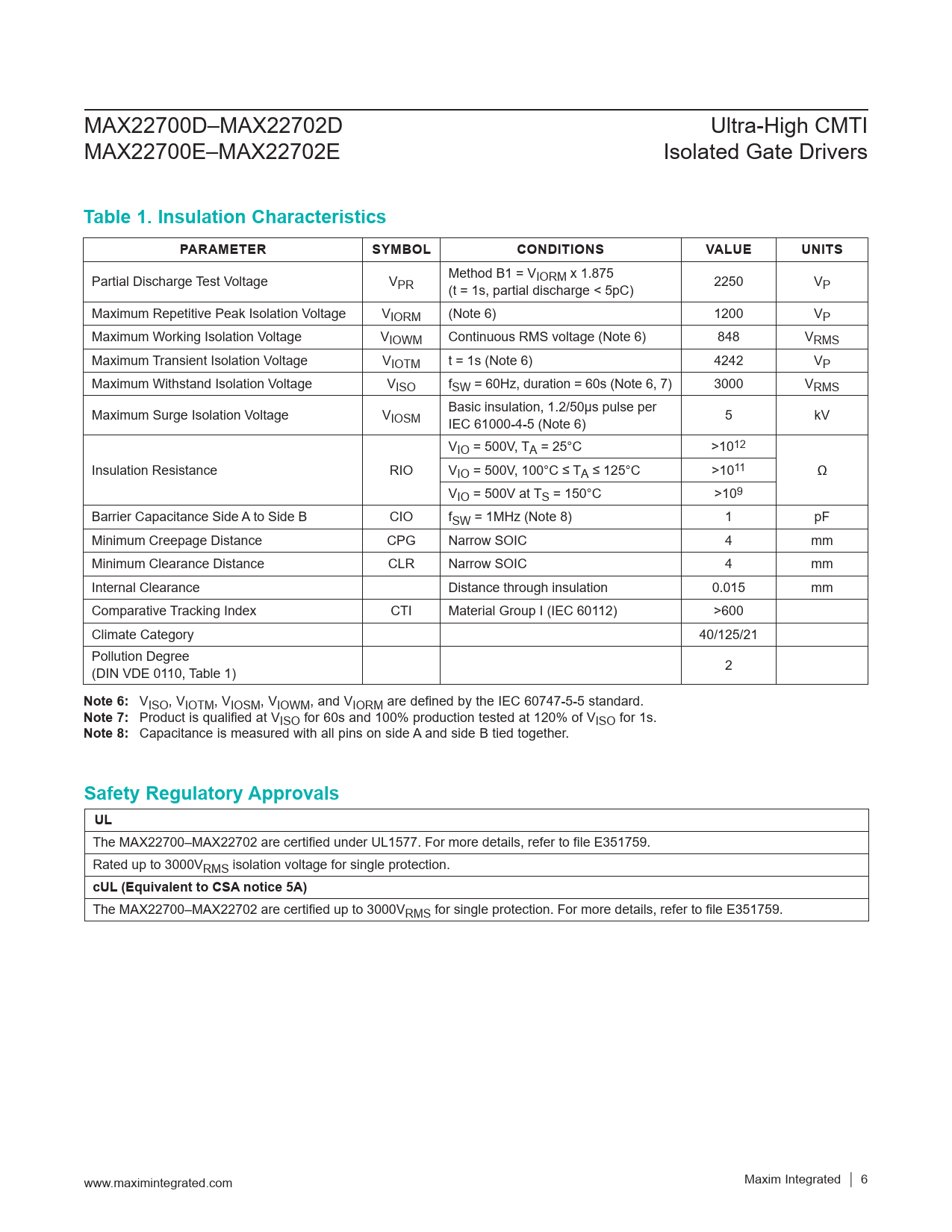

MAX22700D–MAX22702D Ultra-High CMTI MAX22700E–MAX22702E Isolated Gate Drivers
Table 1. Insulation Characteristics PARAMETER SYMBOL CONDITIONS VALUE UNITS
Partial Discharge Test Voltage V Method B1 = VIORM x 1.875 PR (t = 1s, partial discharge < 5pC) 2250 VP Maximum Repetitive Peak Isolation Voltage VIORM (Note 6) 1200 VP Maximum Working Isolation Voltage VIOWM Continuous RMS voltage (Note 6) 848 VRMS Maximum Transient Isolation Voltage VIOTM t = 1s (Note 6) 4242 VP Maximum Withstand Isolation Voltage VISO fSW = 60Hz, duration = 60s (Note 6, 7) 3000 VRMS Maximum Surge Isolation Voltage V Basic insulation, 1.2/50µs pulse per IOSM IEC 61000-4-5 (Note 6) 5 kV VIO = 500V, TA = 25°C >1012 Insulation Resistance RIO VIO = 500V, 100°C ≤ TA ≤ 125°C >1011 Ω VIO = 500V at TS = 150°C >109 Barrier Capacitance Side A to Side B CIO fSW = 1MHz (Note 8) 1 pF Minimum Creepage Distance CPG Narrow SOIC 4 mm Minimum Clearance Distance CLR Narrow SOIC 4 mm Internal Clearance Distance through insulation 0.015 mm Comparative Tracking Index CTI Material Group I (IEC 60112) >600 Climate Category 40/125/21 Pollution Degree (DIN VDE 0110, Table 1) 2
Note 6:
VISO, VIOTM, VIOSM, VIOWM, and VIORM are defined by the IEC 60747-5-5 standard.
Note 7:
Product is qualified at VISO for 60s and 100% production tested at 120% of VISO for 1s.
Note 8:
Capacitance is measured with all pins on side A and side B tied together.
Safety Regulatory Approvals UL
The MAX22700–MAX22702 are certified under UL1577. For more details, refer to file E351759. Rated up to 3000VRMS isolation voltage for single protection.
cUL (Equivalent to CSA notice 5A)
The MAX22700–MAX22702 are certified up to 3000VRMS for single protection. For more details, refer to file E351759. www.maximintegrated.com Maxim Integrated │ 6
