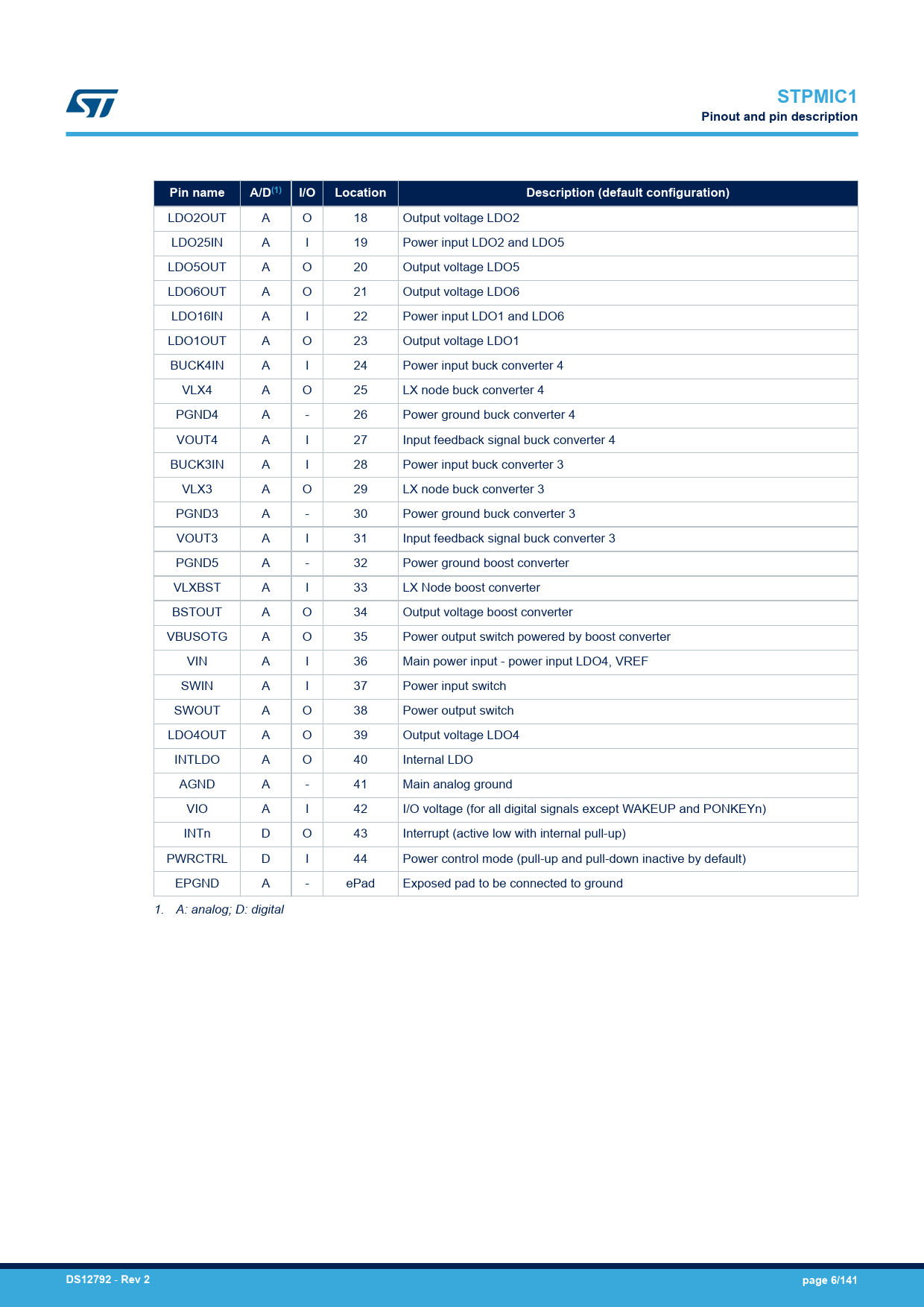

STPMIC1 Pinout and pin description Pin name A/D(1) I/O Location Description (default configuration)
LDO2OUT A O 18 Output voltage LDO2 LDO25IN A I 19 Power input LDO2 and LDO5 LDO5OUT A O 20 Output voltage LDO5 LDO6OUT A O 21 Output voltage LDO6 LDO16IN A I 22 Power input LDO1 and LDO6 LDO1OUT A O 23 Output voltage LDO1 BUCK4IN A I 24 Power input buck converter 4 VLX4 A O 25 LX node buck converter 4 PGND4 A - 26 Power ground buck converter 4 VOUT4 A I 27 Input feedback signal buck converter 4 BUCK3IN A I 28 Power input buck converter 3 VLX3 A O 29 LX node buck converter 3 PGND3 A - 30 Power ground buck converter 3 VOUT3 A I 31 Input feedback signal buck converter 3 PGND5 A - 32 Power ground boost converter VLXBST A I 33 LX Node boost converter BSTOUT A O 34 Output voltage boost converter VBUSOTG A O 35 Power output switch powered by boost converter VIN A I 36 Main power input - power input LDO4, VREF SWIN A I 37 Power input switch SWOUT A O 38 Power output switch LDO4OUT A O 39 Output voltage LDO4 INTLDO A O 40 Internal LDO AGND A - 41 Main analog ground VIO A I 42 I/O voltage (for all digital signals except WAKEUP and PONKEYn) INTn D O 43 Interrupt (active low with internal pull-up) PWRCTRL D I 44 Power control mode (pull-up and pull-down inactive by default) EPGND A - ePad Exposed pad to be connected to ground 1. A: analog; D: digital
