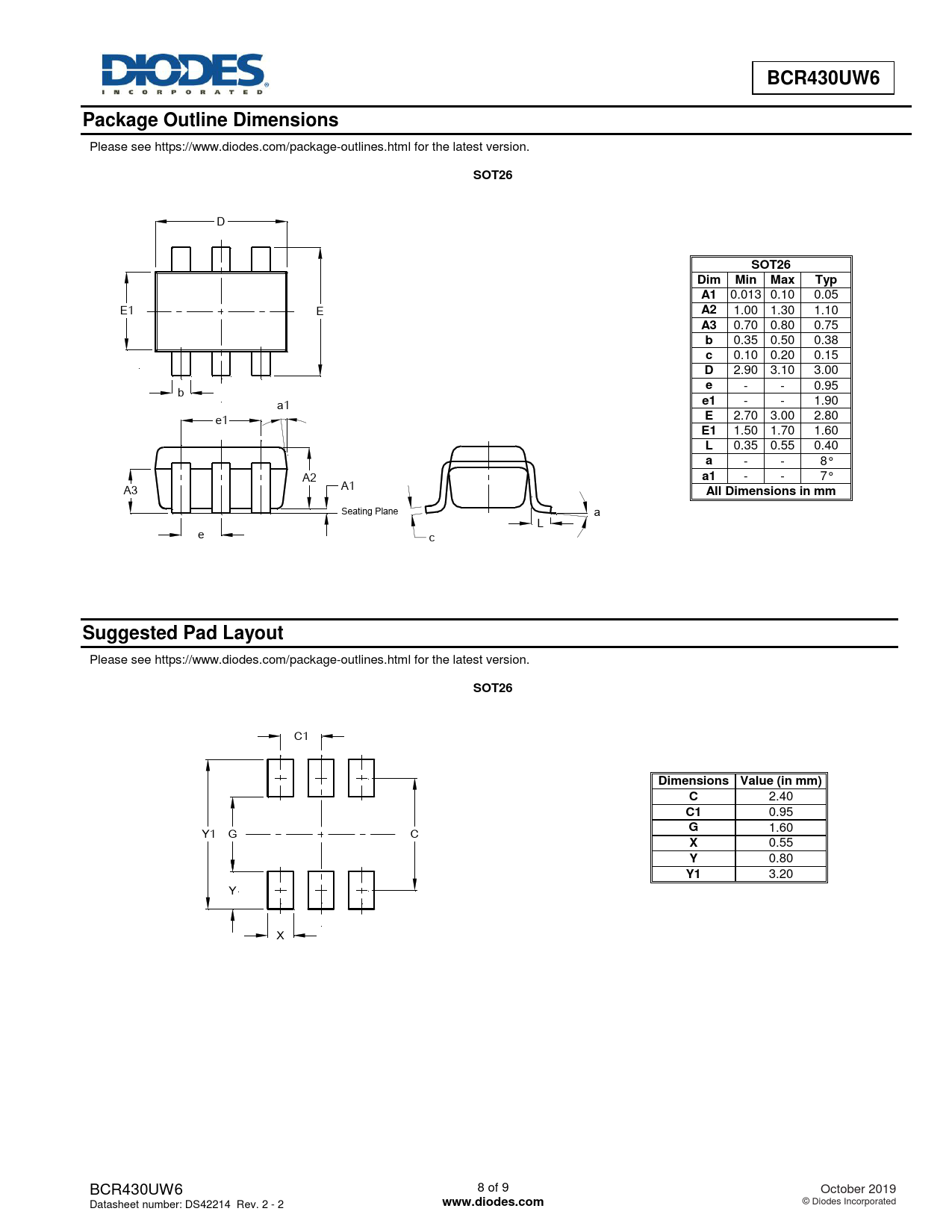

BCR430UW6. Package Outline Dimensions. SOT26. Dim Min Max. Typ. All Dimensions in mm. Suggested Pad Layout. Dimensions Value (in mm)
Model Line for this Datasheet
Text Version of Document
BCR430UW6 Package Outline Dimensions
Please see https://www.diodes.com/package-outlines.html for the latest version.
SOT26
D
SOT26 Dim Min Max Typ A1
0.013 0.10 0.05 E1 E
A2
1.00 1.30 1.10
A3
0.70 0.80 0.75
b
0.35 0.50 0.38
c
0.10 0.20 0.15
D
2.90 3.10 3.00 b
e
- - 0.95 a1
e1
- - 1.90 e1
E
2.70 3.00 2.80
E1
1.50 1.70 1.60
L
0.35 0.55 0.40
a
- - 8° A2
a1
- - 7° A1 A3
All Dimensions in mm
Seating Plane a L e c
Suggested Pad Layout
Please see https://www.diodes.com/package-outlines.html for the latest version.
SOT26
C1
Dimensions Value (in mm) C
2.40
C1
0.95
G
1.60 Y1 G C
X
0.55
Y
0.80
Y1
3.20 Y X BCR430UW6 8 of 9 October 2019 Datasheet number: DS42214 Rev. 2 - 2
