| Manufacturer | Analog Devices |
| Description | High Voltage, Precision Difference Amplifier |
| Pages / Page | 20 / 6 — AD8208. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. … |
| Revision | C |
| File Format / Size | PDF / 331 Kb |
| Document Language | English |

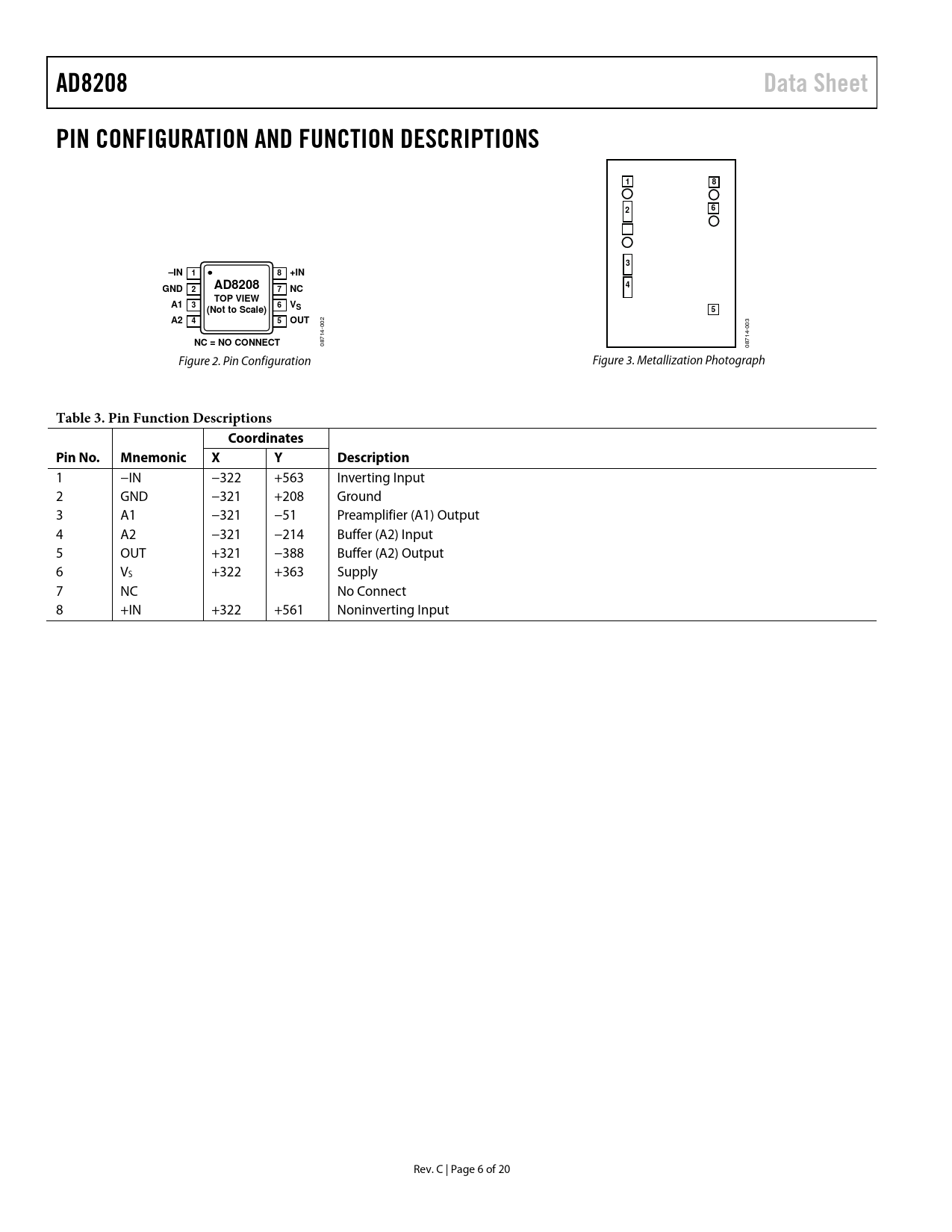

AD8208. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. +IN. GND. TOP VIEW. (Not to Scale). OUT. NC = NO CONNECT
Model Line for this Datasheet
Text Version of Document
AD8208 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 8 2 6 3 –IN 1 8 +IN GND AD8208 4 2 7 NC TOP VIEW A1 3 6 VS (Not to Scale) 5 A2 4 5 OUT
002 003
NC = NO CONNECT
08714- 08714- Figure 2. Pin Configuration Figure 3. Metallization Photograph
Table 3. Pin Function Descriptions Coordinates Pin No. Mnemonic X Y Description
1 −IN −322 +563 Inverting Input 2 GND −321 +208 Ground 3 A1 −321 −51 Preamplifier (A1) Output 4 A2 −321 −214 Buffer (A2) Input 5 OUT +321 −388 Buffer (A2) Output 6 VS +322 +363 Supply 7 NC No Connect 8 +IN +322 +561 Noninverting Input Rev. C | Page 6 of 20 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information High-Side Current Sensing with a Low-Side Switch High-Rail Current Sensing Low-Side Current Sensing 4 mA to 20 mA Current Loop Receiver Gain Adjustment Gains Less than 20 Gains Greater than 20 Gain Trim Internal Signal Overload Considerations Low-Pass Filtering High Line Current Sensing with LPF and Gain Adjustment Outline Dimensions Ordering Guide Automotive Products
