Datasheet SID1181KQ SCALE-iDriver (Power Integrations) - 5
| Manufacturer | Power Integrations |
| Description | Up to 8 A Single Channel 600 V / 650 V / 750 V IGBT/MOSFET Gate Drivers for Automotive Applications Providing Reinforced Galvanic Isolation |
| Pages / Page | 22 / 5 — SID1181KQ. SCALE-iDriver. VCE. VGXX. VISO. VEE. COM. Advanced Soft Shut … |
| File Format / Size | PDF / 1.5 Mb |
| Document Language | English |
SID1181KQ. SCALE-iDriver. VCE. VGXX. VISO. VEE. COM. Advanced Soft Shut Down (ASSD)
Model Line for this Datasheet
Text Version of Document
SID1181KQ SCALE-iDriver
V RVCE DVCE
VCE
V
VGXX
CE (IGBT) Signal C R RES RES CGXX Fault
VISO
VDES DSTO R
GH
GON Collector VCE SAT Gate RGINT tRES t RGOFF
GL
Emitter
VEE
VCE Pin Signal
COM

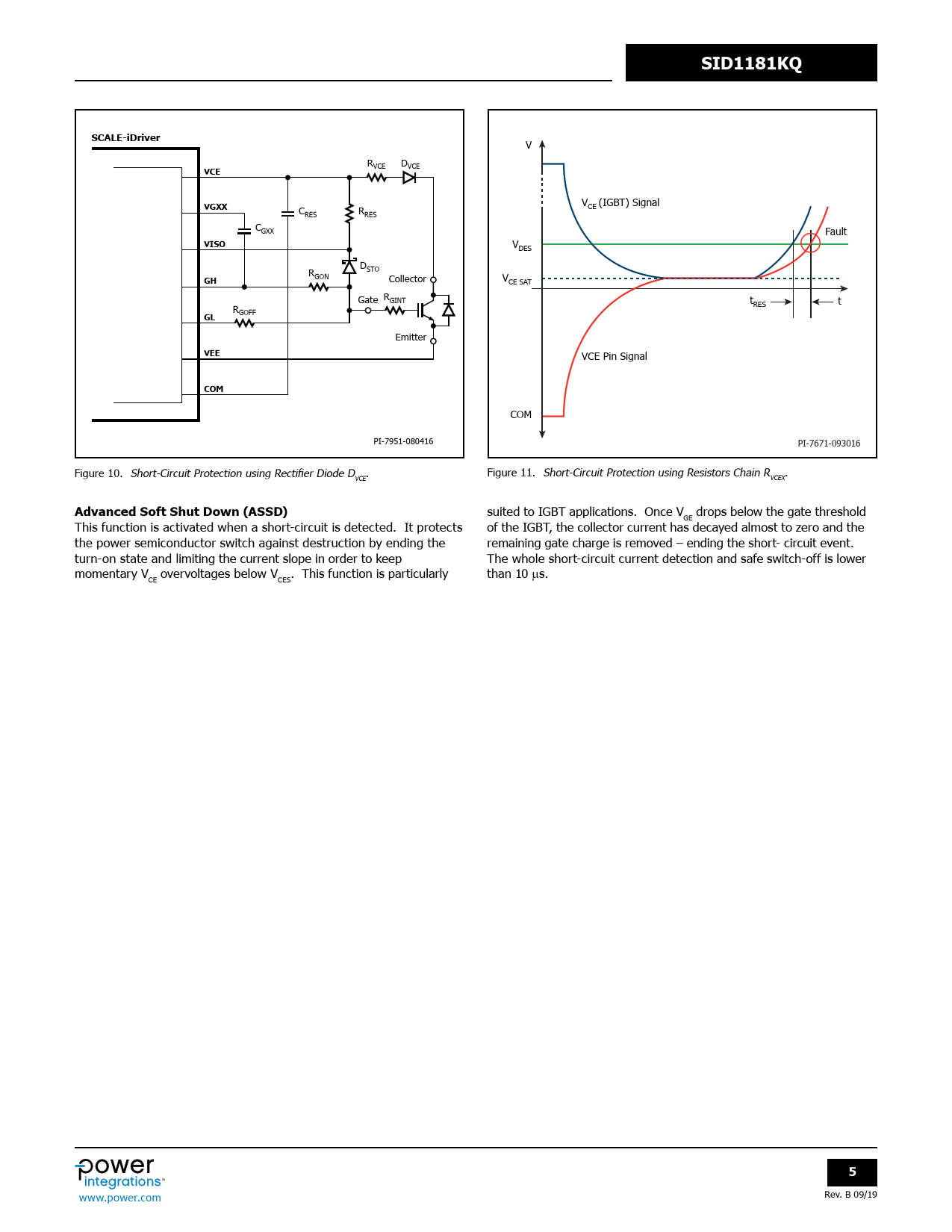

COM PI-7951-080416 PI-7671-093016 Figure 10. Short-Circuit Protection using Rectifier Diode D . Figure 11. Short-Circuit Protection using Resistors Chain R . VCE VCEX
Advanced Soft Shut Down (ASSD)
suited to IGBT applications. Once V drops below the gate threshold GE This function is activated when a short-circuit is detected. It protects of the IGBT, the col ector current has decayed almost to zero and the the power semiconductor switch against destruction by ending the remaining gate charge is removed ‒ ending the short- circuit event. turn-on state and limiting the current slope in order to keep The whole short-circuit current detection and safe switch-off is lower momentary V overvoltages below V . This function is particularly than 10 µs. CE CES
5
Rev. B 09/19 www.power.com Document Outline Product Highlights Description Product Portfolio Pin Functional Description SCALE-iDriver Functional Description Application Examples and Components Selection Power Dissipation and IC Junction Temperature Estimation Absolute Maximum Ratings Thermal Resistance Key Electrical Characteristics Typical Performance Characteristics eSOP-R16B Package Drawing MSL Table ESD and Latch-Up Table IEC 60664-1 Rating Table Electrical Characteristics (EMI) Table Regulatory Information Table Part Ordering Information
